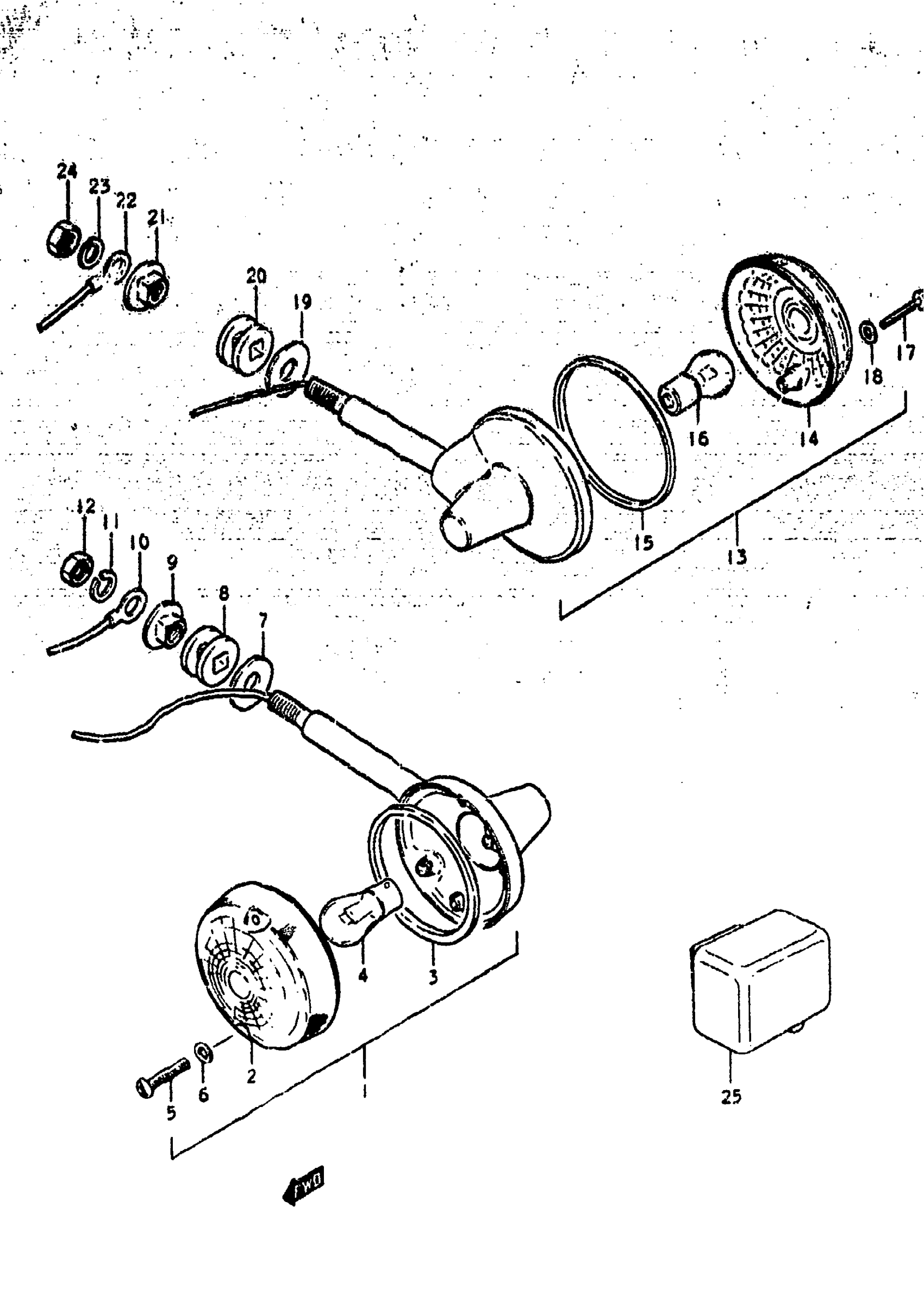

Suzuki GS425L (1979) TRUN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FR TR | Includes Item(s) 2 - 6 This part replaces 35601-44031.

35601-39370-999

Unavailable

2

LENS

35612-28620

$8.98

3

GASKET

35613-28620

$4.55

4

BULB | :12V, 25W

09471-12006

$3.98

5

SCREW This part replaces 35623-47610.

03211-04207

$1.49

6

GASKET

35627-43010

$2.28

7

WASHER This part replaces 35629-44000.

09160-10062

Unavailable

8

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

$6.37

9

SPACER

35695-32200

Unavailable

10

LEAD WIRE, FRONT GROUND This part replaces 36862-45000.

36660-33000

$4.52

11

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

12

NUT This part replaces 08310-12108.

08310-00107

$2.19

13

LAMP RR TURN SI | Includes Item(s) 14 - 18 This part replaces 35603-44230.

35603-32620-999

Unavailable

14

LENS

35612-28620

$8.98

15

GASKET

35613-28620

$4.55

16

BULB | 12V, 25W

09471-12006

$3.98

17

SCREW This part replaces 35623-47610.

03211-04207

$1.49

18

GASKET

35627-43010

$2.28

19

WASHER This part replaces 35629-44000.

09160-10062

Unavailable

20

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

$6.37

21

SPACER

35695-32200

Unavailable

22

LEAD WIRE, REAR EARTH

36862-44000

$5.50

23

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

24

NUT This part replaces 08310-12108.

08310-00107

$2.19

25

RELAY ASSY, TURNSIGNAL This part replaces 38610-45031.

38610-31X50

$80.15
