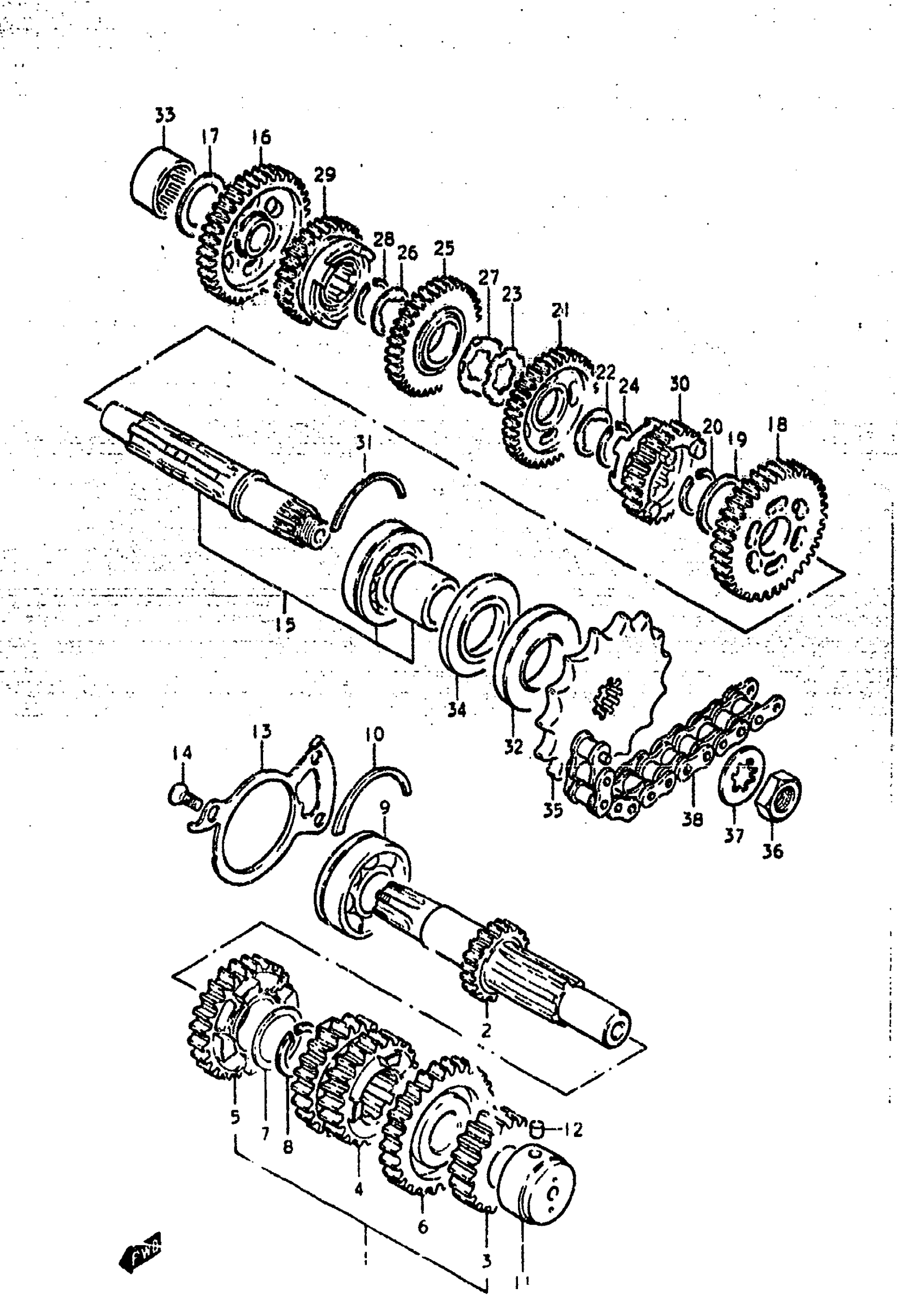

Suzuki GS425L (1979) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 8

24120-44003

Unavailable

2

COUNTERSHAFT | NT:13

24121-44000

Unavailable

3

GEAR, 2ND DRIVE | NT:18

24221-44001

Unavailable

4

GEAR, 3RD DRIVE | NT:21/24

24231-44001

Unavailable

5

GEAR, 5TH DRIVE | NT:26

24250-44001

Unavailable

6

GEAR, 6TH DRIVE | NT:27

24260-44000

Unavailable

7

WASHER, 5TH DRIVE This part replaces 08211-25341.

09181-25167

$3.12

8

GIRCLIP

09380-25010

$2.91

9

BEARING, LH This part replaces 09262-25051.

09262-25105

$68.10

10

C RING This part replaces 09390-62006.

09390-62012

$7.31

11

BEARING, LH (20X34X20) This part replaces 09263-20026.

09263-20025

Unavailable

12

PIN

04221-07129

$1.86

13

HOLDER, BEARING

24741-44000

Unavailable

14

SCREW This part replaces 02122-06168.

02122-06167

$1.49

15

DRIVESHAFT This part replaces 24100-44810.

24100-44811

Unavailable

16

GEAR, 1ST DRIVEN (NT:32) | NT:32 This part replaces 24310-44000.

24310-44001

Unavailable

17

WASHER

08211-20341

$2.80

18

GEAR, 2ND DRIVEN | NT:32

24320-44002

Unavailable

19

WASHER

08211-25321

$3.27

20

CIRCLIP

09380-25010

$2.91

21

GEAR, 3RD DRIVEN (NT:29) | NT:29 This part replaces 24331-44002.

24331-44003

Unavailable

22

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

23

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

24

CIRCLIP

09380-25010

$2.91

25

GEAR, 4TH DRIVEN (NT:27) | NT:27 This part replaces 24341-44002.

24341-44003

Unavailable

26

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

27

LOCK WASHER

09169-25001

$2.70

28

CIRCLIP

09380-25010

$2.91

29

GEAR, 5TH DRIVEN (NT:25) | NT:25 This part replaces 24351-44001.

24351-20F02

Unavailable

30

GEAR, 6TH DRIVEN (NT:23) | NT:23 This part replaces 24361-44001.

24361-44010

Unavailable

31

C RING This part replaces 09390-62006.

09390-62012

$7.31

32

OIL SEAL (32x62x70-1) This part replaces 09283-32014.

09283-32015

$15.74

33

BEARING, RH (20X34X17) This part replaces 09263-20028.

09263-20027

Unavailable

34

OIL SEAL

09282-32002

$11.65

35

SPROCKET, ENGINE | NT:16

27511-44000

Unavailable

36

NUT

09140-20009

Unavailable

37

WASHER (25.3X41.6X1) This part replaces 09167-25011.

09167-25019

$2.19

38

CHAIN,DRIVE | 104L This part replaces 27600-44030.

27600-44X01

Unavailable

29

GEAR, 5TH DRIVEN (NT:25) | NT:25 This part replaces 24351-44001.

24351-20F02

Unavailable

30

GEAR, 6TH DRIVEN (NT:23) | NT:23 This part replaces 24361-44001.

24361-44010

Unavailable

31

C RING This part replaces 09390-62006.

09390-62012

$7.31

32

OIL SEAL (32x62x70-1) This part replaces 09283-32014.

09283-32015

$15.74

33

BEARING, RH (20X34X17) This part replaces 09263-20028.

09263-20027

Unavailable

34

OIL SEAL

09282-32002

$11.65

35

SPROCKET, ENGINE | NT:16

27511-44000

Unavailable

36

NUT

09140-20009

Unavailable

37

WASHER (25.3X41.6X1) This part replaces 09167-25011.

09167-25019

$2.19

38

CHAIN,DRIVE | 104L This part replaces 27600-44030.

27600-44X01

Unavailable
