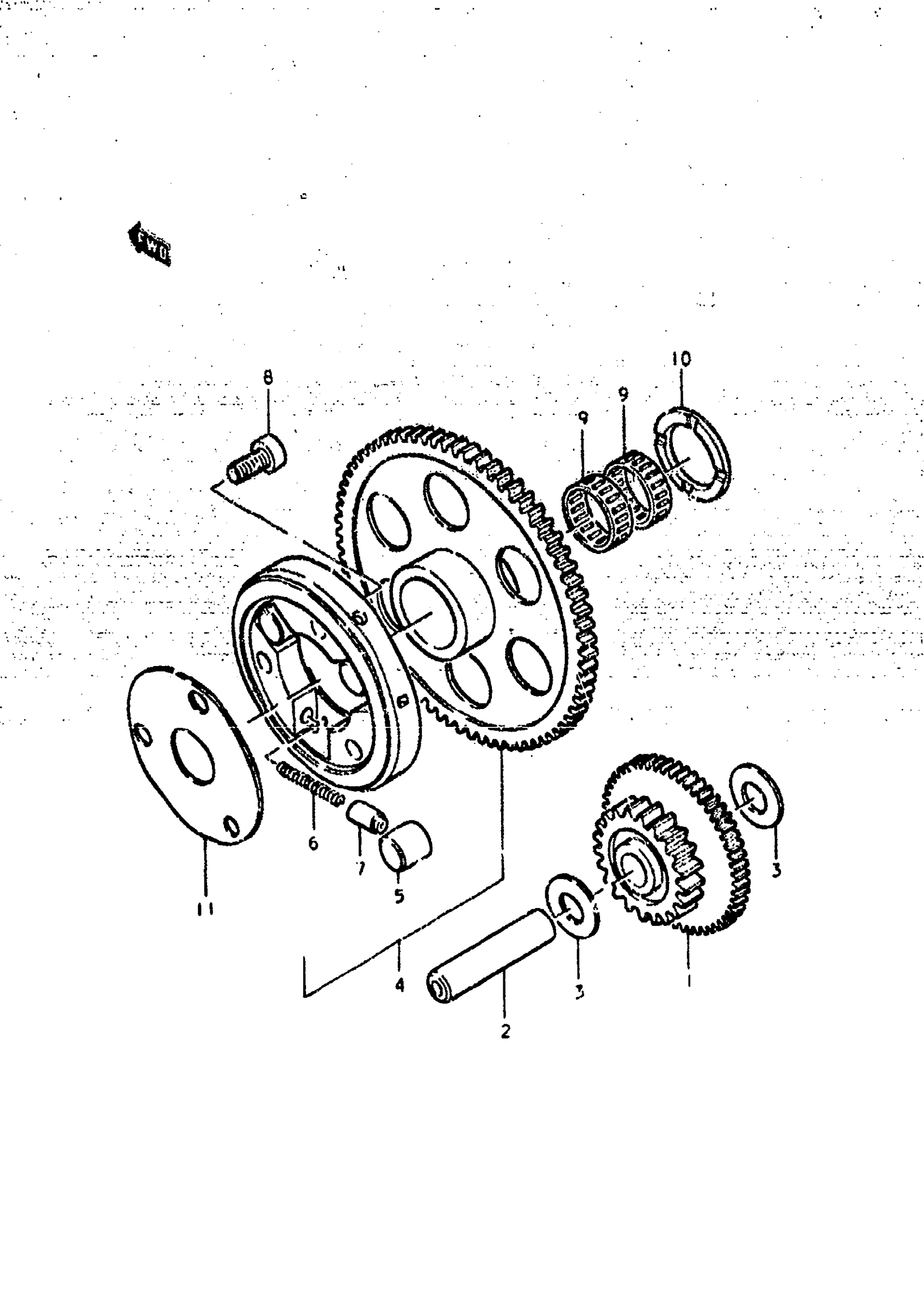

Suzuki GS425L (1979) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, STARTER IDLE | NT:41/23

12611-44000

Unavailable

2

PIN

09206-13003

$15.70

3

WASHER | 13.3x25x0.85

09160-13003

$1.99

4

STARTER CLUTCH SET | Includes Item(s) 5 - 7

12600-44810

Unavailable

5

ROLLER

09261-15001

$3.29

6

SPRING

09440-04015

$2.22

7

PIECE, PUSH

12633-31000

$8.77

8

BOLT This part replaces 09106-08006.

07130-0816A

$3.16

9

BEARING

09263-25020

$16.65

10

WASHER,25X38X1 | 25x38x2.5 This part replaces 09160-25019.

09160-25080

$19.37

11

SHIM

12649-45000

$9.17
