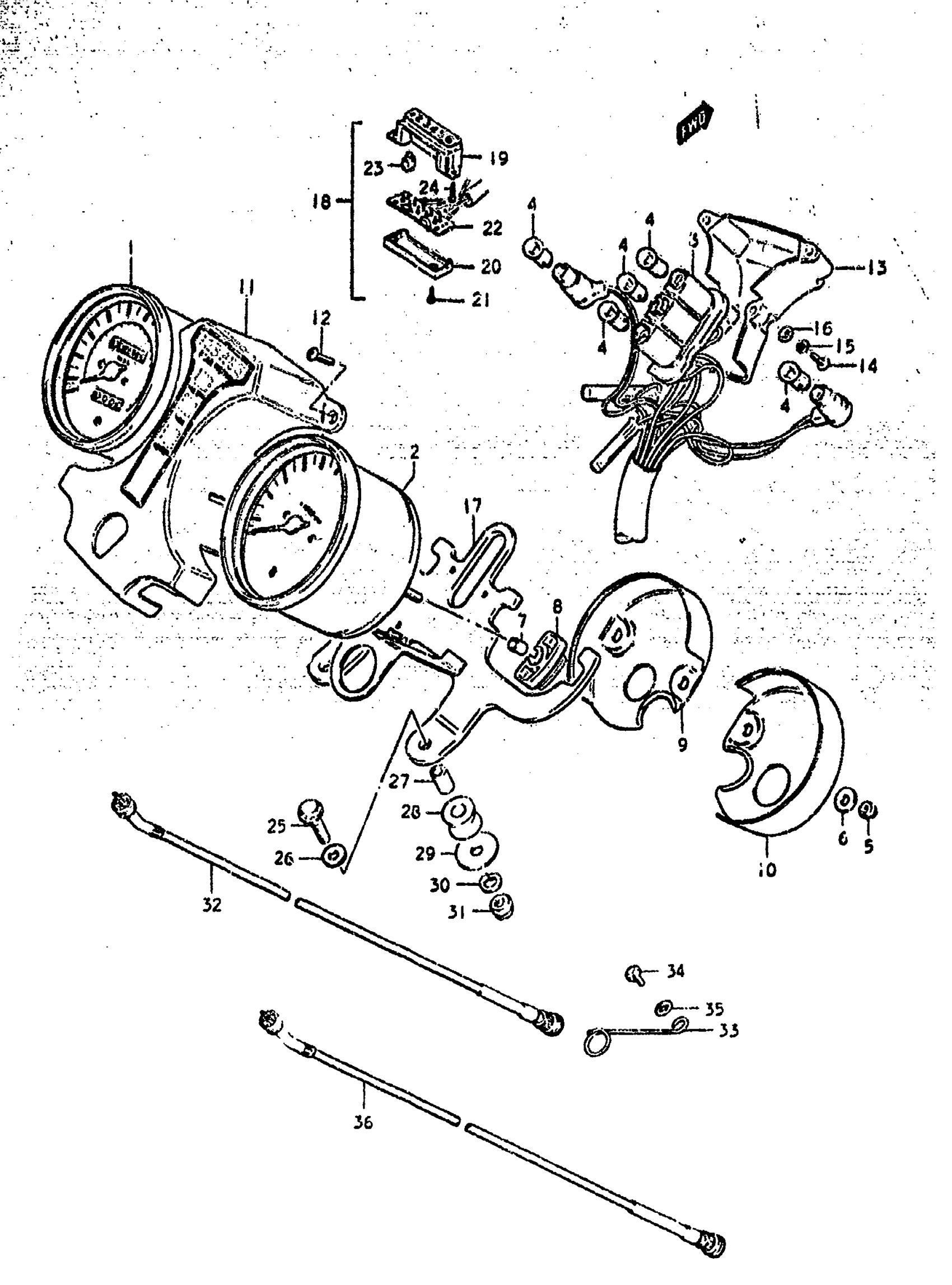

Suzuki GS425L (1979) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 24 This part replaces 34100-44013.

34100-44016

Unavailable

1

SPEEDOMETER This part replaces 34110-44012.

34110-37410

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 34210-44614.

34210-44001

Unavailable

3

SOCKET

34173-44000

Unavailable

4

BULB | 12V, 3.4W

09471-12001

$1.65

5

NUT This part replaces 08313-11057.

08313-1005A

$1.93

6

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

7

SPACER

34972-44022

Unavailable

8

CUSHION

34955-44020

Unavailable

9

UNDER COVER, SPEEDOMETER

34961-36322

Unavailable

10

UNDER COVER, TACHOMETER

34962-36322

Unavailable

11

CASE, PLLCT BULB

36380-44000

Unavailable

12

SCREW

36387-44000

Unavailable

13

COVER, PILOT CASE UNDER

36382-44000

Unavailable

14

SCREW

09125-04011

Unavailable

15

LOCK WASHER

34997-44020

Unavailable

16

WASHER This part replaces 09160-04006.

08322-0104A

$1.91

17

BRACKET

34950-44022

Unavailable

18

INDICATOR, GEAR POSLTIOR

36450-44001

Unavailable

19

CASE, GEAR INDICATOR

36452-45100

Unavailable

20

COVER, LOWER

36454-45100

Unavailable

21

NO DESCRIPTION AVAILABLE This part replaces 36456-45100.

03511-03146

Unavailable

22

PIN BOARD

36453-44000

Unavailable

23

BULB

09471-12071

$7.20

24

SCREW

36457-45100

Unavailable

25

BOLT, REAR This part replaces 01107-06308.

01500-06307

$2.48

26

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

27

SPACER (6.1X8X15.5) This part replaces 09180-06040.

09180-06251

$2.44

28

CUSHION

34956-15100

$3.71

29

WASHER This part replaces 09160-06007.

09160-06084

$1.78

30

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

31

.NUT This part replaces 08310-11068.

08310-00067

$2.13

32

CABLE ASSY,ODOM This part replaces 34910-49010.

34910-24501

Unavailable

33

CLAMP

34938-37000

$3.73

34

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

35

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

36

CABLE,TACHOMETE This part replaces 34940-44034.

34940-37312

$51.10
