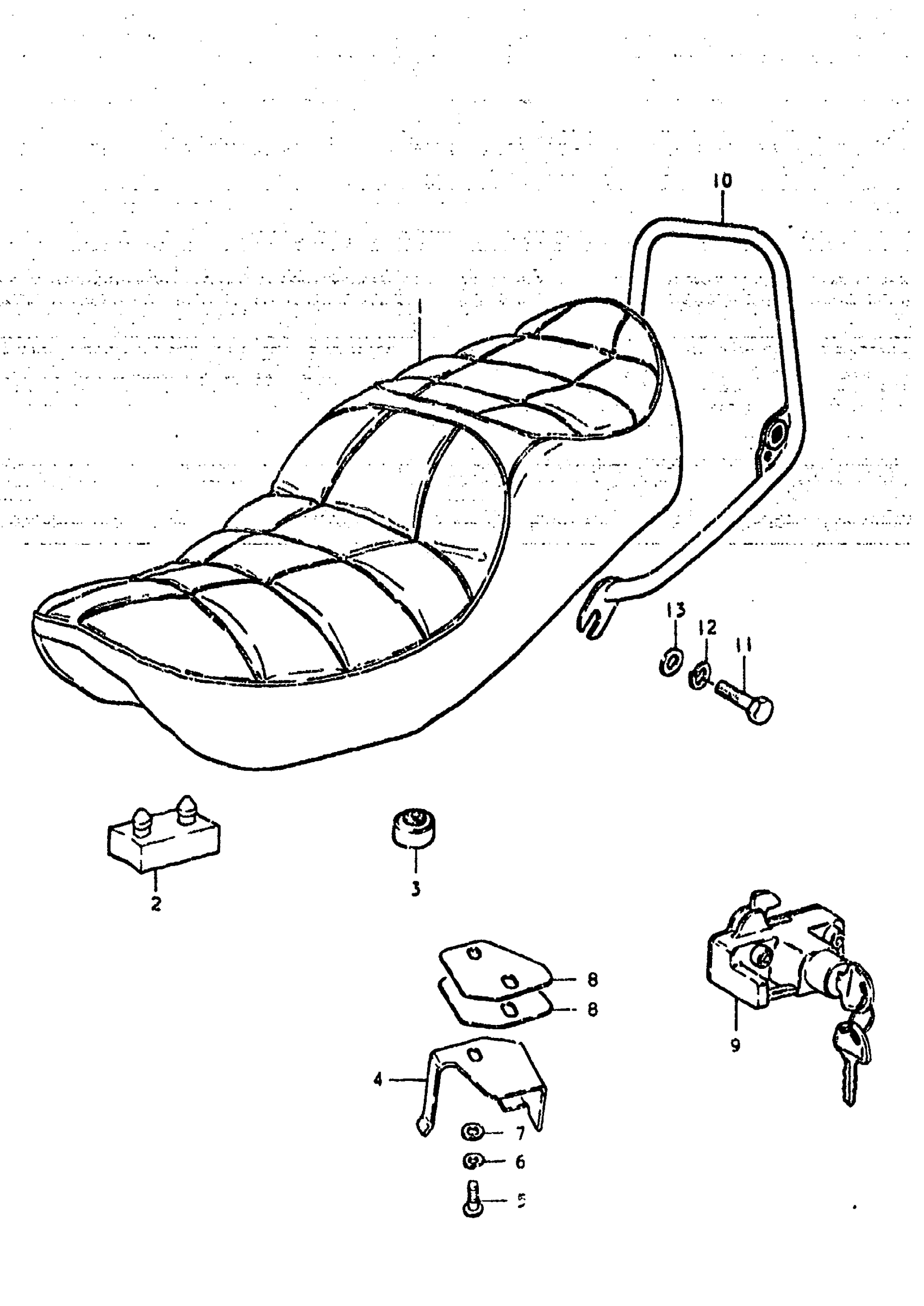

Suzuki GS425L (1979) SEAT Diagram

#

Description
Price

1

SEAT

45100-44200-40P

Unavailable

2

CUSHION

09321-08006

$2.90

3

CUSHION

09321-10001

$2.61

4

STRIKER, SEAT LOCK

45213-49100

Unavailable

5

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

WASHER

09160-06019

$1.49

8

PLATE

45217-49100

Unavailable

9

LOCK ASSY, SEAT

95700-49811

Unavailable

10

HANDLE, PILLION RIDER

46210-44202

Unavailable

11

BOLT

01204-08257

$1.96

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

WASHER This part replaces 08322-11088.

08322-01087

$2.13
