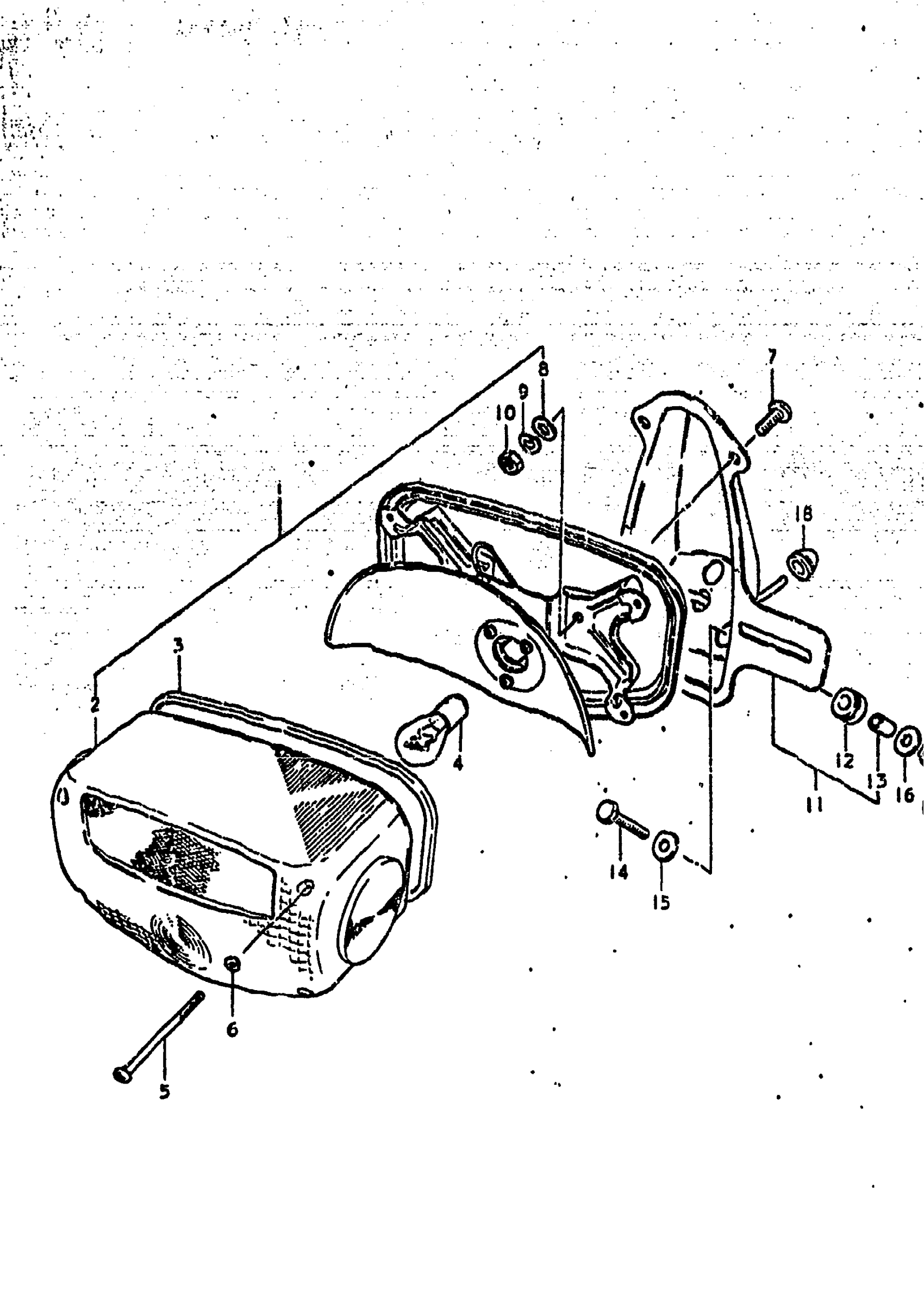

Suzuki GS425L (1979) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP UNIT, REAR COMBINATION | Includes Item(s) 2 - 10

35720-45210

Unavailable

2

LENS,RR COMBI L This part replaces 35712-45012.

35712-45013

Unavailable

3

GASKET

35713-45010

Unavailable

4

BULB | 12V, 23/8W

09471-12035

$4.49

5

SCREW 4X55 This part replaces 09125-04002.

02112-04558

$1.65

6

GASKET

35627-43010

$2.28

7

SCREW This part replaces 02112-06128.

02112-06127

$1.84

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

.NUT This part replaces 08310-11068.

08310-00067

$2.13

11

BRACKET UNIT | Includes Item(s) 12 - 13

35730-45210

Unavailable

12

CUSHION

35765-22210

$3.84

13

SPACER This part replaces 35766-22210.

35766-37120

Unavailable

14

BOLT This part replaces 01107-06258.

01500-06257

$1.97

15

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13

17

.NUT This part replaces 08310-11068.

08310-00067

$2.13

18

GROMMET

09308-07004

$2.36
