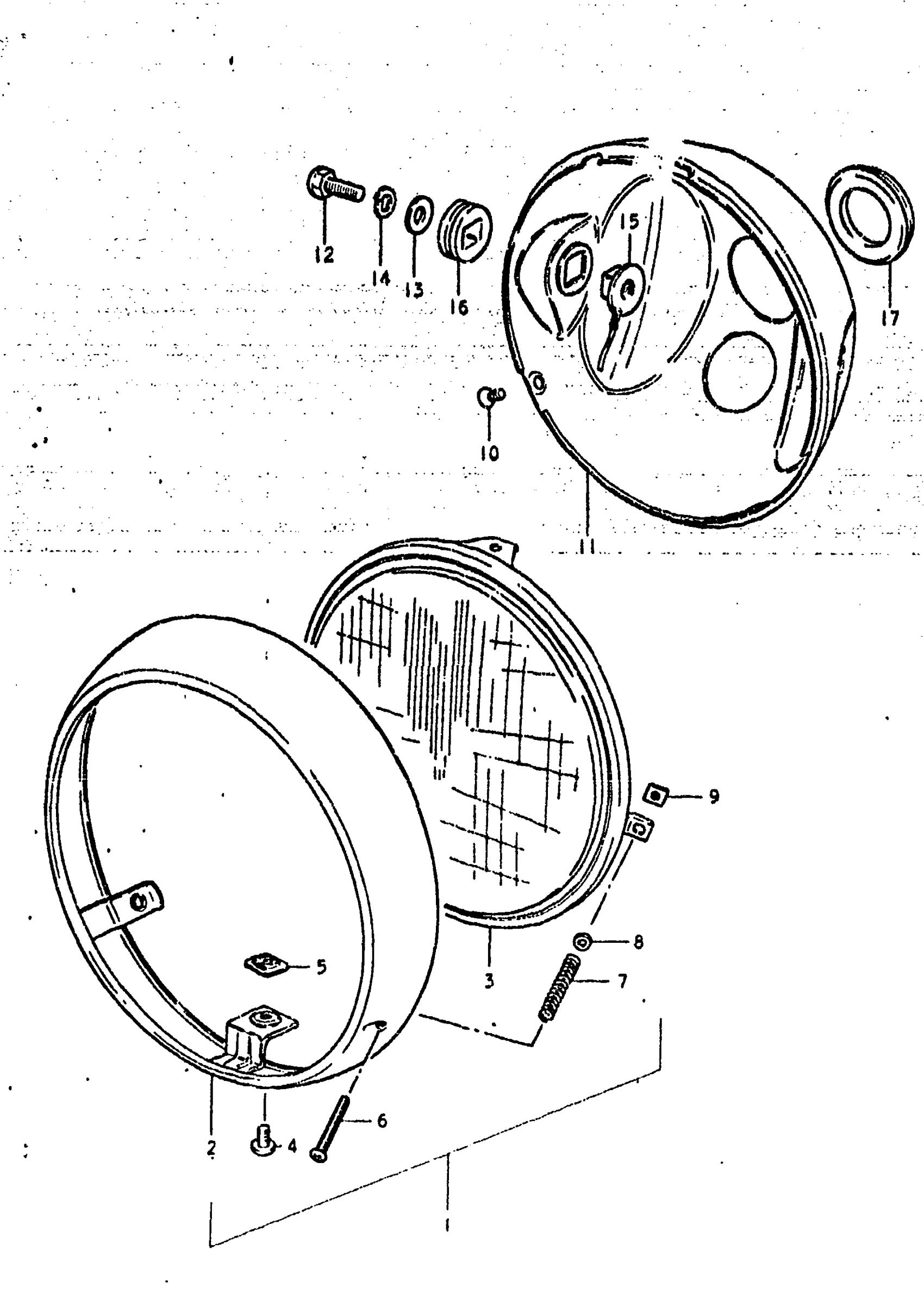

Suzuki GS425L (1979) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY * | Includes Item(s) 2 - 9

35100-44230

Unavailable

2

RIM This part replaces 35111-45230.

35111-45231

Unavailable

3

UNIT, SEALD BEAM

35121-44230

Unavailable

4

SCREW This part replaces 02112-05088.

02112-05087

$1.49

5

NUT

35155-48510

$2.28

6

SCREW This part replaces 35151-48510.

35151-45230

Unavailable

7

SPRING This part replaces 35154-45230.

35154-48510

Unavailable

8

WASHER This part replaces 35157-48510.

35157-27630

$3.25

9

NUT This part replaces 35152-48510.

35135-45600

$3.65

10

SCREW This part replaces 02132-05108.

02122-05107

$1.49

11

HOUSING, HEADLAMP

51810-33600

Unavailable

12

BOLT

01204-08207

$2.30

13

WASHER This part replaces 08322-11088.

08322-01087

$2.13

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

15

SPACER,HEADLAMP This part replaces 51821-36200.

51821-36210

$6.07

16

CUSHION,HEADLAM This part replaces 51827-27302.

51827-27303

$3.66

17

GROMMET

51845-31031

$4.52
