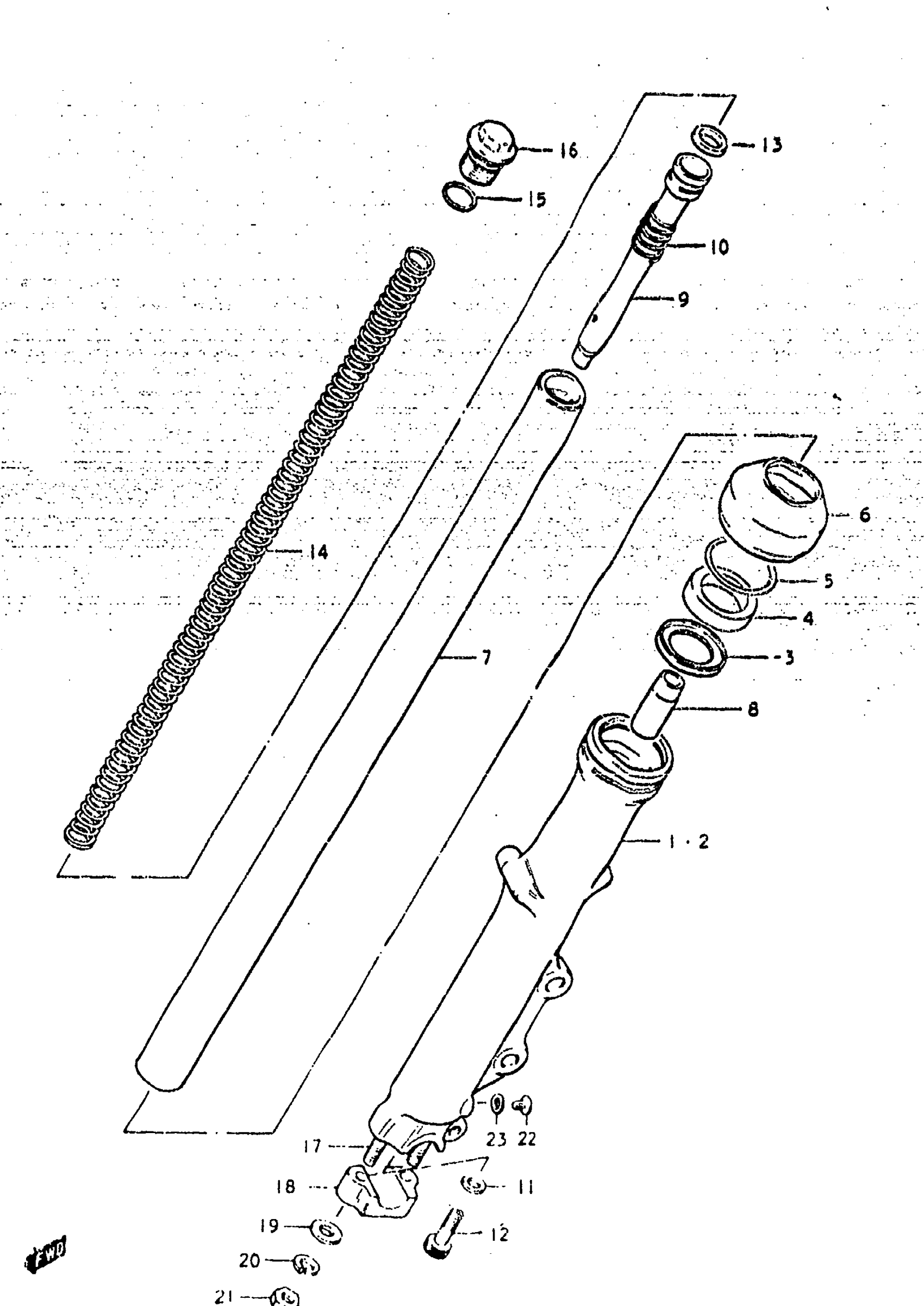

Suzuki GS425L (1979) FRONT FORK Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | TO: 51103-44021 This part replaces 51103-44200.

51103-44201

Unavailable

0

DUMPER ASSY, LH | USE WITH 54740-18410; Includes Item(s) 1 - 23

51104-44200

Unavailable

1

OUTER TUBE, RH | TO: 51130-44033 This part replaces 51130-44032.

51130-44033

Unavailable

2

OUTER TUBE, LH | USE WITH 54740-18410

51140-44031

Unavailable

3

SPACER, SEAL

51168-44030

$5.22

4

OIL SEAL This part replaces 51153-44031.

51153-02B00

$20.06

5

RING, OIL SEAL STOPPER This part replaces 51156-33130.

51156-02B00

$5.36

6

DUST SEAL This part replaces 51571-33131.

51571-37310

$20.15

7

INNER TUBE

51110-44200

Unavailable

8

PIECE, OIL LOCK

51195-44030

Unavailable

9

CYLINDER This part replaces 51146-44031.

51146-38300

Unavailable

10

SPRING, REBOUND

51177-36030

Unavailable

11

O RING This part replaces 51148-31030.

51148-36011

$3.56

12

BOLT

51147-48130

$4.34

13

RING, PISTON

51196-33130

$8.12

14

SPRING

51171-44200

Unavailable

15

O RING

51181-31030

$4.37

16

BOLT

51351-33130

Unavailable

17

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.03

18

HOLDER, AXLE

51132-31030

Unavailable

19

WASHER This part replaces 08322-21088.

08322-01087

$2.13

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

22

SCREW This part replaces 02111-04067.

02112-0406B

$1.55

23

GASKET

51183-33030

Unavailable
