1979 Suzuki GS425L Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1979 Suzuki GS425L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

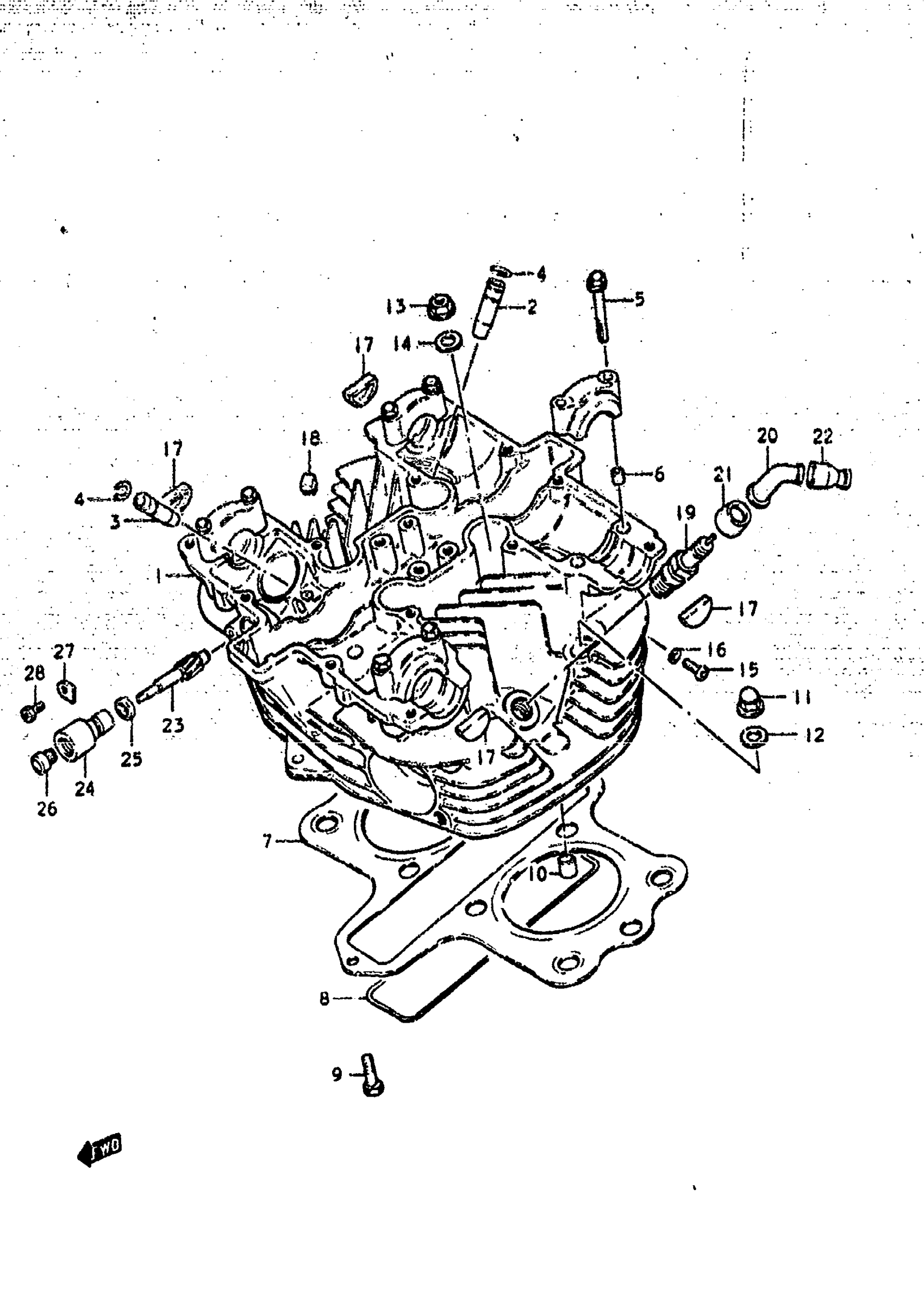

1979 Suzuki GS425L Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD SET | Includes Item(s) 2 - 6

11100-44813

1
Out of stock

2

GUIDE, INTAKE VALVE

11115-45740

2
Out of stock

3

GUIDE, EXHAUST VALVE

11116-45740

2
Out of stock

4

RING, VALVE GUIDE

09381-10003

4
Out of stock

5

BOLT (6X39)

09103-06026

8
Out of stock

6

PIN

09206-08001

8
Out of stock

7

GASKET,CYLINDER This part replaces 11141-44052.

11141-44053

1
Out of stock

8

O RING

09280-99003

1
Out of stock

9

BOLT This part replaces 01517-06308.

01550-06307

1
Out of stock

10

PIN

04211-11189

2
Out of stock

11

NUT

09159-10026

4
Out of stock

12

GASKET

09168-10017

4
Out of stock

13

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

4
Out of stock

14

WASHER | 10.5x22x2.3

09160-10039

4
Out of stock

15

SCREW This part replaces 02112-05208.

02112-05207

2
Out of stock

16

GASKET

09168-05010

2
Out of stock

17

PLUG, CYLINDER HEAD SIDE

09241-23002

4
Out of stock

18

PAD, RUBBER This part replaces 11152-45000.

11152-38A00

10
Out of stock

19

SPARK PLUG | NGK, B-8ES

09482-00091

2
Out of stock

19

SPARK PLUG W24E | ND, W24ES This part replaces 09482-00092.

09482-00247-111

2
Out of stock

20

CAP, SPARK PLUG

33510-43010

2
Out of stock

21

SEAL, SPARK PLUG

33541-69010

2
Out of stock

22

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

2
Out of stock

23

GEAR, TACHO. DRIVEN (NT:10) | NT:10 This part replaces 26431-45001.

26431-45002

1
Out of stock

24

SLEEVE This part replaces 26441-45000.

26441-49000

1
Out of stock

25

SEAL BAND

26451-45000

1
Out of stock

26

OIL SEAL This part replaces 09289-05007.

09289-05008

1
Out of stock

27

PLATE, GEAR SLEEVE

26449-33000

1
Out of stock

28

SCREW

09128-05101

1
Out of stock
