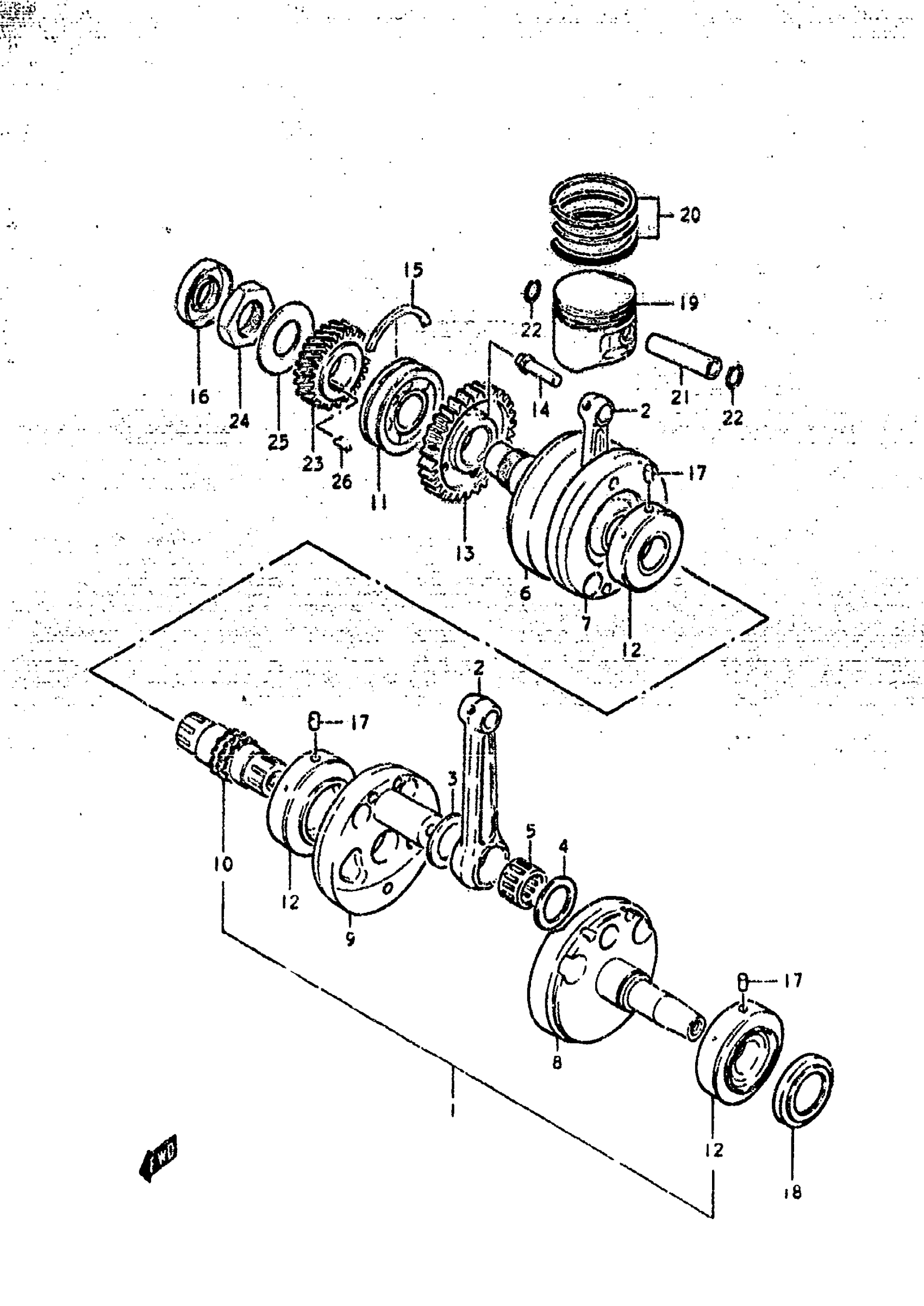

Suzuki GS425L (1979) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET | Includes Item(s) 2 - 14

12200-44003

Unavailable

2

ROD, CONNECTING

12161-44001

Unavailable

3

WASHER | 28x48x2

09160-28009

Unavailable

4

WASHER | 28x48x1

09160-28010

Unavailable

5

BEARING

09263-28010

Unavailable

6

CRANKSHAFT, RH

12220-44001

Unavailable

7

WEB, RH

12230-44002

Unavailable

8

CRANKSHAFT, LH

12261-44001

Unavailable

9

WEB, LH

12230-44002

Unavailable

10

SHAFT, TIMING CHAIN DRIVE

12281-44000

Unavailable

11

BEARING

09262-30033

Unavailable

12

BEARING This part replaces 09264-32002.

09264-32009

$201.55

13

GEAR, CRANK BALANCER DRIVE | NT:46

12661-44001

Unavailable

14

PIN

09209-10014

Unavailable

15

C RING

09390-72004

Unavailable

16

OIL SEAL, RH

09283-25062

Unavailable

17

PIN

04221-07129

$1.86

18

OIL SEAL, STARTER CLUTCH GEAR | 48x60x8 This part replaces 09289-48001.

09289-48002

$10.77

19

PISTON

12111-45100

Unavailable

19

PISTON | OS:0.5

12111-45100-050

Unavailable

19

PISTON | OS:1.0

12111-45100-100

Unavailable

20

PISTON RING SET

12140-45100

Unavailable

20

PISTON RING SET | OS:0.5

12140-45100-050

Unavailable

20

PISTON RING SET | OS:1.0

12140-45100-100

Unavailable

21

PIN, PISTON

12151-29001

$13.92

22

SNAP RING This part replaces 09381-16002.

09381-16001

$1.67

23

GEAR, PRIMARY DRIVE | NT:28

21111-44000

Unavailable

24

NUT This part replaces 09140-28001.

09140-28003

$6.15

25

WASHER

09164-28001

Unavailable

26

KEY

08341-31059

$2.48
