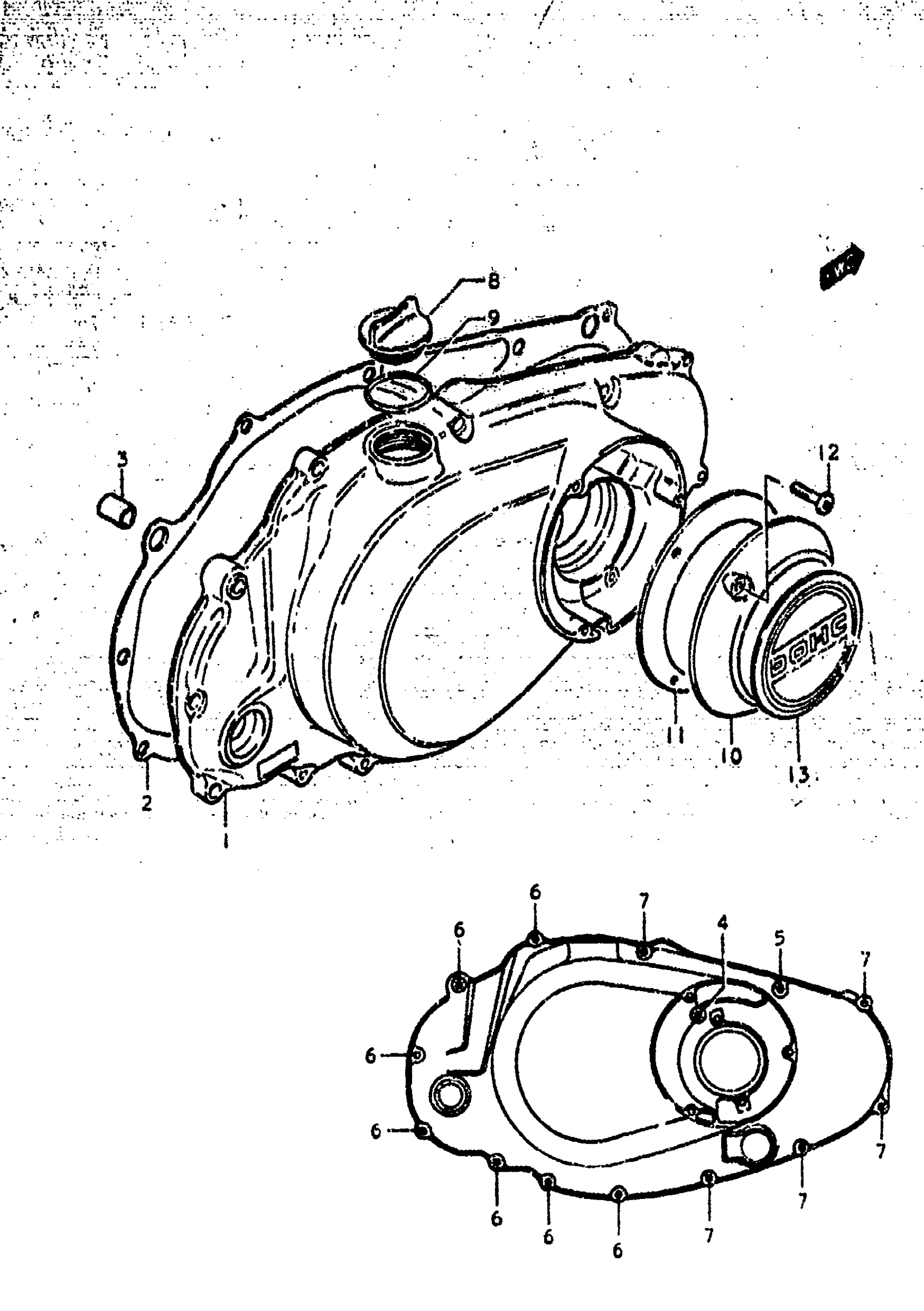

Suzuki GS425L (1979) CRANKCASE RH COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-44001

Unavailable

2

GASKET,CLUTCH C This part replaces 11482-44000.

11482-44001

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06608.

02112-06607

$2.57

5

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

6

SCREW This part replaces 02112-06358.

02112-06357

$1.78

7

SCREW This part replaces 02112-06258.

02112-06257

$1.78

8

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

$10.15

9

O RING

09280-32005

$1.99

10

COVER, CONTACT BREAKER This part replaces 11381-44001.

11381-44003

Unavailable

11

GASKET This part replaces 11491-44000.

11491-44001

Unavailable

12

SCREW This part replaces 02112-05208.

02112-05207

$1.97

13

EMBLEM | "DOHC"

68235-45200

Unavailable
