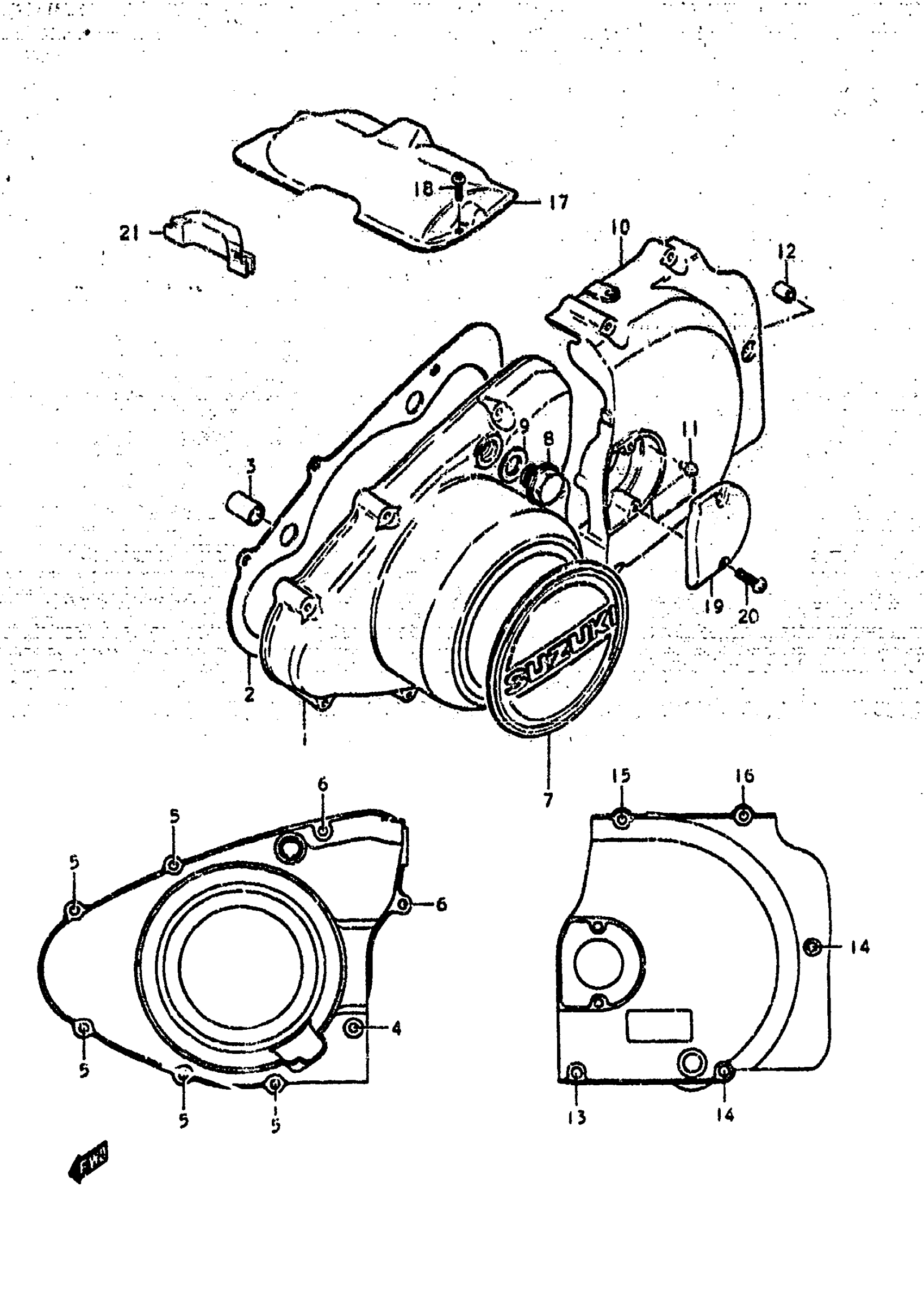

Suzuki GS425L (1979) CRANKCASE LH COVER Diagram

#

Description
Price

1

COVER, GENERATOR

11351-44000

Unavailable

2

GASKET,MAGNETO This part replaces 11483-44000.

11483-44001

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

5

SCREW This part replaces 02112-06358.

02112-06357

$1.78

6

SCREW This part replaces 02112-06308.

02112-06307

$1.97

7

EMBLEM

68233-45200

$18.50

8

PLUG This part replaces 09247-14012.

09247-14026

$3.76

9

GASKET

09168-14004

$1.83

10

COVER, ENGINE SPROCKET | Includes Item(s) 11

11300-44820

Unavailable

11

GREASE NIPPLE

08351-11009

$7.51

12

PIN

04211-09129

$1.65

13

SCREW This part replaces 02112-06658.

02112-06657

$2.62

14

SCREW This part replaces 02112-06608.

02112-06607

$2.57

15

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

16

SCREW This part replaces 02112-06308.

02112-06307

$1.97

17

NO DESCRIPTION AVAILABLE This part replaces 11382-44001.

11382-44002

Unavailable

18

SCREW This part replaces 02112-05088.

02112-05087

$1.49

19

CAP, CLUTCH RELEASE

11387-44000

Unavailable

20

SCREW This part replaces 02112-05168.

02112-05167

$1.97

21

GROMMET

11498-44000

Unavailable
