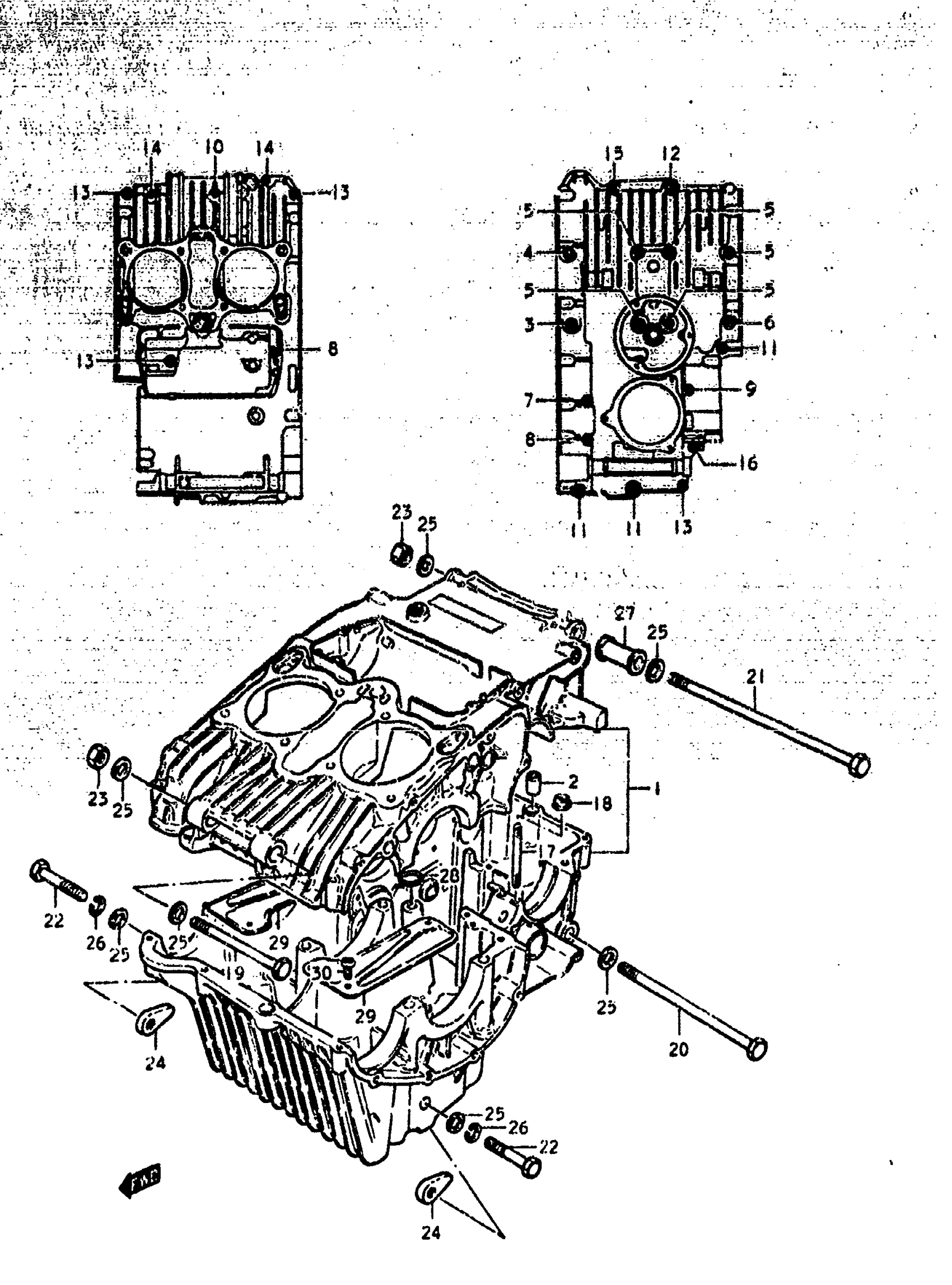

Suzuki GS425L (1979) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 18

11300-44812

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT, UPPER | 8x115 This part replaces 09103-08025.

09103-08098

$3.29

4

BOLT This part replaces 01517-08958.

01550-08957

$5.37

5

BOLT This part replaces 01517-08908.

01550-08907

$5.18

6

BOLT This part replaces 01517-08858.

01550-0885B

Unavailable

7

BOLT (6X115) | 6x115 This part replaces 09103-06027.

09103-06052

$4.68

8

BOLT This part replaces 01517-06908.

01550-06907

$4.60

9

BOLT This part replaces 01517-06708.

01550-06707

$4.30

10

BOLT This part replaces 01517-06658.

01550-06657

$4.17

11

BOLT This part replaces 01517-06608.

01550-06607

$4.17

12

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

13

BOLT This part replaces 01517-06408.

01550-06407

$2.69

14

BOLT This part replaces 01517-06358.

01550-06357

$2.77

15

BOLT This part replaces 01517-06308.

01550-06307

$2.69

16

BOLT, MUF SPRT,RR This part replaces 01517-08458.

01550-08457

$4.00

17

BOLT,STUD This part replaces 01421-06408.

01421-0640A

$2.38

18

NUT This part replaces 08316-16068.

08319-31067

$2.03

19

BOLT 10X125 | 10x125 This part replaces 09100-10051.

09100-10274

$7.15

20

BOLT | 10x160 This part replaces 09100-10092.

41189-17X00

Unavailable

21

BOLT, ENGINE MOUNTING | 10x265

09100-10110

Unavailable

22

BOLT | 10x43 This part replaces 01107-10458.

01500-1045A

$3.04

23

NUT

09159-10011

$3.23

24

NUT

09159-10020

$5.18

25

WASHER This part replaces 08322-11108.

08322-01107

$2.15

26

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

27

SPACER (L:50) This part replaces 11610-45000.

11610-44010

Unavailable

28

O RING, OIL GALLERY This part replaces 09280-12005.

09280-12012

$4.64

29

PLATE, OIL SEPARATOR

11521-44000

Unavailable

30

SCREW This part replaces 02112-06088.

02112-06087

$1.49
