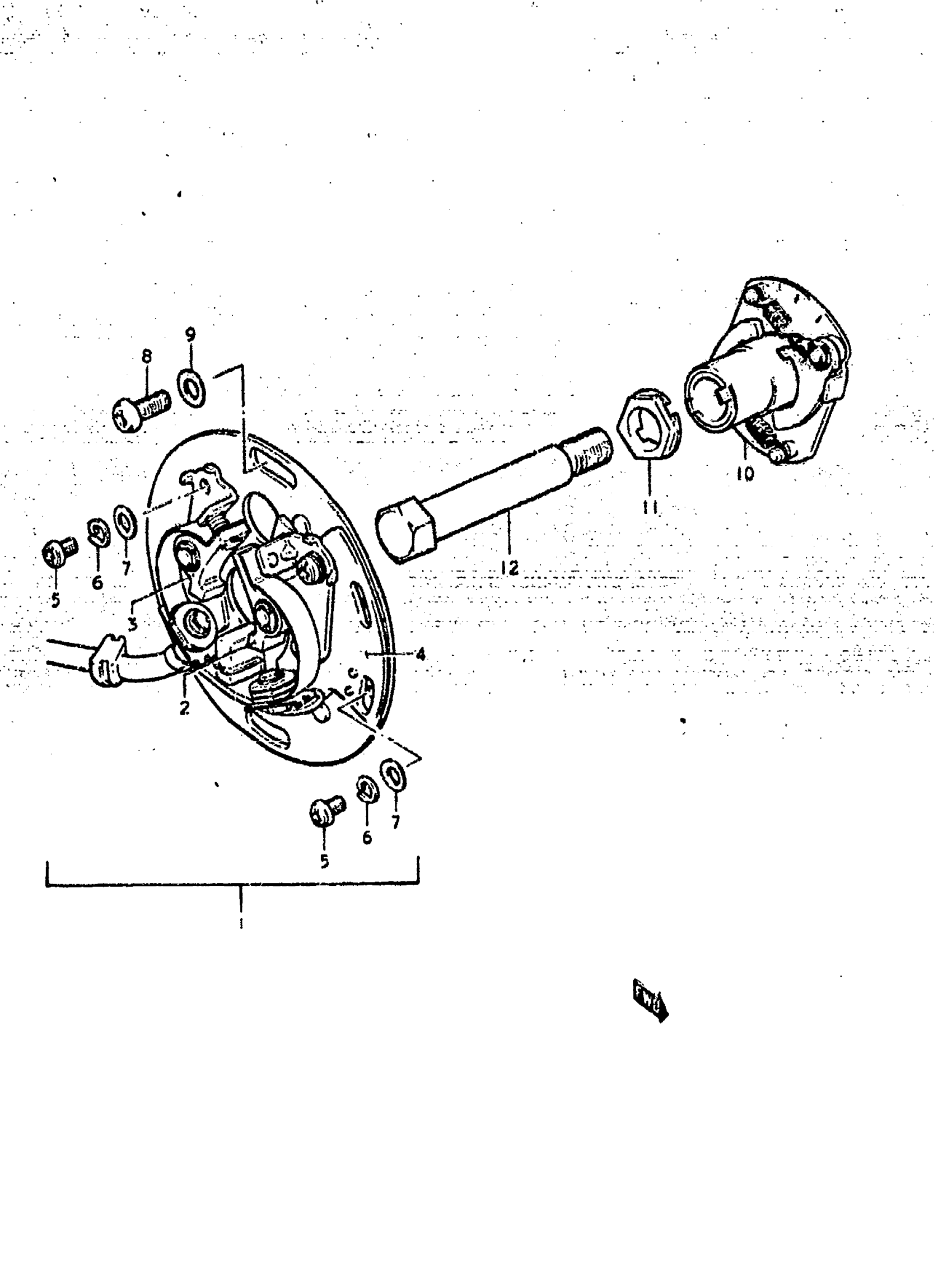

Suzuki GS425L (1979) CONTACT BRAKER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | ND; Includes Item(s) 2 - 7 This part replaces 33110-44020.

33110-44X51

Unavailable

2

POINT ASSY RH This part replaces 33140-45020.

33140-44110

Unavailable

3

POINT ASSY LH This part replaces 33160-45020.

33160-44110

Unavailable

4

PLATE, CONTACT POINT SHIFTING

33143-44020

Unavailable

5

SCREW

09125-04001

Unavailable

6

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

7

WASHER This part replaces 08322-21048.

08322-01047

$1.86

8

SCREW

09125-05024

$1.72

9

WASHER This part replaces 08322-11058.

08322-01057

$2.13

10

GOVERNOR ASSY, ADVANCE | ND

33120-44021

Unavailable

11

WASHER

33465-47000

Unavailable

12

BOLT This part replaces 01107-08608.

01500-0860B

$3.49
