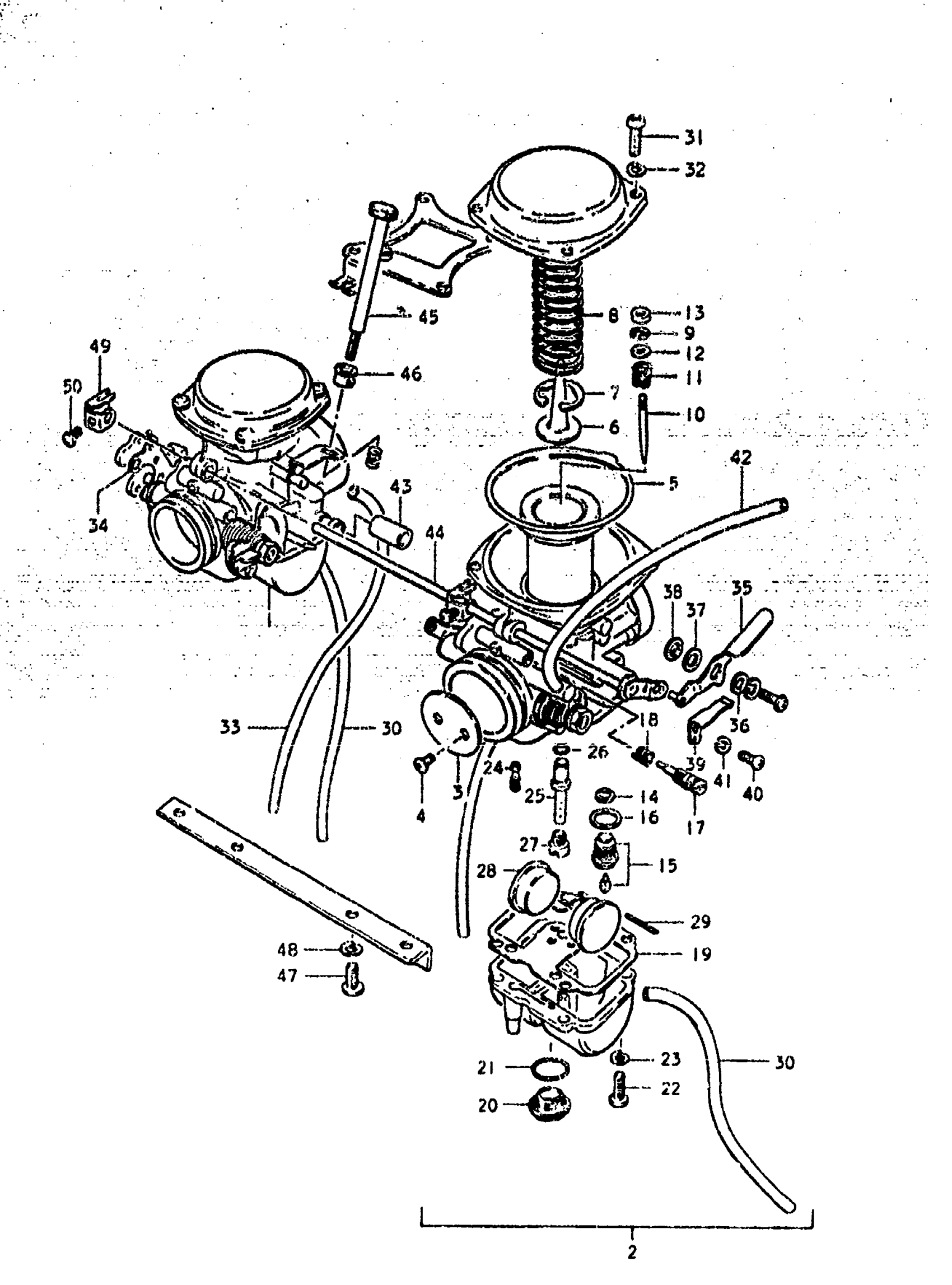

Suzuki GS425L (1979) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | Includes Item(s) 1 - 50

13200-44060

Unavailable

1

CARBURETOR ASSY, RH

13201-44060

Unavailable

2

CARBURETOR ASSY, LH

13202-44060

Unavailable

3

VALVE, THROTTLE | #135

13551-44010

Unavailable

4

SCREW This part replaces 02122-03088.

02122-0308A

Unavailable

5

DIAPHRAGM ASSY

13500-44030

Unavailable

6

HOLDER, GUIDE

13389-44030

Unavailable

7

E RING

13581-44030

$6.78

8

SPRING

13503-44030

Unavailable

9

E RING This part replaces 13394-44010.

13394-31210

$4.64

10

NEEDLE, JET | 4F24-3

13383-44030

Unavailable

11

SPRING

13388-44030

$8.12

12

WASHER

13382-44030

$3.71

13

RING

13387-44030

$5.83

14

FILTER This part replaces 13376-65010.

13376-19F00

$10.28

15

VALVE, NEEDLE

13370-44010

Unavailable

16

GASKET

13392-16600

$1.94

17

SCREW, PILOT AIR

13269-44030

Unavailable

18

SPRING

13268-44012

Unavailable

19

GASKET. FLOAT CHAMBER

13251-44012

Unavailable

20

PLUG, DRAIN

13247-32210

$15.23

21

O RING This part replaces 13246-44010.

13249-41310

$4.40

22

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

23

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

24

JET, PILOT | #20.0

09492-22004

Unavailable

25

NOZZLE, NEEDLE | Y-6

09494-00239

Unavailable

26

O RING, NOZZLE This part replaces 13295-31210.

09280-03003

$1.91

27

JET, MAIN (110) | #110 This part replaces 09491-22010.

09491-22013

$11.38

28

FLOAT

13252-31210

Unavailable

29

.PIN, FLOAT

13254-01010

$3.62

30

HOSE(4.5X8.5X60 This part replaces 13683-44010.

09355-45001-600

$9.48

31

SCREW This part replaces 02112-05168.

02112-05167

$1.97

32

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

33

HOSE

13683-45070

$11.80

34

GASKET

13436-44010

Unavailable

35

LEVER, STARTER | LH CARBURETOR

13413-44020

Unavailable

36

WASHER | LH CARBURETOR

13615-31630

Unavailable

37

WASHER | LH CARBURETOR

13615-44010

Unavailable

38

RING | LH CARBURETOR

13432-31210

Unavailable

39

PLATE, SPRING | LH CARBURETOR

13426-44010

Unavailable

40

SCREW | LH CARBURETOR This part replaces 02111-04067.

02112-0406B

$1.55

41

LOCK WASHER | LH CARBURETOR This part replaces 08321-21048.

08321-0104A

$1.84

42

HOSE(4.5X8.5X60 | LH CARBURETOR This part replaces 13683-31610.

09355-45001-600

$9.48

43

HOSE This part replaces 13683-10200.

13683-10201

Unavailable

44

SHAFT, STARTER

13410-44010

Unavailable

45

ADJUSTER, THROTTLE

13267-44010

Unavailable

46

BUSHING

13276-31210

Unavailable

47

SCREW This part replaces 02112-06128.

02112-06127

$1.84

48

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

49

LEVER

13422-44010

Unavailable

50

SCREW

13605-31210

$7.37
