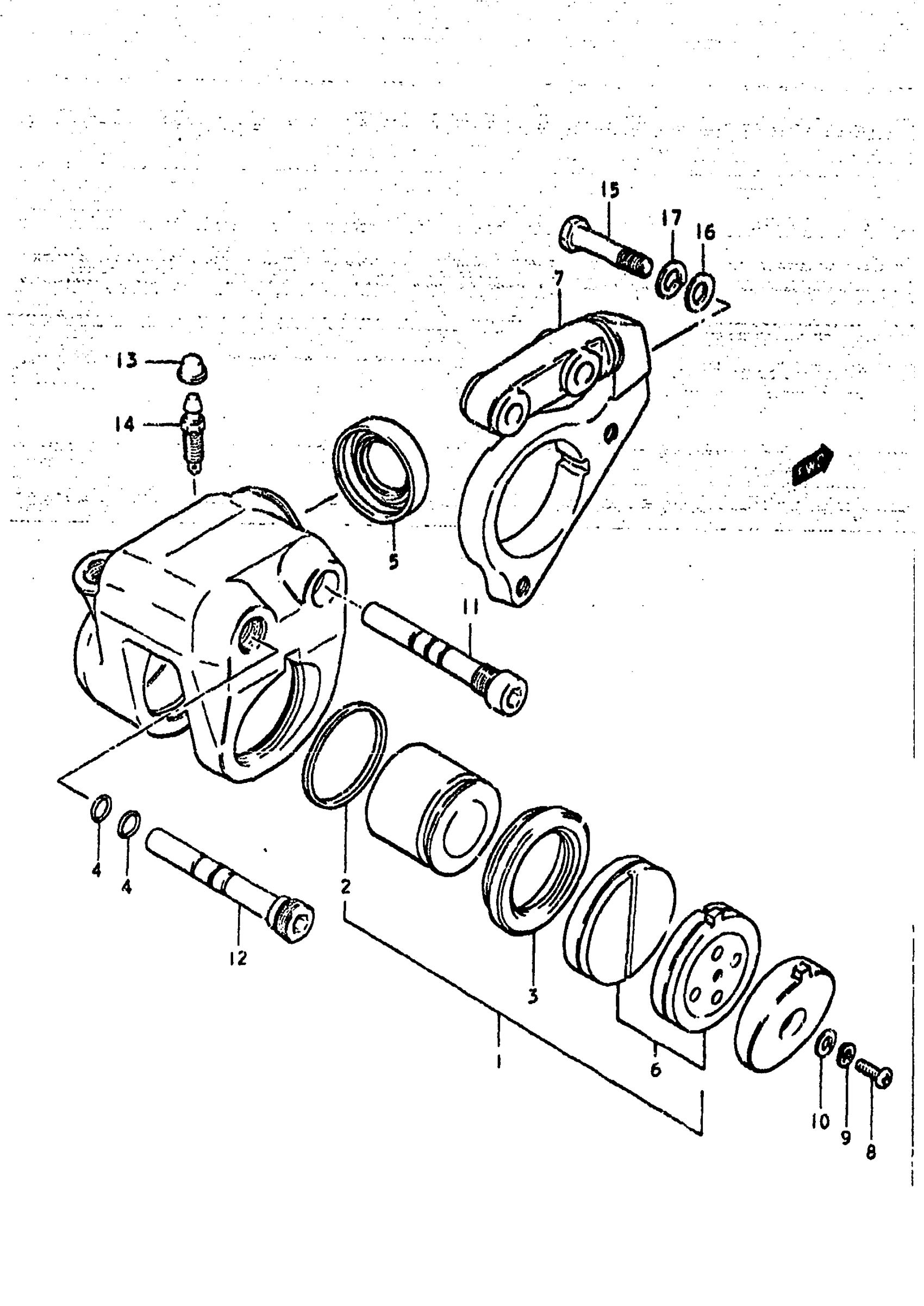

Suzuki GS425L (1979) CALIBERS Diagram

#

Description
Price

0

CALIPERS ASSY | ASCO; Includes Item(s) 1 - 14

59300-45022

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 59100-47870.

59100-47871

Unavailable

2

PISTON SEAL This part replaces 59307-45020.

59307-45021

Unavailable

3

BOOT, PLSTON

59308-45020

Unavailable

4

O RING

59111-34020

Unavailable

5

BOOT, HOLDER

59112-34020

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 59300-47850.

59300-47880

Unavailable

7

HOLDER, CALLPERS

59150-34020

Unavailable

8

SCREW

02112-05107

$1.49

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

10

WASHER This part replaces 08322-21058.

08322-01057

$2.13

11

AXLE, CALLPERS NO.1

59305-45020

Unavailable

12

AXLE, CALLPERS NO.2

59306-45020

Unavailable

13

CAP, BLEEDER This part replaces 52474-60020.

55156-66310

$5.17

14

BLEEDER

59121-34020

$13.35

15

BOLT (10X38) This part replaces 09104-10007.

09104-10029

$3.55

16

WASHER This part replaces 08322-21108.

08322-01107

$2.15

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84
