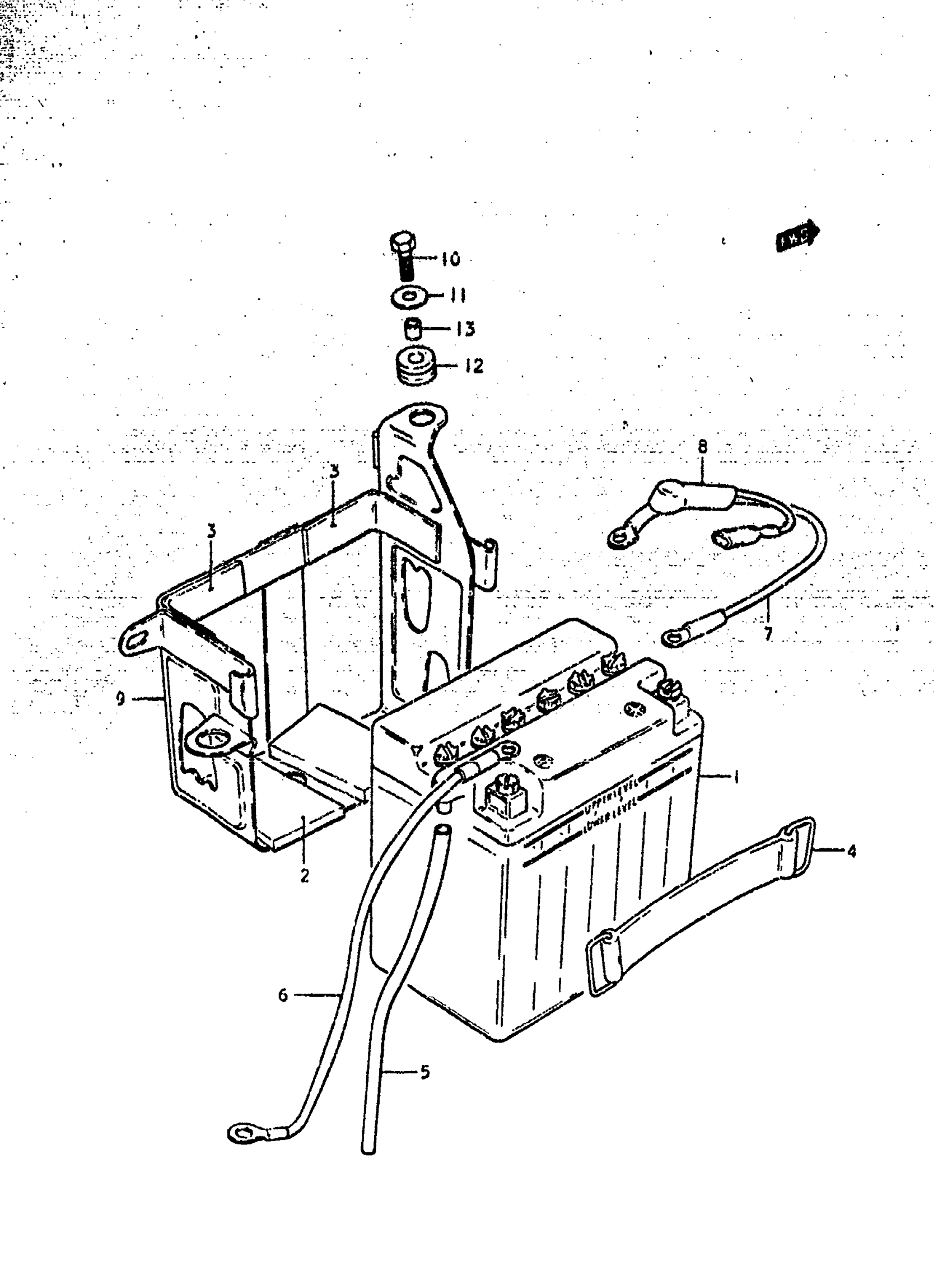

Suzuki GS425L (1979) BATTERY Diagram

#

Description
Price

1

BATTERY | 12V, 10AH

33610-44010

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 33651-25001.

94268-24A00

Unavailable

3

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.48

4

BAND

09462-00007

$4.11

5

HOSE,BATTERY EX This part replaces 33680-31003.

33680-16A11

$6.78

6

WIRE, BATT (-) This part replaces 33850-44000.

33860-44501

Unavailable

7

LEAD WIRE, (+) This part replaces 33820-44000.

33820-08200

Unavailable

8

CAP, TERMINAL

33624-45000

$4.58

9

HOLDER, BATTERY

41540-44001

Unavailable

10

BOLT This part replaces 01107-06208.

01500-06207

$2.28

11

WASHER This part replaces 09160-06007.

09160-06084

$1.78

12

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

13

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03
