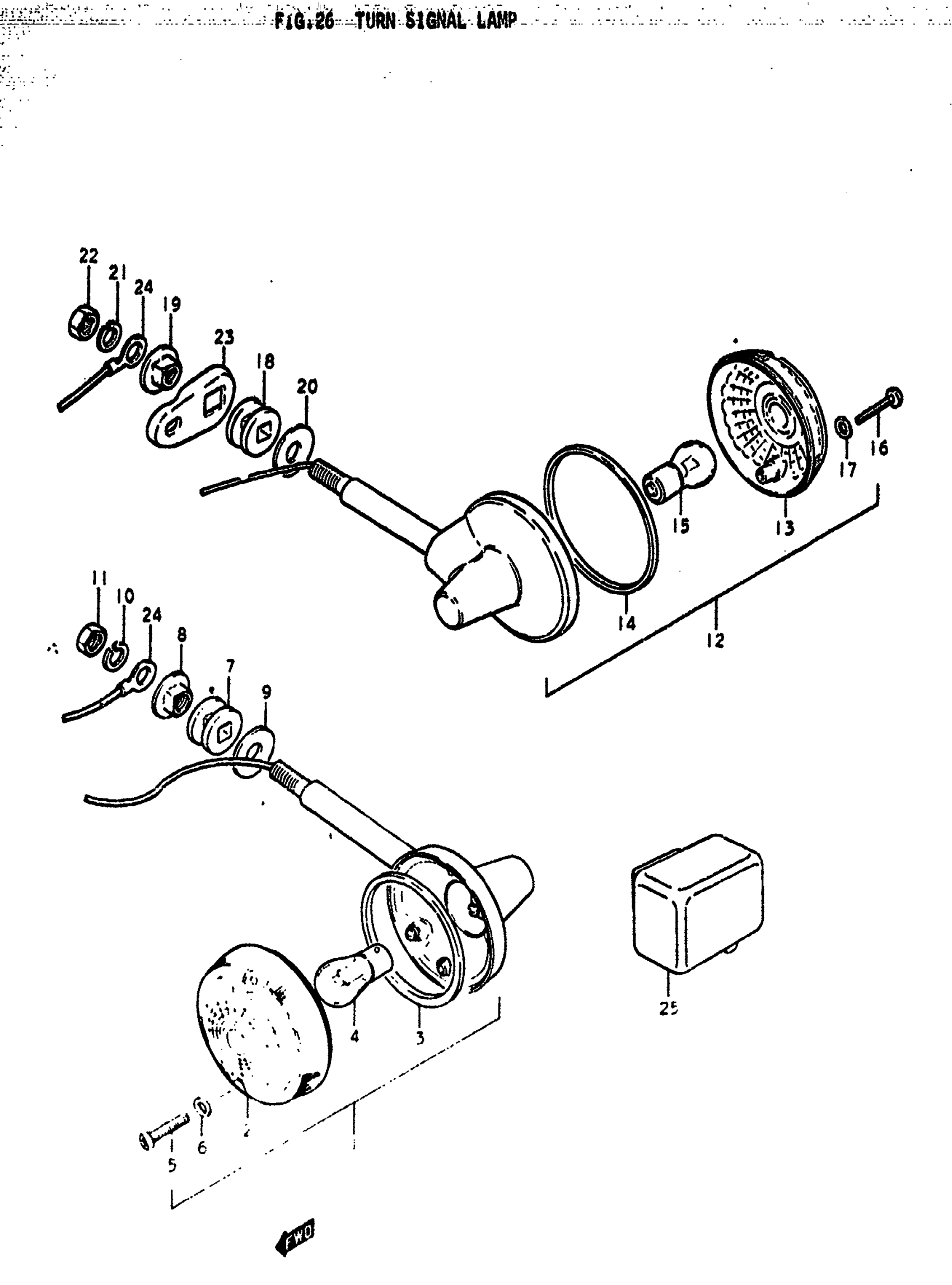

Suzuki GS425E (1979) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FR TR | N,EN; Includes Item(s) 2 - 6 This part replaces 35601-44031.

35601-39370-999

Unavailable

2

LENS | N,EN

35612-28620

$8.98

3

GASKET | N,EN

35613-28620

$4.55

4

BULB | N,EN; 12V, 25W

09471-12006

$3.98

5

SCREW | N,EN This part replaces 35623-47610.

03211-04207

$1.49

6

GASKET | N,EN

35627-43010

$2.28

7

RR TURN SIG CUS | N,EN This part replaces 35690-32200.

35690-32201

$6.37

8

SPACER | N,EN

35695-32200

Unavailable

9

WASHER | N,EN This part replaces 35629-44000.

09160-10062

Unavailable

10

LOCK WASHER | N,EN This part replaces 08321-21108.

08321-01107

$1.84

11

NUT | N,EN This part replaces 08310-12108.

08310-00107

$2.19

12

LAMP RR TURN SI | N,EN; Includes Item(s) 13 - 17 This part replaces 35603-44031.

35603-32620-999

Unavailable

13

LENS | N,EN

35612-28620

$8.98

14

GASKET | N,EN

35613-28620

$4.55

15

BULB | N,EN; 12V, 25W

09471-12006

$3.98

16

SCREW | N,EN This part replaces 35623-47610.

03211-04207

$1.49

17

GASKET | N,EN

35627-43010

$2.28

18

RR TURN SIG CUS | N,EN This part replaces 35690-32200.

35690-32201

$6.37

19

SPACER | N,EN

35695-32200

Unavailable

20

WASHER | N,EN This part replaces 35629-44000.

09160-10062

Unavailable

21

LOCK WASHER | N,EN This part replaces 08321-21108.

08321-01107

$1.84

22

NUT | N,EN This part replaces 08310-12108.

08310-00107

$2.19

23

BRACKET | N,EN This part replaces 41580-32200.

41580-32201

Unavailable

24

LEAD WIRE, EARTH | N,EN

36660-33000

$4.52

25

RELAY ASSY, TURNSIGNAL | N,EN This part replaces 38610-45031.

38610-31X50

$80.15
