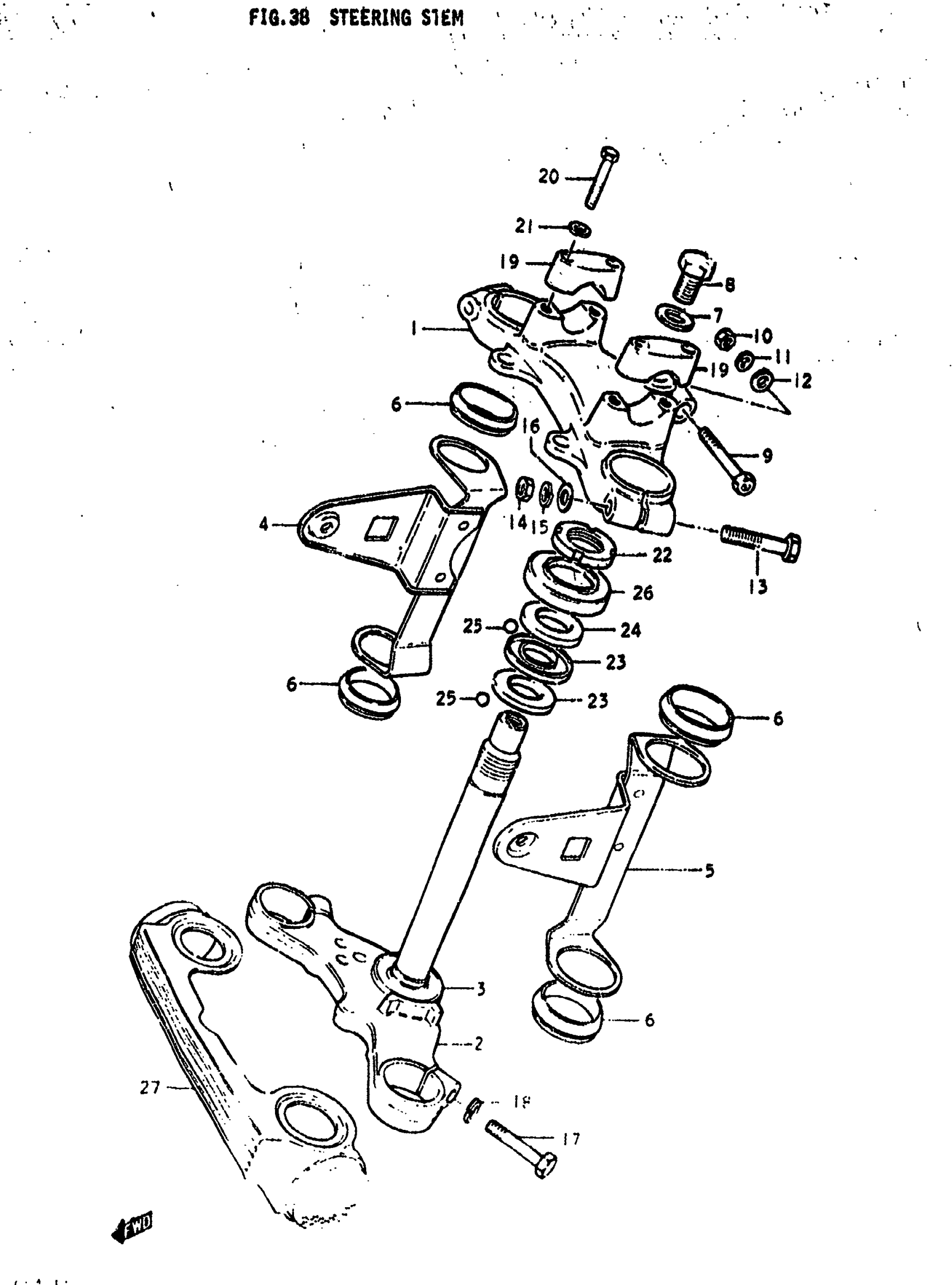

Suzuki GS425E (1979) STEERING STEM Diagram

#

Description
Price

1

STEERING STEM HEAD | N,EN

51311-44001-291

Unavailable

2

NO DESCRIPTION AVAILABLE | N,EN; Includes Item(s) 3 This part replaces 51410-44002.

51410-44602

Unavailable

3

OUTER RACE | N,EN

51621-33001

$16.25

4

BRACKET SET,HEA | N.EN This part replaces 51530-44001-291.

51500-44810-291

Unavailable

5

NO DESCRIPTION AVAILABLE | N,EN This part replaces 51540-44001-291.

51540-44002-291

Unavailable

6

CUSHION, HEADLAMP BRACKET | N,EN

51553-44000

Unavailable

7

WASHER (12.5X26X1.6) | N,EN This part replaces 09160-12006.

09160-12089

$1.97

8

BOLT | N,EN

09104-12013

$4.11

9

BOLT, LH | N,EN This part replaces 01527-08507.

01550-08507

$3.55

10

NUT | N,EN This part replaces 08310-12088.

08310-00087

$2.13

11

.LOCK WASHER | N,EN This part replaces 08321-21088.

08321-01087

$2.13

12

WASHER | N,EN This part replaces 08322-11088.

08322-01087

$2.13

13

BOLT | N,EN This part replaces 01527-10607.

01550-10607

Unavailable

14

NUT | N,EN This part replaces 08310-12108.

08310-00107

$2.19

15

LOCK WASHER | N,EN This part replaces 08321-21108.

08321-01107

$1.84

16

WASHER | N,EN This part replaces 08322-11108.

08322-01107

$2.15

17

BOLT | N,EN This part replaces 01107-10408.

01500-10407

$3.55

18

LOCK WASHER | N,EN This part replaces 08321-21108.

08321-01107

$1.84

19

CLAMP, HANDLEBAR UPPER | N,EN

56211-27200-291

$17.90

20

BOLT | N,EN

01204-08357

$2.09

21

.LOCK WASHER | N,EN This part replaces 08321-21088.

08321-01087

$2.13

22

NUT, STEERING STEM | N,EN

51631-28000

$17.37

23

INNER RACE | N,EN

51611-33002

$13.81

24

OUTER RACE | N,EN

51621-30001

Unavailable

25

STEEL BALL | N,EN

06111-08003

$1.49

26

DUST SEAL | N,EN

51643-30000

Unavailable

27

COVER, FRONT FORK | N,EN

51870-47000

Unavailable
