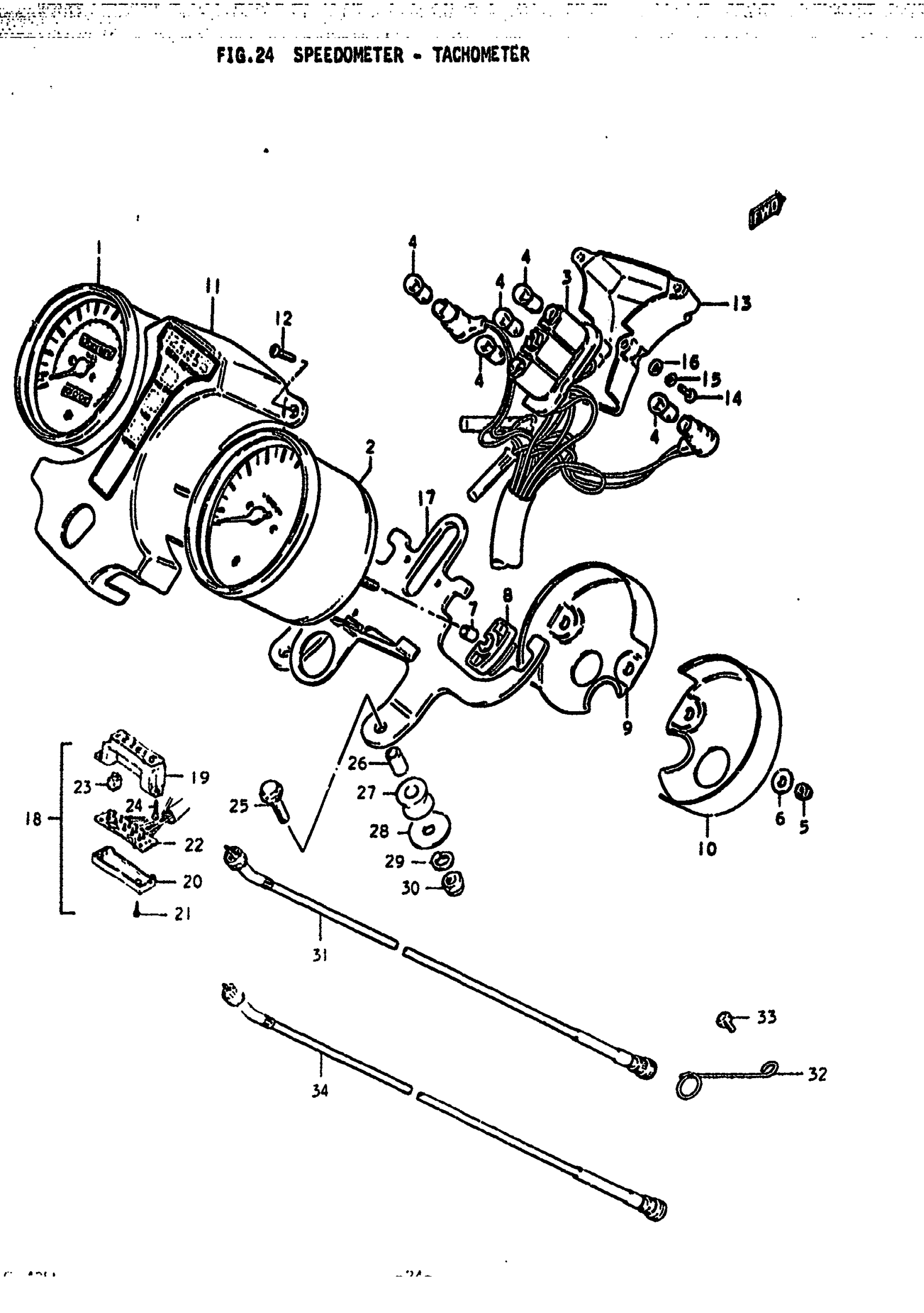

Suzuki GS425E (1979) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | N,EN; Includes Item(s) 1 - 24 This part replaces 34100-44012.

34100-44016

Unavailable

1

SPEEDOMETER | N,EN This part replaces 34110-44011.

34110-37410

Unavailable

2

NO DESCRIPTION AVAILABLE | N,EN This part replaces 34210-44613.

34210-44001

Unavailable

3

SOCKET | N,EN

34173-44000

Unavailable

4

BULB | N,EN; 12V, 3,4W

09471-12001

$1.65

5

NUT | N,EN This part replaces 08313-11057.

08313-1005A

$1.93

6

WASHER (5.5X16X1.2) | N,EN This part replaces 09160-05017.

09160-05043

$2.30

7

SPACER | N,EN

34972-44022

Unavailable

8

CUSHION | N,EN

34955-44020

Unavailable

9

UNDER COVER, SPEEDOMETER | N,EN

34962-36322

Unavailable

10

UNDER COVER, TACHOMETER | N,EN

34962-36322

Unavailable

11

CASE, PILOT BULB | N,EN

36380-44000

Unavailable

12

SCREW | N,EN

36387-44000

Unavailable

13

COVER, PILOT CASE UNDER | N,EN

36382-44000

Unavailable

14

SCREW | N,EN

09125-04011

Unavailable

15

LOCK WASHER | N,EN

34997-44020

Unavailable

16

WASHER | N,EN This part replaces 09160-04006.

08322-0104A

$1.91

17

BRACKET | N,EN

34950-44022

Unavailable

18

INDICATOR, GEAR POSITION | N,EN

36450-44001

Unavailable

19

CASE, GEAR INDICATOR | N,EN

36452-45100

Unavailable

20

COVER, LOWER | N,EN

36454-45100

Unavailable

21

NO DESCRIPTION AVAILABLE | N,EN This part replaces 36456-45100.

03511-03146

Unavailable

22

PIN, BOARD | N,EN

36453-44000

Unavailable

23

BULB | N,EN

09471-12071

$7.20

24

SCREW | N,EN

36457-45100

Unavailable

25

BOLT | N,EN This part replaces 01524-06307.

01550-06307

$2.69

26

SPACER (6.1X8X15.5) | N,EN This part replaces 09180-06040.

09180-06251

$2.44

27

CUSHION | N,EN

34956-15100

$3.71

28

WASHER | N,EN This part replaces 09160-06007.

09160-06084

$1.78

29

LOCK WASHER | N,EN This part replaces 08321-21068.

08321-01067

$2.13

30

.NUT | N,EN This part replaces 08310-11068.

08310-00067

$2.13

31

CABLE,SPEEDOMET | N,EN This part replaces 34910-44032.

34910-05311

$73.65

32

CLAMS | N,EN

34938-37000

$3.73

33

BOLT, CANISTER | N,EN This part replaces 01107-06168.

01500-06167

$1.97

34

CABLE,TACHOMETE | N,EN This part replaces 34940-44033.

34940-37312

$51.10
