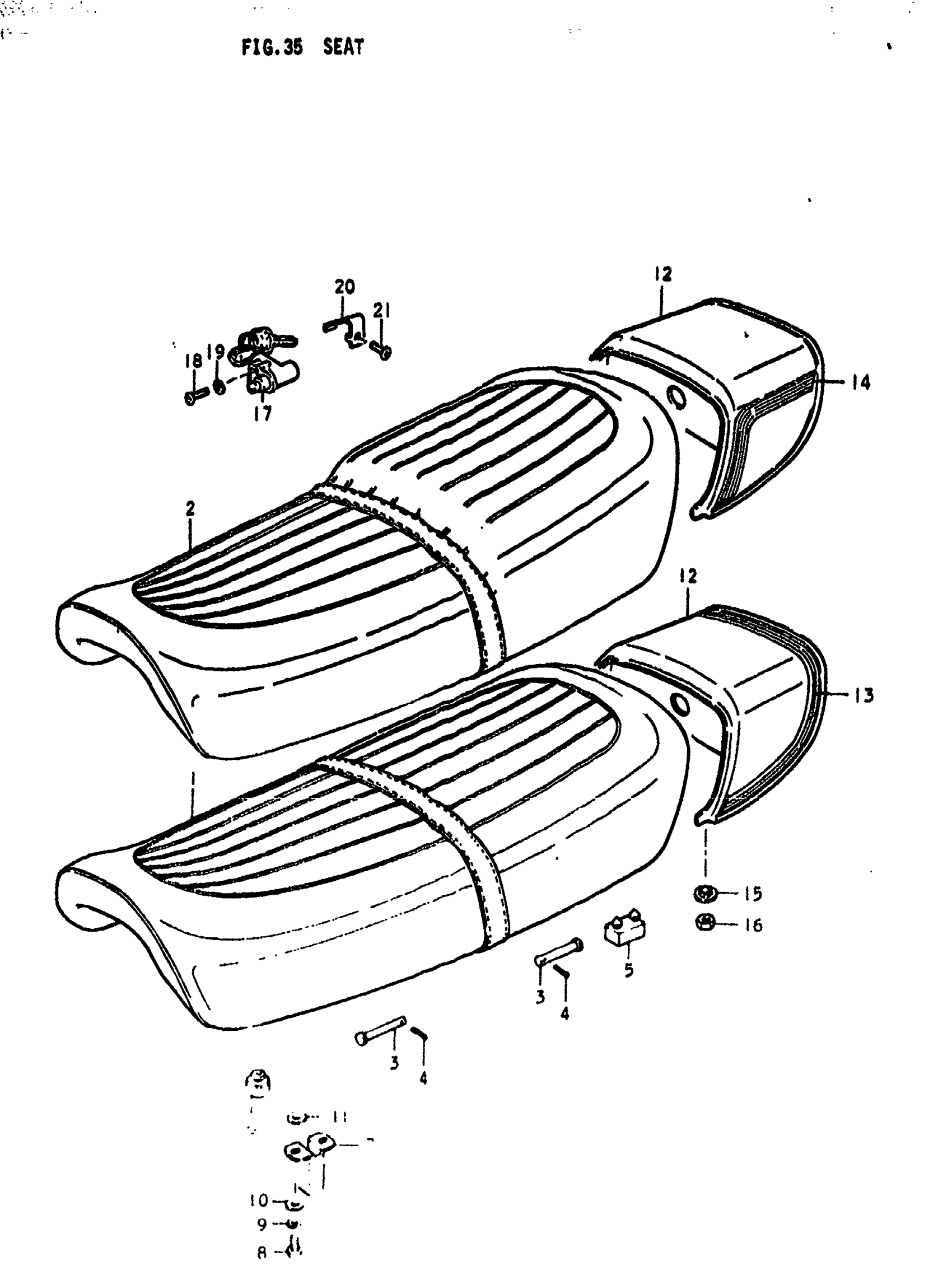

Suzuki GS425E (1979) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | N This part replaces 45100-44003-40P.

45100-44010-48H

Unavailable

2

NO DESCRIPTION AVAILABLE | EN This part replaces 45100-44010-40P.

45100-44010-48H

Unavailable

3

PIN | N,EN

09200-06018

$2.06

4

.COTTER PIN | N,EN This part replaces 04111-20158.

04111-2015A

$1.49

5

CUSHION | N,EN

09321-08006

$2.90

6

CUSHION | N,EN

09321-10002

$2.22

7

STRIKER, SEET LOCK | N,EN

45213-45000

Unavailable

8

BOLT | N,EN This part replaces 01107-06128.

01500-06127

$1.97

9

LOCK WASHER | N,EN This part replaces 08321-21068.

08321-01067

$2.13

10

WASHER | N,EN This part replaces 08322-21068.

08322-01067

$2.13

11

SHIM | N,EN

09160-08043

$1.83

12

COVER, SEAT TAIL | N

45510-44001-08G

Unavailable

12

COVER SEAT TAIL | N This part replaces 45510-44001-05L.

45510-44001

Unavailable

12

COVER SEAT TAIL | EN This part replaces 45510-44001-019.

45510-44001

Unavailable

13

TAPE SET, SEAT TAIL COVER | N

68100-44860-764

Unavailable

14

TAPE SET, SEAT TAIL COVER | EN

68100-44880-66W

Unavailable

15

WASHER | N,EN

09169-06016

$1.65

16

.NUT | N,EN This part replaces 08319-21068.

08319-2106A

$1.91

17

SEAT LOCK ASSY | N,EN

95700-45813

Unavailable

18

SCREW | N,EN This part replaces 02112-05128.

02112-05127

$1.97

19

LOCK WASHER | N,EN This part replaces 08321-21058.

08321-0105A

$1.84

20

SPRING, HELMET HOLDER | N,EN

95722-45000

Unavailable

21

BOLT | N,EN This part replaces 01104-05088.

01500-05087

$2.13
