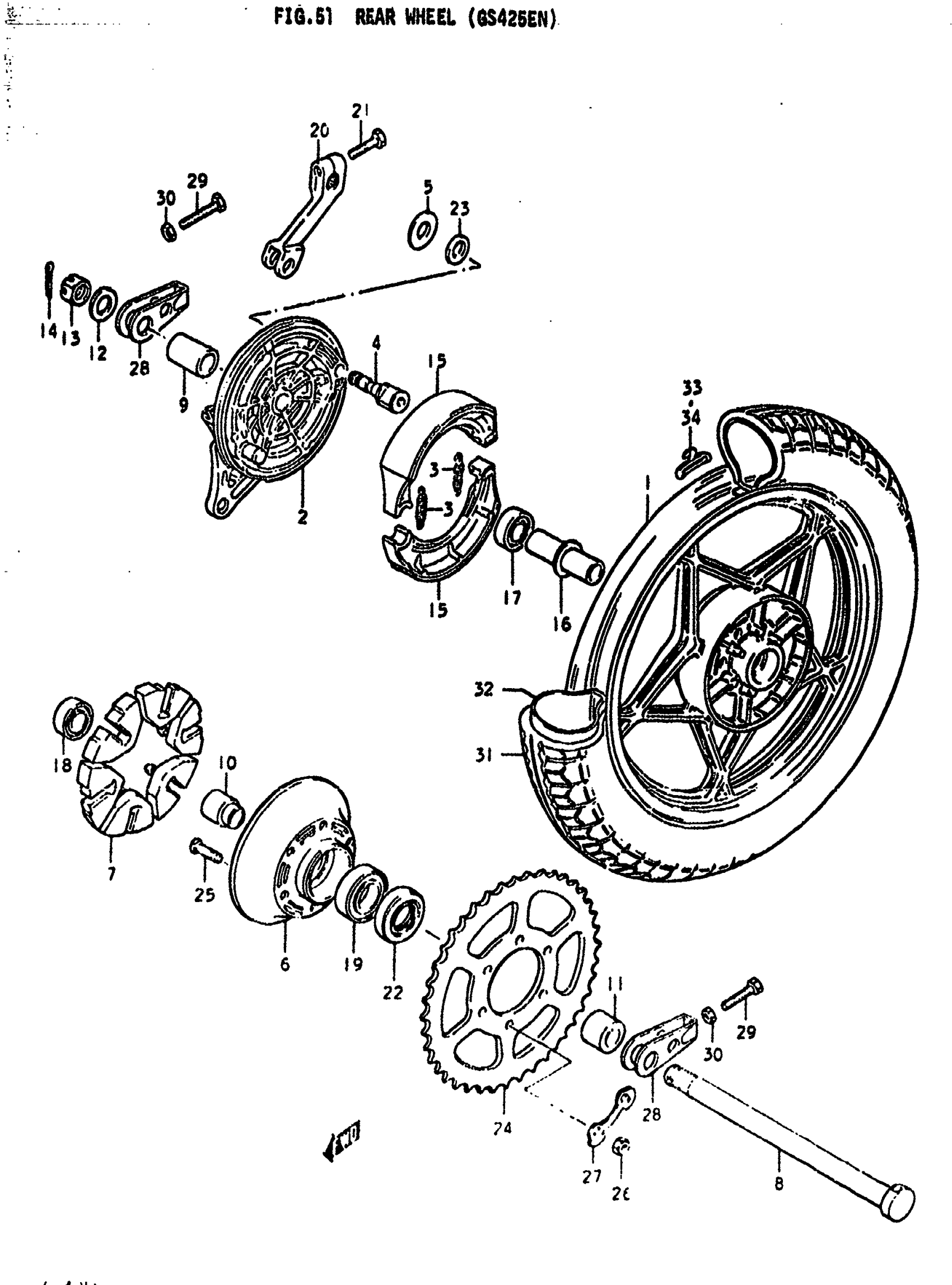

Suzuki GS425E (1979) REAR WHEEL (GS425EN) Diagram

#

Description
Price

1

WHEEL, REAR (18x1.85) This part replaces 64150-44000.

64150-44000-12U

Unavailable

2

PANEL

64210-44060

Unavailable

3

SPRING

55420-30000

$4.48

4

CAM, REAR BRAKE This part replaces 54440-08002.

54440-08004

$27.62

5

WASHER This part replaces 09160-15001.

09160-15048

$2.56

6

DRUM, SPROCKET This part replaces 64611-44000.

64611-44001

Unavailable

7

SHOCK ABSORBER, REAR DRUM

64651-11300

$13.62

8

AXLE,REAR This part replaces 64711-33000.

64711-3300V

Unavailable

9

SPACER, RH

09180-17043

Unavailable

10

SPACER,RR HUB B This part replaces 64733-33000.

64733-3300V

Unavailable

11

SPACER, LH

09180-17042

Unavailable

12

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

$2.45

13

NUT

09141-16001

Unavailable

14

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

15

SHOE SET, BRAKE This part replaces 64410-11300.

64400-11860

Unavailable

16

SPACER,17.6X24X This part replaces 09180-19001.

09180-17056-XC0

Unavailable

17

BEARING

08143-63037

$22.58

18

BEARING

08143-62037

$18.47

19

BEARING, LH This part replaces 08113-62050.

09262-25003

$24.83

20

LEVER, BRAKE CAM This part replaces 64451-44000.

64451-44001

Unavailable

21

BOLT This part replaces 01107-06258.

01500-06257

$1.97

22

SEAL,OIL(30.5X5 This part replaces 09283-30001.

09285-30003

$23.97

23

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

24

SPROCKET, REAR | NT:45

64511-44000

Unavailable

25

BOLT This part replaces 09119-10002.

09105-10001

$2.87

26

NUT This part replaces 08310-12108.

08310-00107

$2.19

27

LOCK WASHER

09169-10006

Unavailable

28

ADJUSTER, CHAIN This part replaces 61410-44000.

61410-44200

Unavailable

29

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

30

NUT This part replaces 08310-12088.

08310-00087

$2.13

31

TIRE, REAR

65100-44030

Unavailable

32

TUBE ASSY, WHEEL INNER This part replaces 65200-33030.

65200-44AA0

$53.43

33

BALANCER AR | 3)

55411-47001

Unavailable

34

BALANCER AR | 3)

55412-47001

Unavailable
