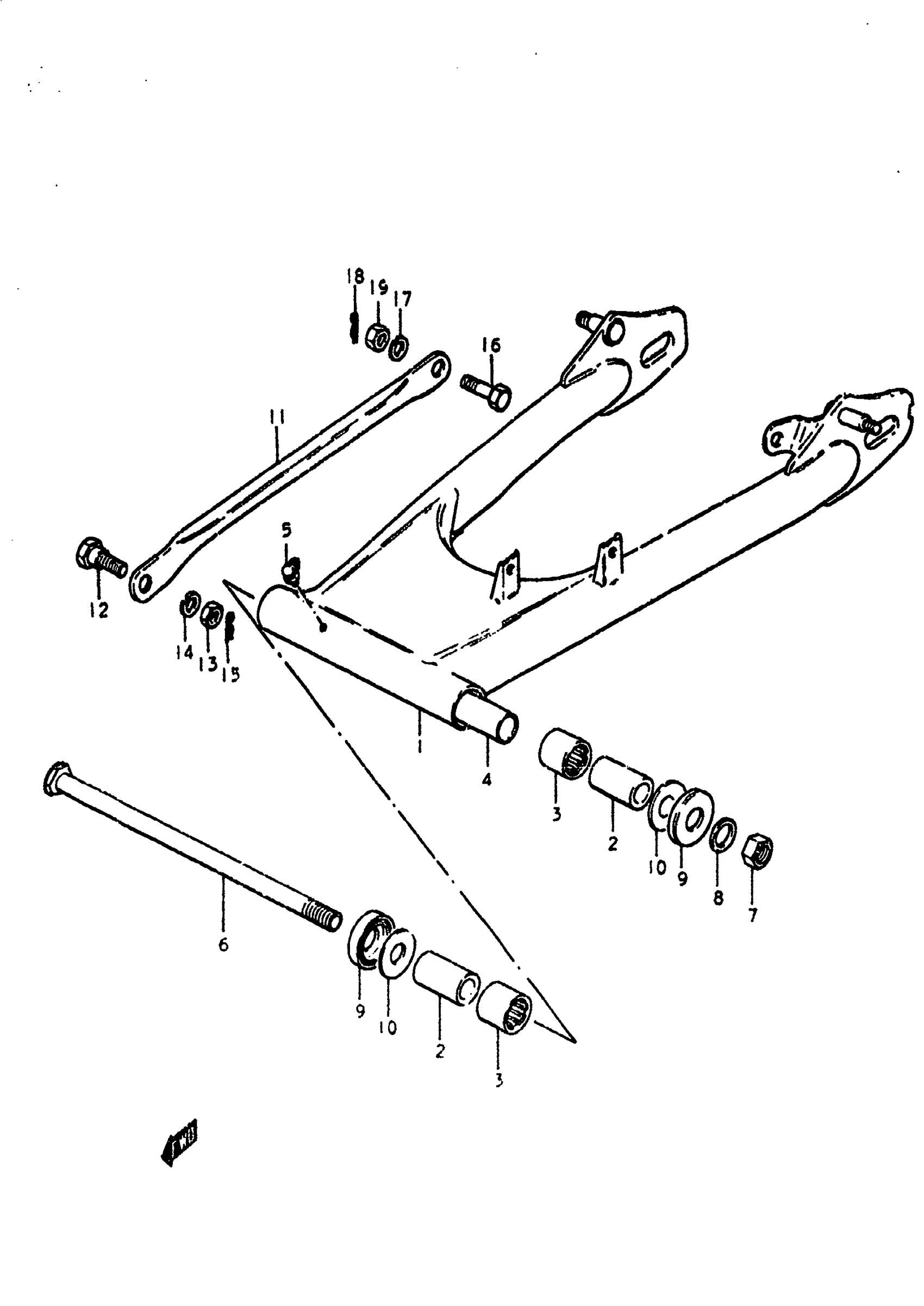

Suzuki GS425E (1979) REAR SWINGING ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | N,EN; Includes Item(s) 2 - 5 This part replaces 61100-44812-019.

61100-44813-019

Unavailable

2

SPACER | N,EN

61251-45001

$17.37

3

BEARING | N,EN

09263-22017

$22.58

4

SPACER | N,EN

61281-44001

Unavailable

5

NIPPLE, GREASE | N,EN This part replaces 08351-31008.

08351-3100A

$4.45

6

SHAFT, PIVOT | N,EN This part replaces 61211-33001.

61211-33002

Unavailable

7

NUT | N,EN This part replaces 08319-21148.

08319-2114A

$3.96

8

WASHER | N,EN This part replaces 08322-11148.

08322-01147

$1.91

9

COVER, DUST SEAL | N,EN

61262-45002

$7.97

10

WASHER | N,EN

09160-14020

$2.19

11

NO DESCRIPTION AVAILABLE | N; L:370 This part replaces 64311-31001.

64311-31001-13L

Unavailable

11

TORQUE LINK, REAR(BLACK) | EN; L:380 This part replaces 64311-44000.

64311-44200-019

Unavailable

12

BOLT, FRONT | N,EN

09111-10010

Unavailable

13

NUT | N,EN This part replaces 08310-22108.

08310-00107

$2.19

14

LOCK WASHER | N,EN This part replaces 08321-21108.

08321-01107

$1.84

15

CLIP | N,EN This part replaces 09385-10001.

09385-10005

$1.56

16

BOLT, REAR | N,EN

09101-10003

Unavailable

17

LOCK WASHER | N,EN This part replaces 08321-21108.

08321-01107

$1.84

18

CLIP | N,EN This part replaces 09385-10001.

09385-10005

$1.56

19

NUT | N,EN This part replaces 08310-12108.

08310-00107

$2.19
