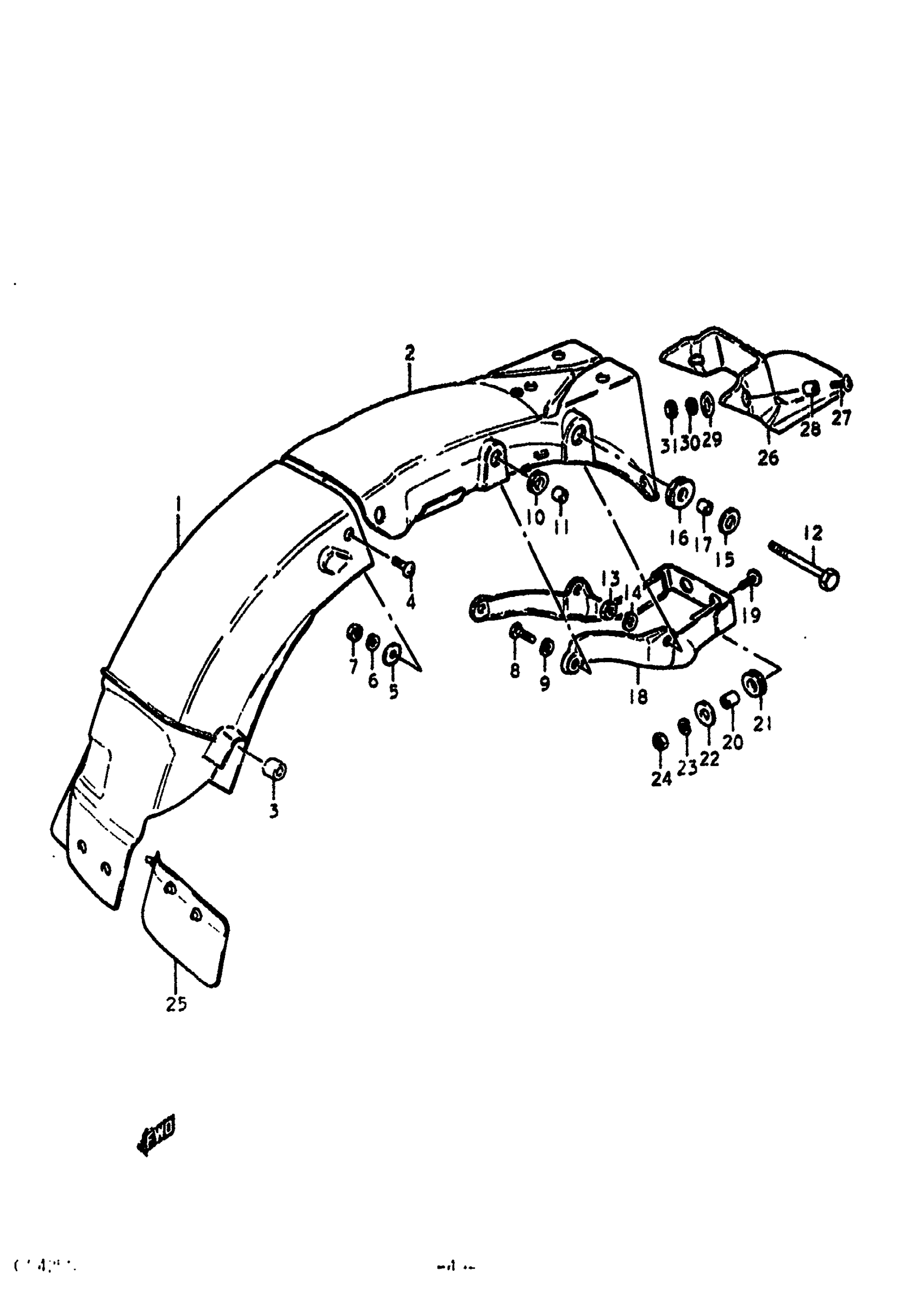

Suzuki GS425E (1979) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT | N,EN

63112-44002

Unavailable

2

BODY, REAR FENDER REAR | N,EN

63113-44001

Unavailable

3

CUSHION | N,EN This part replaces 09329-05003.

09329-05009

$2.37

4

SCREW | N,EN

02142-05167

$1.49

5

WASHER (5.5X16X1.2) | N,EN This part replaces 09160-05017.

09160-05043

$2.30

6

LOCK WASHER | N,EN This part replaces 08321-21058.

08321-0105A

$1.84

7

NUT | N,EN This part replaces 08310-11058.

08310-00057

$1.84

8

BOLT | N,EN This part replaces 01107-06208.

01500-06207

$2.28

9

LOCK WASHER | N,EN This part replaces 08321-21068.

08321-01067

$2.13

10

CUSHION (8.5X20X8) | N,EN This part replaces 09320-08007.

09320-08510

$1.97

11

SPACER | N,EN; 6.1x9x7.5

09180-06038

$1.98

12

BOLT | N,EN This part replaces 01527-08657.

01550-08657

$4.68

13

NUT | N,EN This part replaces 08310-12088.

08310-00087

$2.13

14

.LOCK WASHER | N,EN This part replaces 08321-21088.

08321-01087

$2.13

15

WASHER | N,EN; 8.5x26x1.2

09160-08032

$2.30

16

FENDER SIDE CUS | N,EN This part replaces 09320-12011.

09320-12090

$1.91

17

SPACER | N,EN; 8.2x11.8x7.5 This part replaces 09180-08021.

09180-08188

$2.56

18

PEINFORCEMENT, REAR FENDER | N,EN

63120-44000

Unavailable

19

SCREW | N,EN

02142-06207

$1.49

20

SPACER (6.5X9X9) | N,EN; 6.1x9x9 This part replaces 09180-06011.

09180-06263

$2.03

21

CUSHION (8X22X7) | N,EN This part replaces 09320-08013.

09320-08509

$1.93

22

WASHER | N,EN; 6.5x22x1.6 This part replaces 09160-06012.

09160-06054

$1.62

23

LOCK WASHER | N,EN This part replaces 08321-21068.

08321-01067

$2.13

24

.NUT | N,EN This part replaces 08310-11068.

08310-00067

$2.13

25

MUD GUARD, REAR FENDER | N,EN

63411-33000

Unavailable

26

EXTENTION, REAR FENDER | N,EN; OPT

63311-44600

Unavailable

27

SCREW | N,EN; OPT 6.2x8.3x5.7 This part replaces 09125-06009.

09125-06073

$1.84

28

SPACER | N,EN; OPT 6.5x18x1

09180-06001

$2.30

29

WASHER (6.5X18X1.0) | N,EN; OPT

09160-06028

$1.49

30

LOCK WASHER | N,EN; OPT This part replaces 08321-21068.

08321-01067

$2.13

31

.NUT | N,EN; OPT This part replaces 08310-11068.

08310-00067

$2.13
