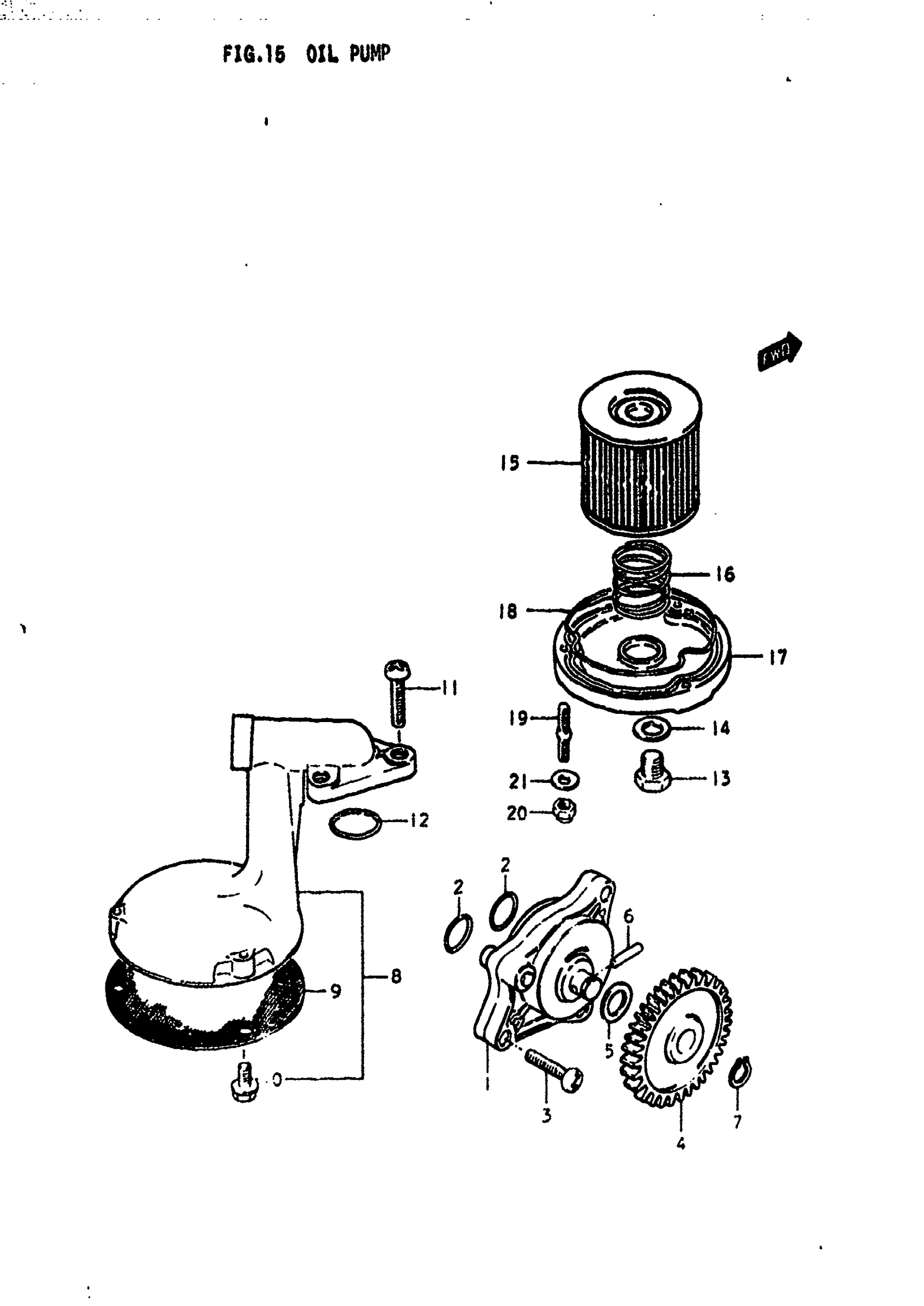

Suzuki GS425E (1979) OIL PUMP Diagram

#

Description
Price

1

PUMP, ENGINE OIL | N,EN This part replaces 16400-45013.

16400-45020

Unavailable

2

O RING | N,EN

09280-13004

$2.17

3

SCREW | N,EN This part replaces 02112-06258.

02112-06257

$1.78

4

GEAR, OIL PUMP DRIVEN | N,EN; NT:29

16331-44000

Unavailable

5

WASHER | N,EN

08221-10185

$2.15

6

PIN | N,EN

09261-04009

$1.56

7

CIRCLIP | N,EN

08331-31109

$1.78

8

STRAINER, ENGINE OIL | N,EN; Includes Item(s) 9 - 10

16520-44000

Unavailable

9

NET | N,EN

16522-44001

Unavailable

10

BOLT | N,EN This part replaces 01517-06108.

01550-06107

$2.80

11

SCREW | N,EN This part replaces 02112-06208.

02112-06207

$1.78

12

O RING | N,EN

09280-16005

$2.23

13

PLUG (MAGNETO) | N,EN This part replaces 09247-14001.

09247-14002

$5.24

14

GASKET | N,EN

09168-14004

$1.83

15

FILTER, ENGINE OIL | N,EN

16510-45040

$5.96

16

SPRING | N,EN

09440-32004

$2.92

17

CAP, ENGINE OIL FILTER | N,EN This part replaces 16512-45001.

16512-45101

Unavailable

18

O RING | N,EN

16518-45000

$5.70

19

STUD BOLT | N,EN This part replaces 01421-06208.

01421-0620A

$1.91

20

NUT, LICENSE HOLDER | N,EN This part replaces 08313-11068.

08313-10067

$1.84

21

WASHER | N,EN This part replaces 08322-21068.

08322-01067

$2.13
