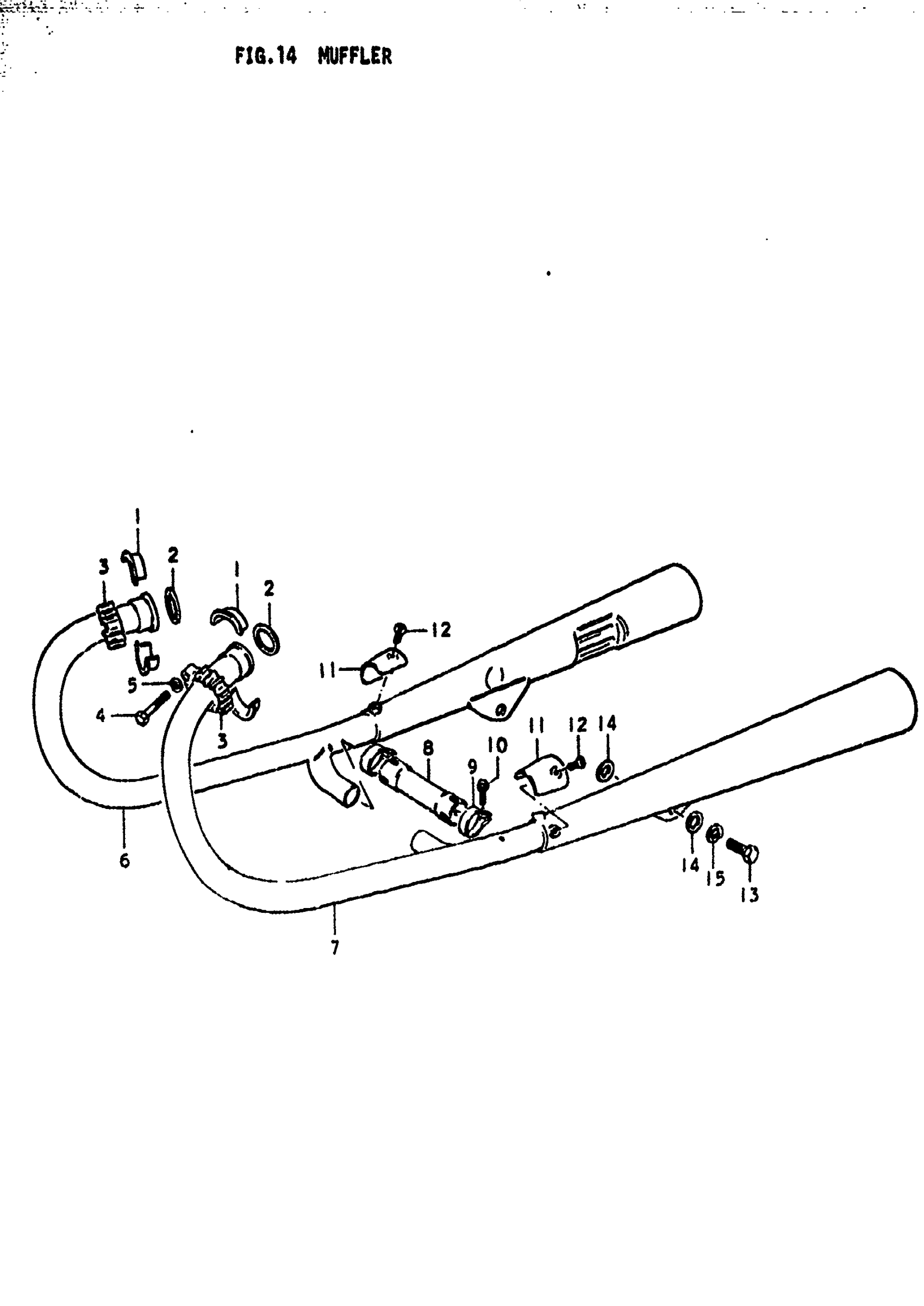

Suzuki GS425E (1979) MUFFLER Diagram

#

Description
Price

1

PLATE, EXHAUST PIPE | N,EN

14155-49000

$5.02

2

GASKET, EXHAUST PIPE | N,EN This part replaces 14181-11010.

14181-01D00

$7.11

3

CLAMP | N,EN

14182-44010

Unavailable

4

BOLT | N,EN This part replaces 01107-08358.

01500-0835B

$3.04

5

.LOCK WASHER | N,EN This part replaces 08321-21088.

08321-01087

$2.13

6

NO DESCRIPTION AVAILABLE | N,EN This part replaces 14310-44011.

14305-44013-H01

Unavailable

7

NO DESCRIPTION AVAILABLE | N,EN This part replaces 14340-44011.

14306-44013-H01

Unavailable

8

PIPE, EXHAUST CUPULER | N,EN

14211-44010

Unavailable

9

CLAMP | N,EN

09402-35601

Unavailable

10

BOLT | N,EN This part replaces 01514-06258.

01550-06257

$2.30

11

COVER, MUFFLER | N,EN

14781-44010

Unavailable

12

SCREW | N,EN This part replaces 02112-05068.

09125-05122

$2.06

13

BOLT | N,EN This part replaces 01107-10258.

01500-10257

$3.85

14

WASHER | N,EN This part replaces 08322-21108.

08322-01107

$2.15

15

LOCK WASHER | N,EN This part replaces 08321-21108.

08321-01107

$1.84
