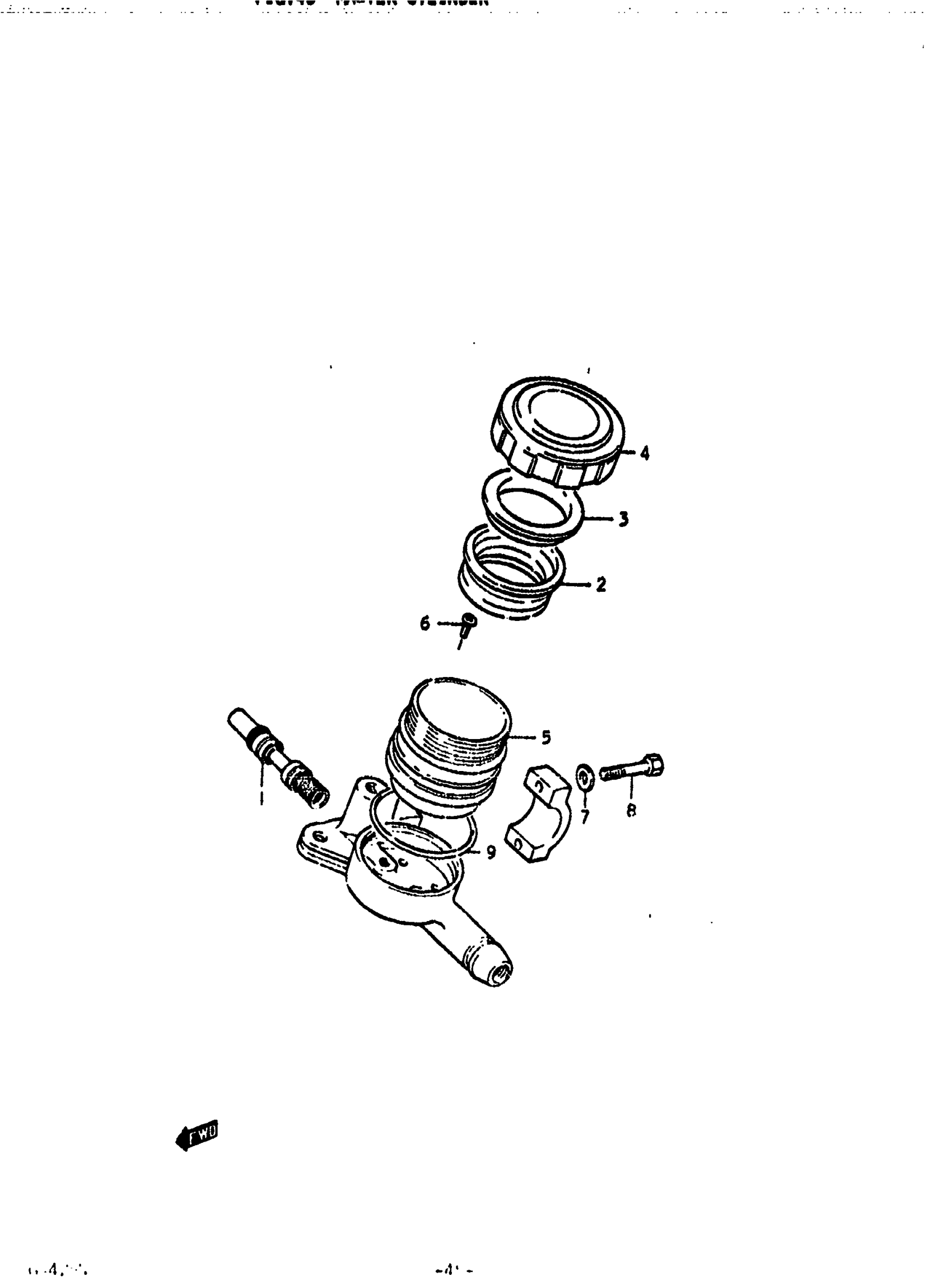

Suzuki GS425E (1979) MASTER CYLINDER Diagram

#

Description

Price

0

NO DESCRIPTION AVAILABLE | N,EN; Includes Item(s) 1 - 9 This part replaces 59600-33614.

59600-336V1

Unavailable

1

PISTON / CUP SET | N,EN This part replaces 59600-18824.

59600-45821

Unavailable

2

DIAPHRAGM | N,EN This part replaces 59667-18440.

59667-18441

$10.28

3

PLATE | N,EN

59668-18441

$4.52

4

CAP | N,EN This part replaces 59669-33603.

59669-07D00

$31.72

5

RESERVOIR | N,EN

59687-45000

Unavailable

6

SCREW | N,EN

59688-33601

Unavailable

7

WASHER | N,EN This part replaces 08322-21068.

08322-01067

$2.13

8

BOLT | N,EN This part replaces 01107-06258.

01500-06257

$1.97

9

O RING | N,EN

59686-33600

Unavailable
