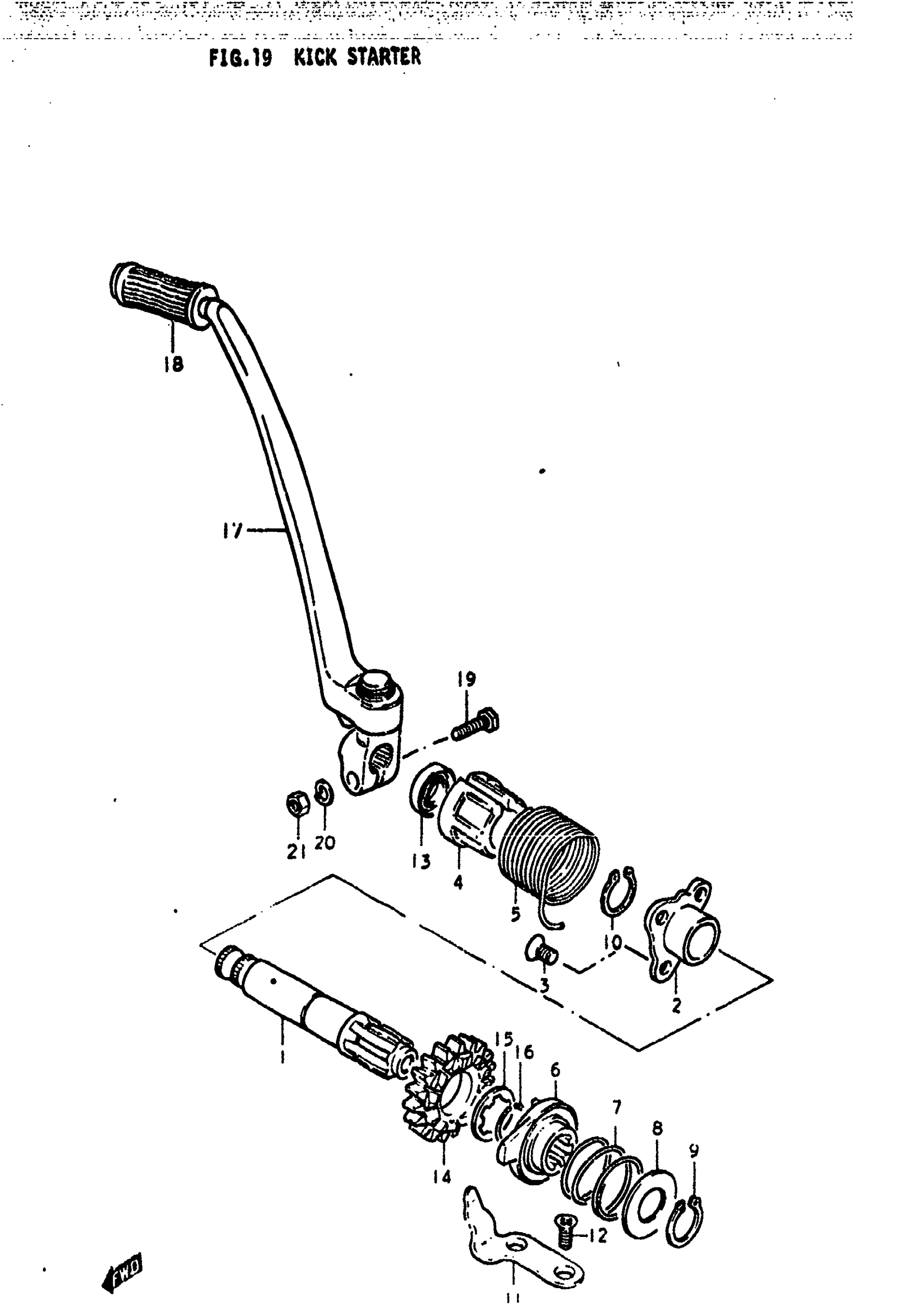

Suzuki GS425E (1979) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER | N,EN

26210-44000

Unavailable

2

HOLDER, SHAFT | N,EN

26215-44000

Unavailable

3

SCREW | N,EN This part replaces 02122-06128.

02122-06127

$1.84

4

GUIDE, SPRING | N,EN

26221-44000

Unavailable

5

SPRING | N,EN

09448-45010

Unavailable

6

STARTER, KICK | N,EN This part replaces 26231-30001.

26231-22A10

$63.88

7

SPRING | N,EN

09440-32002

$2.27

8

PLATE | N,EN

08212-17342

Unavailable

9

CIRCLIP, LH | N,EN

09380-17001

$1.98

10

CIRCLIP, KICK START DRIVE GEAR | N,EN This part replaces 08331-11209.

08331-3120A

$2.03

11

GUIDE, STARTER | N,EN

26232-44000

Unavailable

12

SCREW | N,EN This part replaces 02122-06168.

02122-06167

$1.49

13

OIL SEAL | N,EN

09283-20031

$5.24

14

GEAR, KICK STARTER DRIVE | N,EN

26240-45000

Unavailable

15

WASHER | N,EN

09167-22007

Unavailable

16

CIRCLIP | N,EN

09380-22003

$1.92

17

LEVER ASSY, KICK STARTER | N,EN; Includes Item(s) 18

26300-44001

Unavailable

18

RUBBER,KICK STA | N,EN This part replaces 26352-01000.

26352-01020

$3.25

19

BOLT, HANDLE HOLDER | N,EN This part replaces 01107-10358.

01500-1035B

$3.72

20

LOCK WASHER | N,EN This part replaces 08321-21108.

08321-01107

$1.84

21

NUT | N,EN This part replaces 08310-12108.

08310-00107

$2.19
