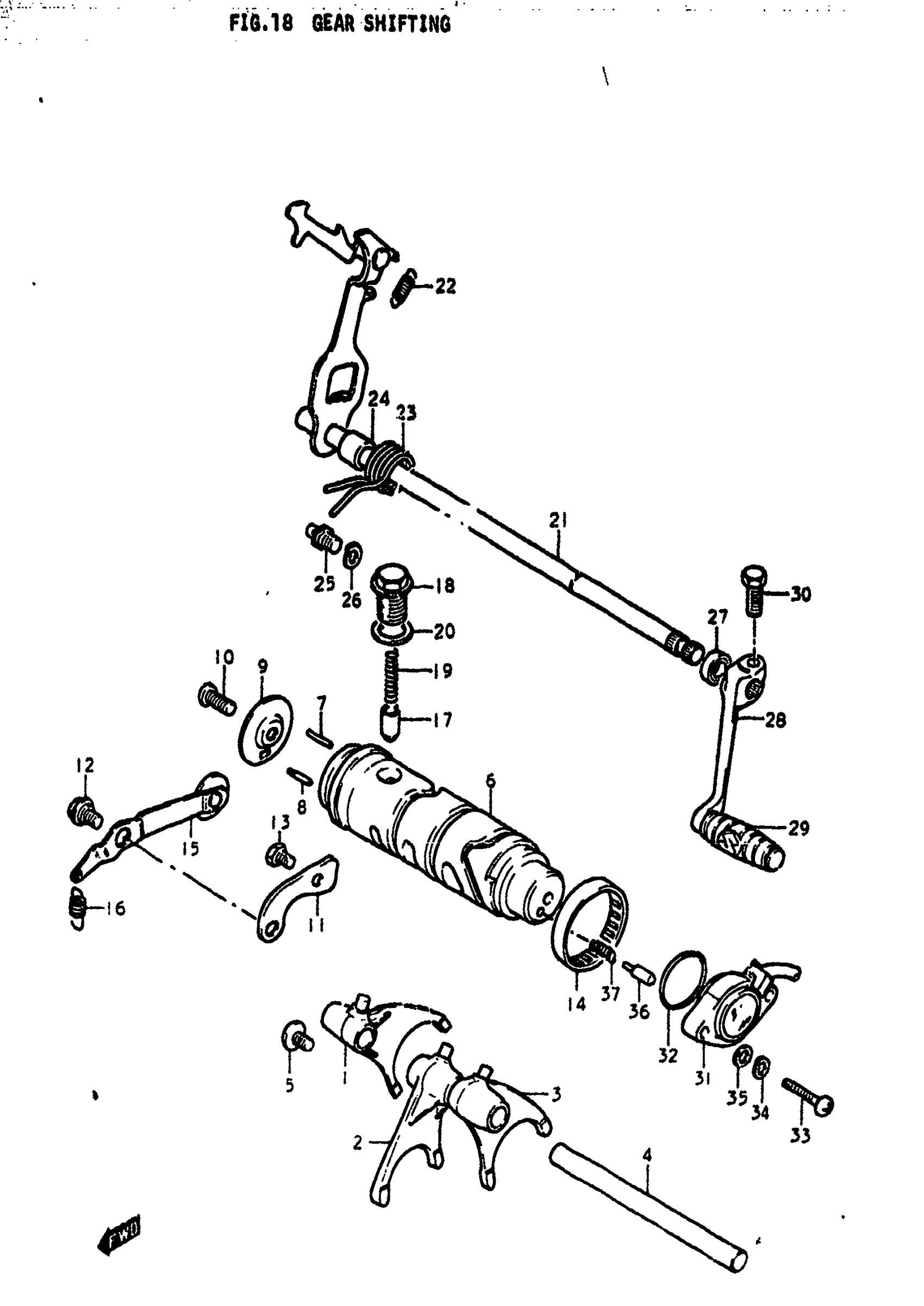

Suzuki GS425E (1979) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1 | N,EN

25211-44001

Unavailable

2

FORK, GEAR SHIFTING NO.2 | N,EN

25221-44001

Unavailable

3

FORK, GEAR SHIFTING NO.3 | N,EN

25231-44000

Unavailable

4

SHAFT, GEAR SHIFT FORK NO.1 | N,EN This part replaces 25411-31000.

25411-18900

$23.07

5

SCREW | N,EN

02142-06108

$2.45

6

CAM, GEAR SHIFTING | N,EN

25311-44000

Unavailable

7

PIN | N,EN

09261-04001

$1.72

8

PIN | N,EN

09209-04013

Unavailable

9

HOLDER, DRIVE PIN | N,EN

25322-44000

Unavailable

10

SCREW | N,EN This part replaces 02112-06168.

02112-06167

$1.49

11

GUIDE, CAM | N,EN This part replaces 25341-44000.

25341-33300

Unavailable

12

BOLT | N,EN This part replaces 09111-06019.

09111-06054

$3.70

13

BOLT | N,EN This part replaces 01107-06128.

01500-06127

$1.97

14

BEARING | N,EN

09263-40001

$29.53

15

STOPPER, CAM NO.1 | N,EN

25350-44000

Unavailable

16

SPRING | N,EN

09443-09007

$2.56

17

STOPPER, SELECT CAM | N,EN This part replaces 25351-18000.

25351-39300

$10.23

18

HOLDER, STOPPER | N,EN This part replaces 25352-11000.

25352-11010

$7.22

19

SPRING | N,EN

09440-05018

$1.84

20

GASKET | N,EN

09168-14004

$1.83

21

SHAFT, GEAR SHIFTING | N,EN

25510-44000

Unavailable

22

SPRING | N,EN

09443-07013

$2.07

23

SPRING | N,EN This part replaces 09444-26012.

09444-26013

$3.10

24

SPACER | N,EN

09180-12068

$3.16

25

STOPPER, ARM | N,EN This part replaces 25671-01000.

25671-01011

$4.48

26

.LOCK WASHER | N,EN This part replaces 09162-08005.

08321-01087

$2.13

27

OIL SEAL (12X22X9) | N,EN This part replaces 09285-12002.

09285-12006

$6.32

28

LEVER ASSY, GEAR SHIFTING | N,EN; Includes Item(s) 29

25600-44000

Unavailable

29

.RUBBER,GEAR SHIFT PEDAL | N,EN This part replaces 25652-16500.

25652-16510

$3.74

30

BOLT, REAR | N,EN This part replaces 01107-08208.

01500-08207

$2.53

31

BODY, SWITCH | N,EN This part replaces 37720-45011.

37720-45100

$101.35

32

O RING (D:2.4,ID:26.2) | N,EN This part replaces 09280-26003.

09280-26005

$2.30

33

SCREW | N,EN This part replaces 02112-05208.

02112-05207

$1.97

34

LOCK WASHER | N,EN This part replaces 08321-21058.

08321-0105A

$1.84

35

WASHER | N,EN This part replaces 08322-21058.

08322-01057

$2.13

36

CONTACT | N,EN

09209-05011

$2.20

37

SPRING | N,EN

09440-04010

$1.54
