1979 Suzuki GS425E Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1979 Suzuki GS425E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

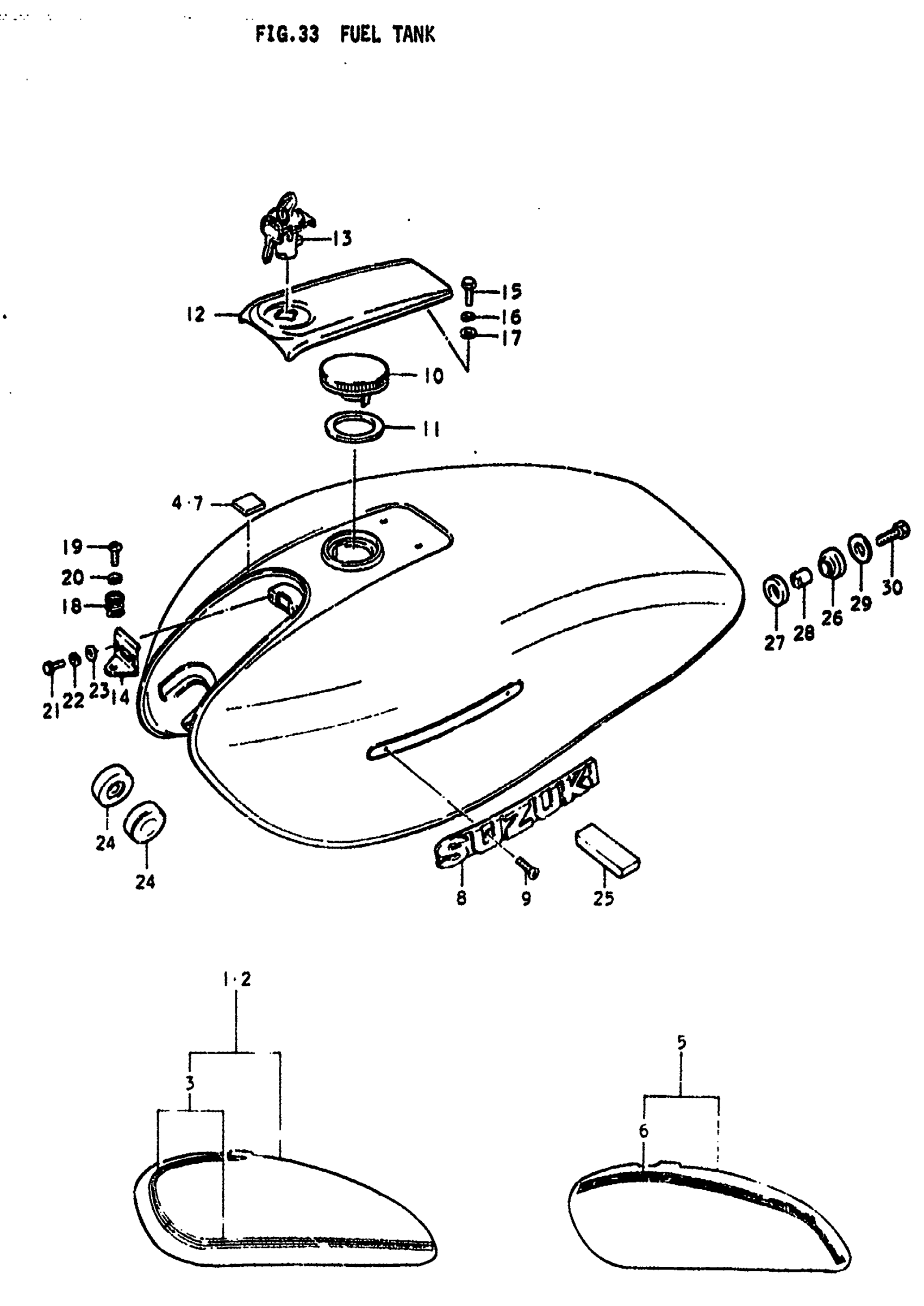

1979 Suzuki GS425E Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL | N

44100-44020-08G

1
Out of stock

2

TANK, FUEL | N; Includes Item(s) 3 - 4 This part replaces 44100-44020-05L.

44110-44000-737

1
Out of stock

3

TAPE SET | N

68100-44850-764

1
Out of stock

4

CUSHION | N This part replaces 44276-37001.

44276-37002

2
Out of stock

5

TANK, FUEL | EN; Includes Item(s) 6 - 7 This part replaces 44100-44040-019.

44110-44000-737

1
Out of stock

6

TAPE SET | EN

68100-44870-66W

1
Out of stock

7

CUSHION | EN This part replaces 44276-37001.

44276-37002

2
Out of stock

8

EMBLEM | N,EN

68111-45010

2
Out of stock

9

SCREW | N,EN This part replaces 02132-03065.

02122-0306B

4
Out of stock

10

CAP FUEL TANK | N,EN This part replaces 44210-23300.

44200-23810

1
Out of stock

11

GASKET | N,EN

85413-70000

1
Out of stock

12

COVER, FUEL TANK FRONT | N,EN

44270-44003

1
Out of stock

13

LOCK ASSY, FRONT COVER | N,EN

44280-37010

1
Out of stock

14

TANK FR COVER H | N,EN This part replaces 44290-37001.

44290-3700V

1
Out of stock

15

BOLT | N,EN This part replaces 01104-05108.

01500-0510B

2
Out of stock

16

LOCK WASHER | N,EN This part replaces 08321-21058.

08321-0105A

2
Out of stock

17

WASHER | N,EN This part replaces 08322-21058.

08322-01057

2
Out of stock

18

SPRING | N,EN

09446-17001

1
Out of stock

19

SCREW | N,EN This part replaces 02112-05108.

02112-05107

1
Out of stock

20

LOCK WASHER | N,EN This part replaces 08321-21053.

08321-0105A

1
Out of stock

21

BOLT | N,EN This part replaces 01104-05108.

01500-0510B

2
Out of stock

22

LOCK WASHER | N,EN This part replaces 08321-21058.

08321-0105A

2
Out of stock

23

WASHER | N,EN This part replaces 08322-21058.

08322-01057

2
Out of stock

24

CUSHION | N,EN This part replaces 09329-10007.

09329-10026

2
Out of stock

25

CUSHION FUEL TA | N,EN This part replaces 09329-01005.

09329-01008

1
Out of stock

26

CUSHION, REAR NO.2 | N,EN

09320-12013

1
Out of stock

27

CUSHION, REAR NO.3 | N,EN

09320-12017

1
Out of stock

28

SPACER | N,EN

09180-08067

1
Out of stock

29

WASHER | N,EN This part replaces 09160-08035.

09160-08130

1
Out of stock

30

BOLT | N,EN This part replaces 01107-08306.

01500-0830B

1
Out of stock
