1979 Suzuki GS425E Chain Case - Shock Absorber Diagram

← All diagrams

Find the part on the Chain Case - Shock Absorber diagram for your 1979 Suzuki GS425E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

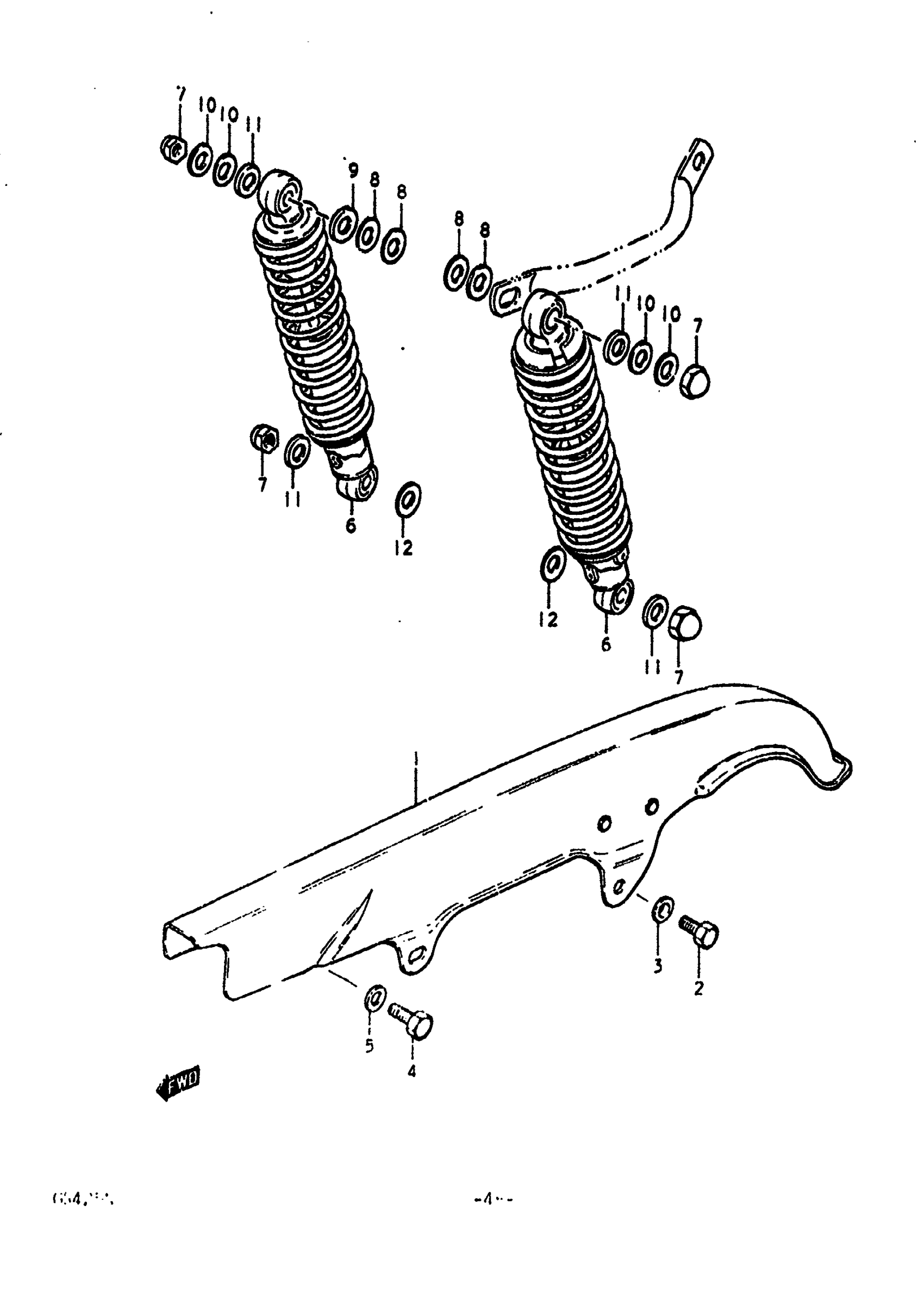

1979 Suzuki GS425E Chain Case - Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN CASE | N,EN

61310-44000-019

1
Out of stock

2

BOLT | N,EN

09100-06011

2
Out of stock

3

WASHER | N,EN; 6.6x9x22

09169-06016

2
Out of stock

4

BOLT | N,EN This part replaces 01107-06108.

01500-06107

1
Out of stock

5

WASHER (6.5X18X1.0) | N,EN; 6.5x18x1

09160-06028

1
Out of stock

6

NO DESCRIPTION AVAILABLE | N,EN This part replaces 62100-44031.

62100-44411

2
Out of stock

7

NUT | N,EN This part replaces 08313-11108.

08313-10107

4
Out of stock

8

WASHER | N,EN This part replaces 08322-11128.

08322-01127

4
Out of stock

9

WASHER, FRONT AXLE | N,EN; 12.5x24x3.2 This part replaces 09160-12012.

09160-12082

1
Out of stock

10

WASHER, LOWER (10.5X24X2.3) | N,EN; 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

4
Out of stock

11

WASHER | N,EN; 10.5x24x3.2 This part replaces 09160-10033.

09160-10128-XC0

4
Out of stock

12

WASHER | N,EN This part replaces 09160-12004.

09160-12088

2
Out of stock
