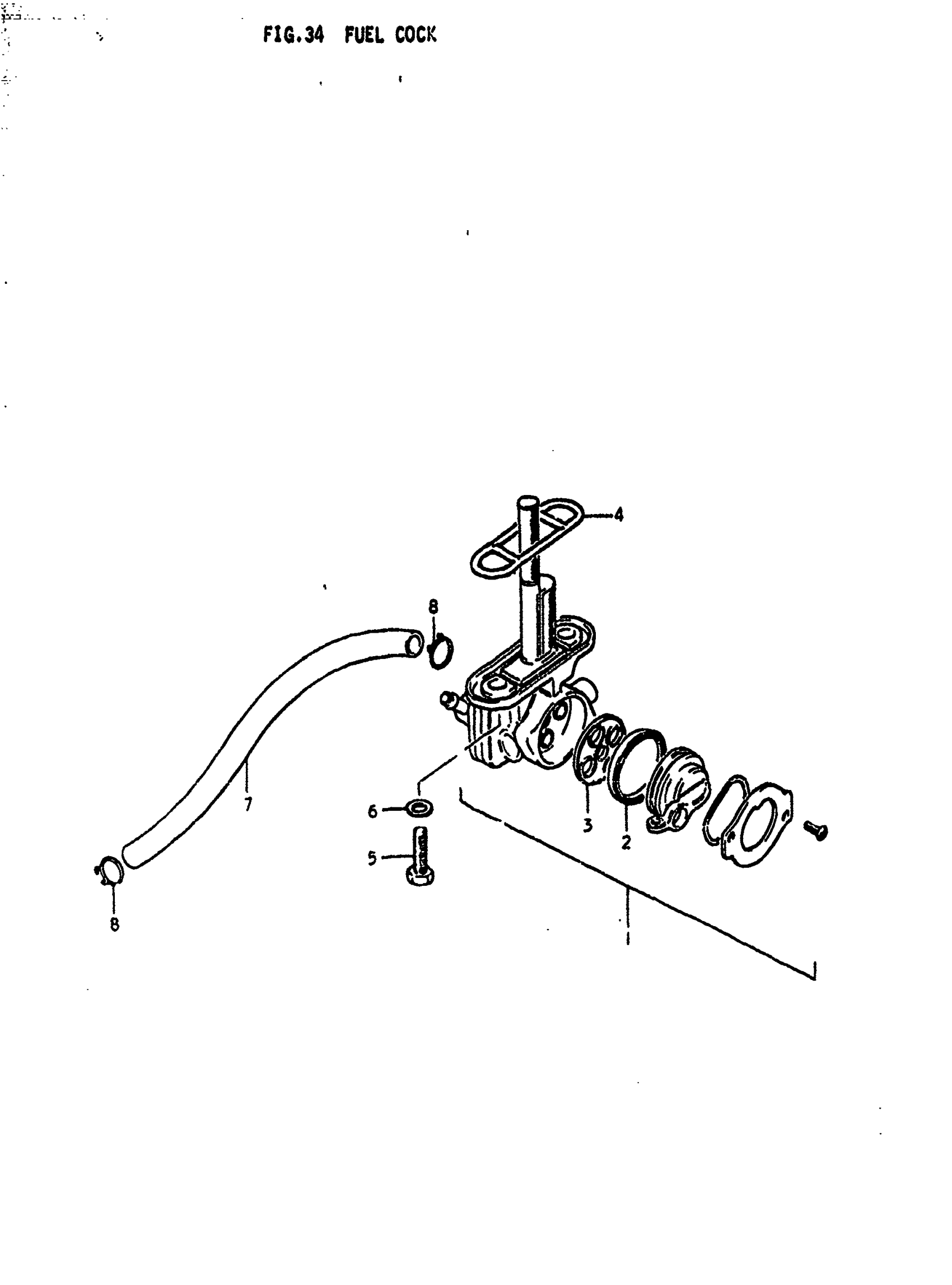

Suzuki GS425E (1979) FUEL COCK Diagram

#

Description

Price

1

COCK ASSY, FUEL | N,EN; Includes Item(s) 2 - 4

44300-44011

Unavailable

2

V SEAL,FUEL COC | N,EN This part replaces 44353-33154.

44353-33155

$5.25

3

GASKET | N,EN This part replaces 44341-33150.

44341-33151

$2.19

4

O RING | N,EN

44348-31051

Unavailable

5

BOLT | N,EN This part replaces 09128-06006.

09128-06057

$1.65

6

GASKET (5.8X13X1.2) | N,EN This part replaces 09168-06010.

09168-06023

$2.35

7

HOSE(7X10.2X200 | N,EN This part replaces 09343-07026.

09352-70104-00B

$15.32

8

CLIP | N,EN

09401-10401

$1.49
