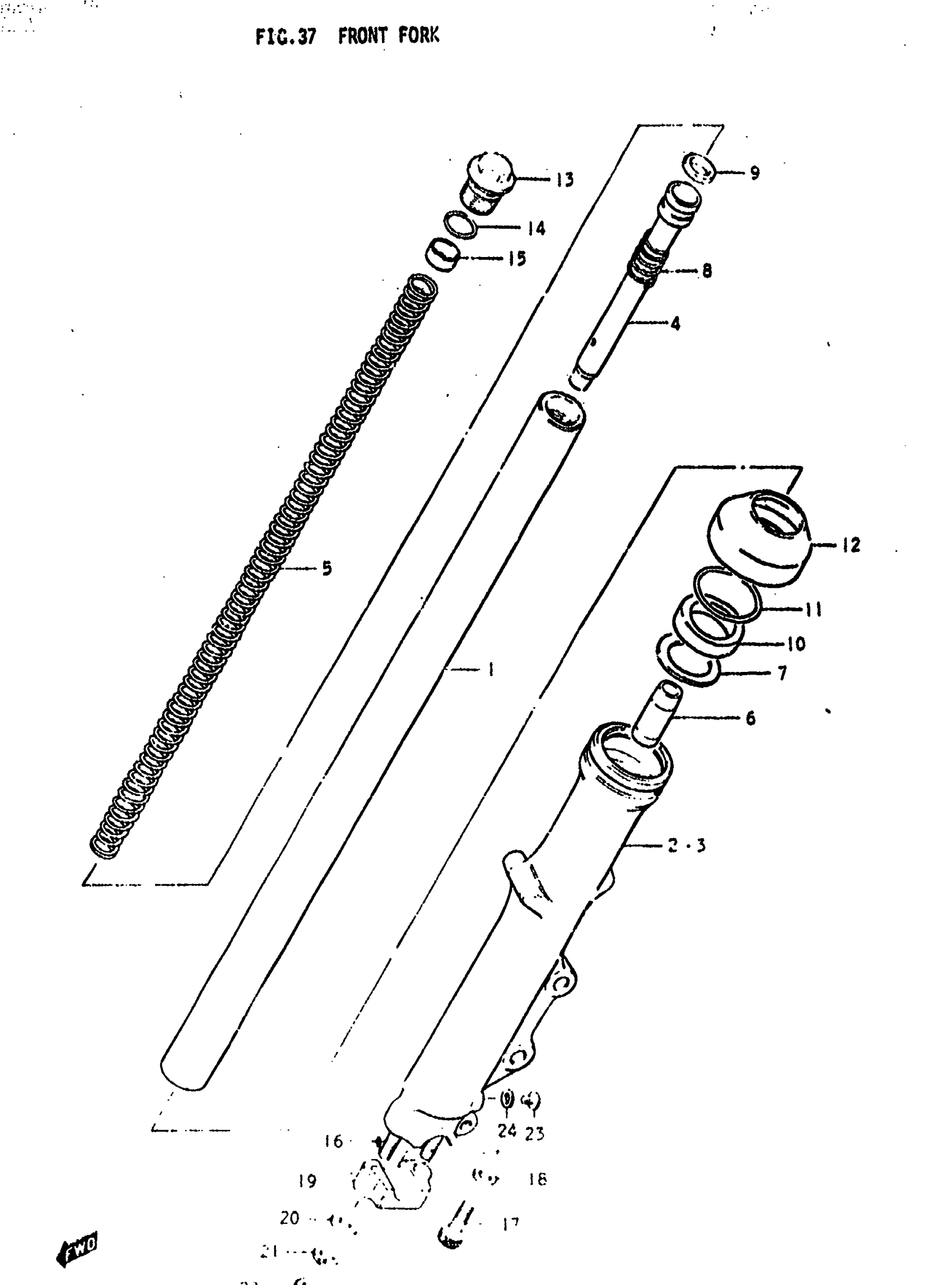

Suzuki GS425E (1979) FRONT FORK Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | N,EN; TO:51103-44034 USE WITH 54740-18410 This part replaces 51103-44033.

51103-44034

Unavailable

0

DUMPER ASSY, FRONT FORK LH | N,EN; Includes Item(s) 1 - 24

51104-44032

Unavailable

1

INNER TUBE | N,EN

51110-44030

Unavailable

2

OUTER TUBE, LH | N,EN

51140-44031

Unavailable

3

OUTER TUBE, RH | N,EN; TO: 51130-41033 USE WITH 54740-18410 This part replaces 51130-44032.

51130-44033

Unavailable

4

CYLINDER | N,EN This part replaces 51146-44031.

51146-38300

Unavailable

5

NO DESCRIPTION AVAILABLE | N,EN This part replaces 51171-44030.

51171-11500

Unavailable

6

PIECE, OIL LOCK | N,EN

51195-44030

Unavailable

7

SPACER, SEAL | N,EN

51168-44030

$5.22

8

SPRING | N,EN

51177-36030

Unavailable

9

RING, PISTON | N,EN

51196-33130

$8.12

10

OIL SEAL | N,EN This part replaces 51153-44031.

51153-02B00

$20.06

11

RING, OIL SEAL STOPPER | N,EN This part replaces 51156-33130.

51156-02B00

$5.36

12

DUST SEAL | N,EN This part replaces 51571-33131.

51571-37310

$20.15

13

BOLT | N,EN

51351-33130

Unavailable

14

O RING | N,EN

51181-31030

$4.37

15

SPACER, SPRING | N,EN

51176-44030

Unavailable

16

BOLT,STUD | N,EN This part replaces 01421-08258.

01421-0825A

$2.03

17

BOLT | N,EN This part replaces 51147-31030.

51147-48130

$4.34

18

O RING | N,EN This part replaces 51148-31030.

51148-36011

$3.56

19

HOLDER, AXLE | N,EN

51132-31030

Unavailable

20

WASHER | N,EN This part replaces 08322-21088.

08322-01087

$2.13

21

.LOCK WASHER | N,EN This part replaces 08321-21088.

08321-01087

$2.13

22

NUT | N,EN This part replaces 08310-12088.

08310-00087

$2.13

23

SCREW | N,EN This part replaces 02111-04067.

02112-0406B

$1.55

24

GASKET | EN

51183-33030

Unavailable
