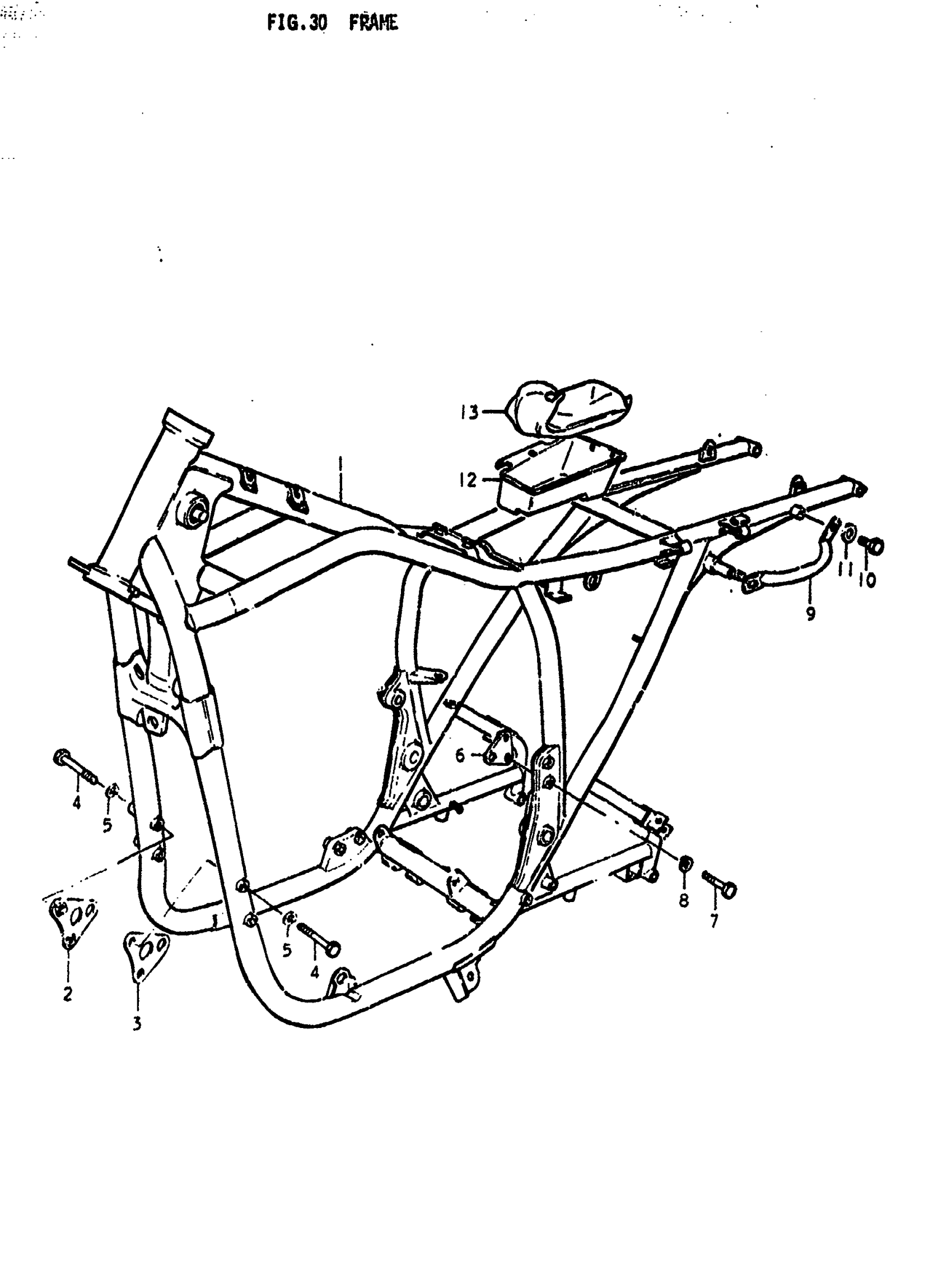

Suzuki GS425E (1979) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | N,EN This part replaces 41100-44003-019.

41100-44005-019

Unavailable

2

PLATE, ENGINE MOUNTING NO.1 RH | N,EN

41930-44000-019

Unavailable

3

PLATE, ENGINE MOUNTING NO.1 LH | N,EN

41940-44000-019

Unavailable

4

BOLT | N,EN This part replaces 01107-08608.

01500-0860B

$3.49

5

.LOCK WASHER | N,EN This part replaces 08321-21088.

08321-01087

$2.13

6

PLATE, ENGINE MOUNTING NO.2 | N,EN

41910-44000-019

Unavailable

7

BOLT | N,EN This part replaces 01107-08408.

01500-0840A

$2.60

8

.LOCK WASHER | N,EN This part replaces 08321-21088.

08321-01087

$2.13

9

GRIP, FRAME HANDLE | N,EN

41611-44000

Unavailable

10

PLUG, DRAIN | N,EN This part replaces 01107-08168.

01500-0816B

$2.50

11

WASHER | N,EN This part replaces 08322-21088.

08322-01087

$2.13

12

HOLDER, TOOL | N,EN This part replaces 41551-44000.

41551-44001

Unavailable

13

TOOL SET | N,EN This part replaces 09800-00193.

09800-06801

Unavailable
