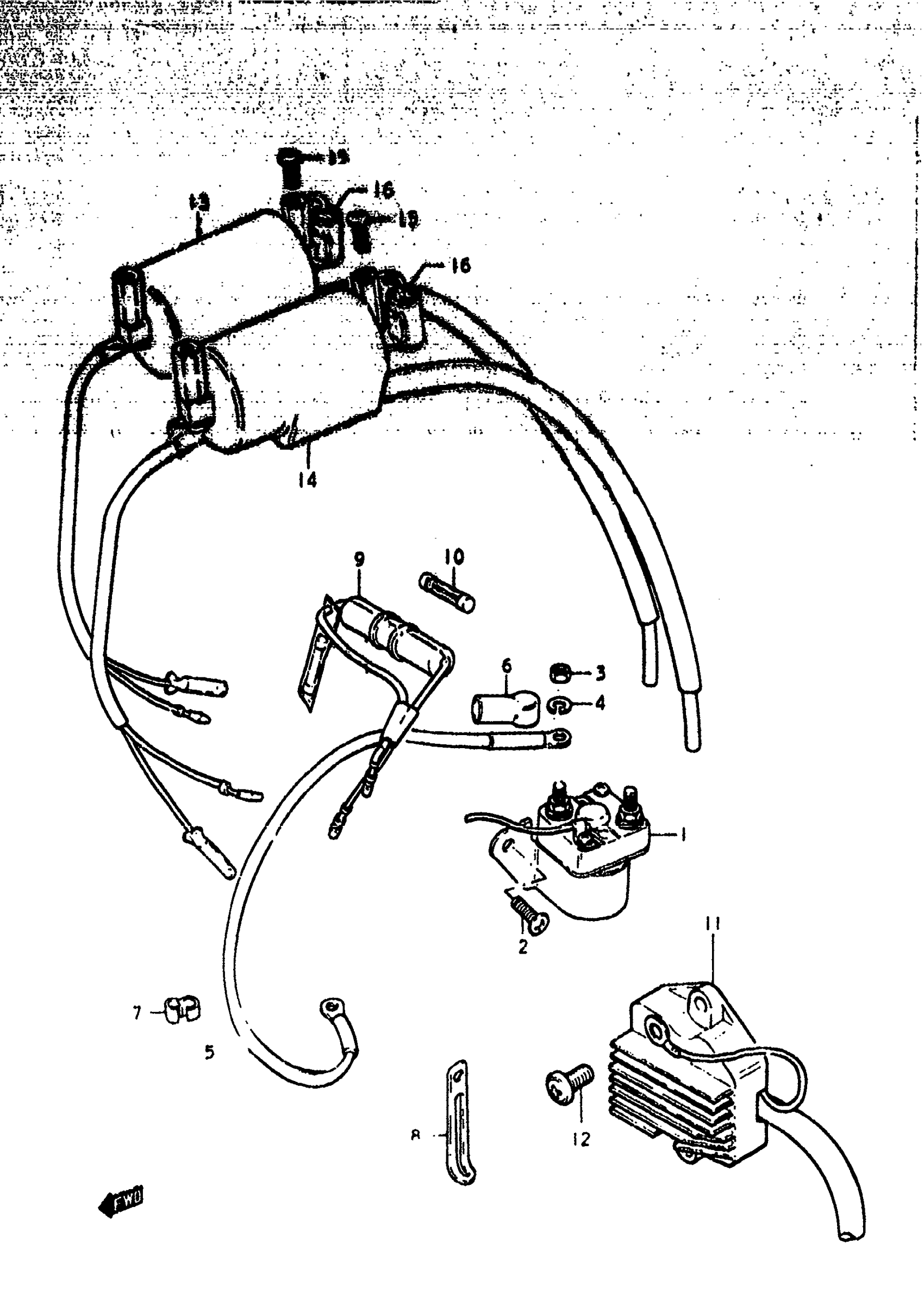

Suzuki GS425E (1979) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STAR | N,EN This part replaces 31800-37020.

31800-37021

$71.42

2

SCREW | N,EN This part replaces 02112-06088.

02112-06087

$1.49

3

.NUT | N,EN This part replaces 08310-22068.

08310-00067

$2.13

4

LOCK WASHER | N,EN This part replaces 08321-21068.

08321-01067

$2.13

5

LEAD WIRE, STARTING MOTOR | N,EN

33850-47010

Unavailable

6

CAP, STARTER MOTOR | N,EN This part replaces 31861-35100.

31861-48B10

$6.55

7

CLIP | N,EN

09408-00002

$2.30

8

CLAMP | N,EN This part replaces 09404-06401.

09404-06039

$1.74

9

FUSE CASE ASSY | N,EN; Includes Item(s) 10 This part replaces 36740-15010.

36740-15011

$9.38

10

FUSE | N,EN; 15A

09481-15001

$2.06

11

RECTIFIER ASSY | N,EN This part replaces 32800-44030.

32800-47121

Unavailable

12

SCREW | N,EN This part replaces 02112-06168.

02112-06167

$1.49

13

NO DESCRIPTION AVAILABLE | N,EN; KOKUSANN,EN; KOKUSAN This part replaces 33410-44020.

33410-44021

Unavailable

14

NO DESCRIPTION AVAILABLE | N,EN; KOKUSANN,EN; KOKUSAN This part replaces 33420-44020.

33410-44021

Unavailable

15

SCREW | N,EN This part replaces 02112-05108.

02112-05107

$1.49

16

CONDENSER | N,EN; KOKUSAN

33421-44020

Unavailable
