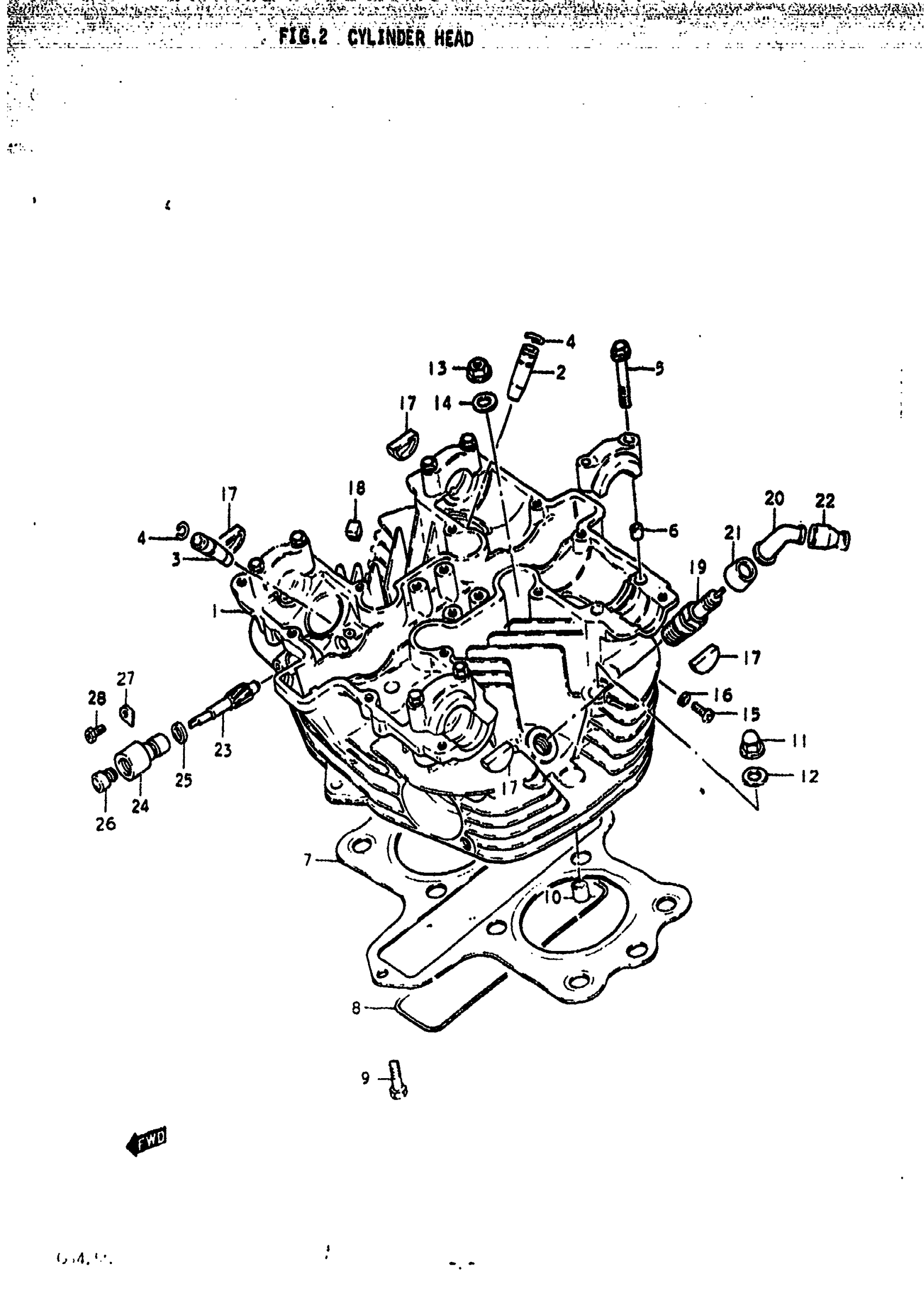

Suzuki GS425E (1979) CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD SET | N,EN; Includes Item(s) 2 - 6

11100-44813

Unavailable

2

GUIDE, INTAKE VALVE | N,EN This part replaces 11115-45722.

11115-45740

$40.73

3

GUIDE, EXHAUST VALVE | N,EN This part replaces 11116-45722.

11116-45740

Unavailable

4

RING, VALVE GUIDE | N,EN

09381-10003

$2.47

5

BOLT (6X39) | N,EN

09103-06026

$1.98

6

PIN | N,EN

09206-08001

$1.78

7

GASKET,CYLINDER | N,EN This part replaces 11141-44052.

11141-44053

Unavailable

8

O RING | N,EN

09280-99003

Unavailable

9

BOLT | N,EN This part replaces 01517-06308.

01550-06307

$2.69

10

PIN | N,EN

04211-11189

$1.78

11

NUT | N,EN

09159-10026

$6.20

12

GASKET | N,EN

09168-10017

$3.04

13

NUT, WHEEL SET | N,EN This part replaces 08316-16108.

08316-10107

$2.39

14

WASHER | N,EN; 10.5x22x2.3

09160-10039

$2.26

15

SCREW | N,EN This part replaces 02112-05208.

02112-05207

$1.97

16

GASKET | N,EN

09168-05010

$1.71

17

PLUG, CYLINDER HEAD SIDE | N,EN

09241-23002

$6.17

18

PAD, RUBBER | N,EN This part replaces 11152-45000.

11152-38A00

$3.37

19

SPARK PLUG | N,EN; NGK, B-8ES

09482-00091

$3.01

19

SPARK PLUG W24E | N,EN; ND, W24ES This part replaces 09482-00092.

09482-00247-111

Unavailable

20

CAP, SPARK PLUG | N,EN

33510-43010

$24.99

21

SEAL, SPARK PLUG | N,EN

33541-69010

$4.37

22

SEAL,HIGH TENSION CORD (SIDE) | N,EN This part replaces 33542-98000.

33542-38B00

$4.34

23

GEAR, TACHO. DRIVEN (NT:10) | N,EN; NT:16 This part replaces 26431-45001.

26431-45002

$48.23

24

SLEEVE | N,EN This part replaces 26441-45000.

26441-49000

$30.58

25

SEAL BARD | N,EN

26451-45000

$5.05

26

O, SEAL | N,EN This part replaces 09289-05001.

09289-05002

$8.43

27

PLATE, GEAR SLEEVE | N,EN

26449-33000

$4.35

28

SCREW | N,EN

09128-05101

$1.49
