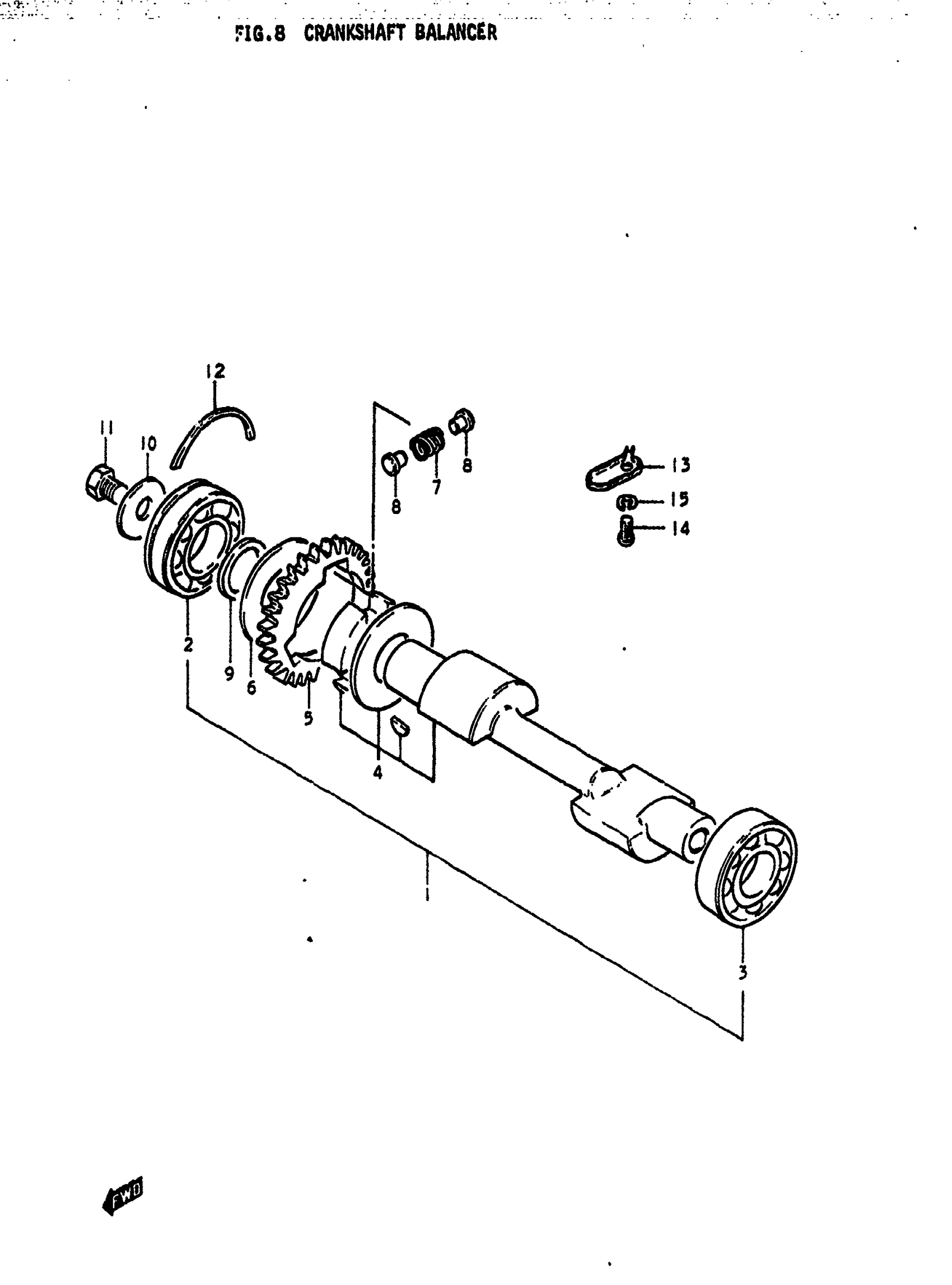

Suzuki GS425E (1979) CRANKSHAFT BALANCER Diagram

#

Description
Price

1

BALANCER, CRANKSHAFT | N,EN; Includes Item(s) 2 - 9

12650-44000

Unavailable

2

BEARING, RH | N,EN

09262-30016

Unavailable

3

B1 25X62X17 BEA | N,EN This part replaces 09262-25034.

09262-25098

$63.88

4

BALANCER SHAFT SET | N,EN

12600-44820

Unavailable

5

GEAR, DRIVEN (NT:46) | N,EN; NT:46 This part replaces 12666-44000.

12666-44001

Unavailable

6

WASHER | N,EN

09160-31001

Unavailable

7

SPRING | N,EN

09440-15007

Unavailable

8

PIN | N,EN

09201-08001

Unavailable

9

NO DESCRIPTION AVAILABLE | N,EN This part replaces 08211-30422.

09181-30212

Unavailable

10

WASHER | N,EN This part replaces 09160-12034.

09160-12076

Unavailable

11

BOLT | N,EN This part replaces 01107-12168.

01500-1216B

$3.95

12

C RING | N,EN

09390-62009

$4.68

13

PLATE, OIL RESERVE | N,EN

12699-44000

Unavailable

14

SCREW | N,EN This part replaces 02112-06108.

02112-06107

$1.49

15

LOCK WASHER | N,EN This part replaces 08321-21068.

08321-01067

$2.13
