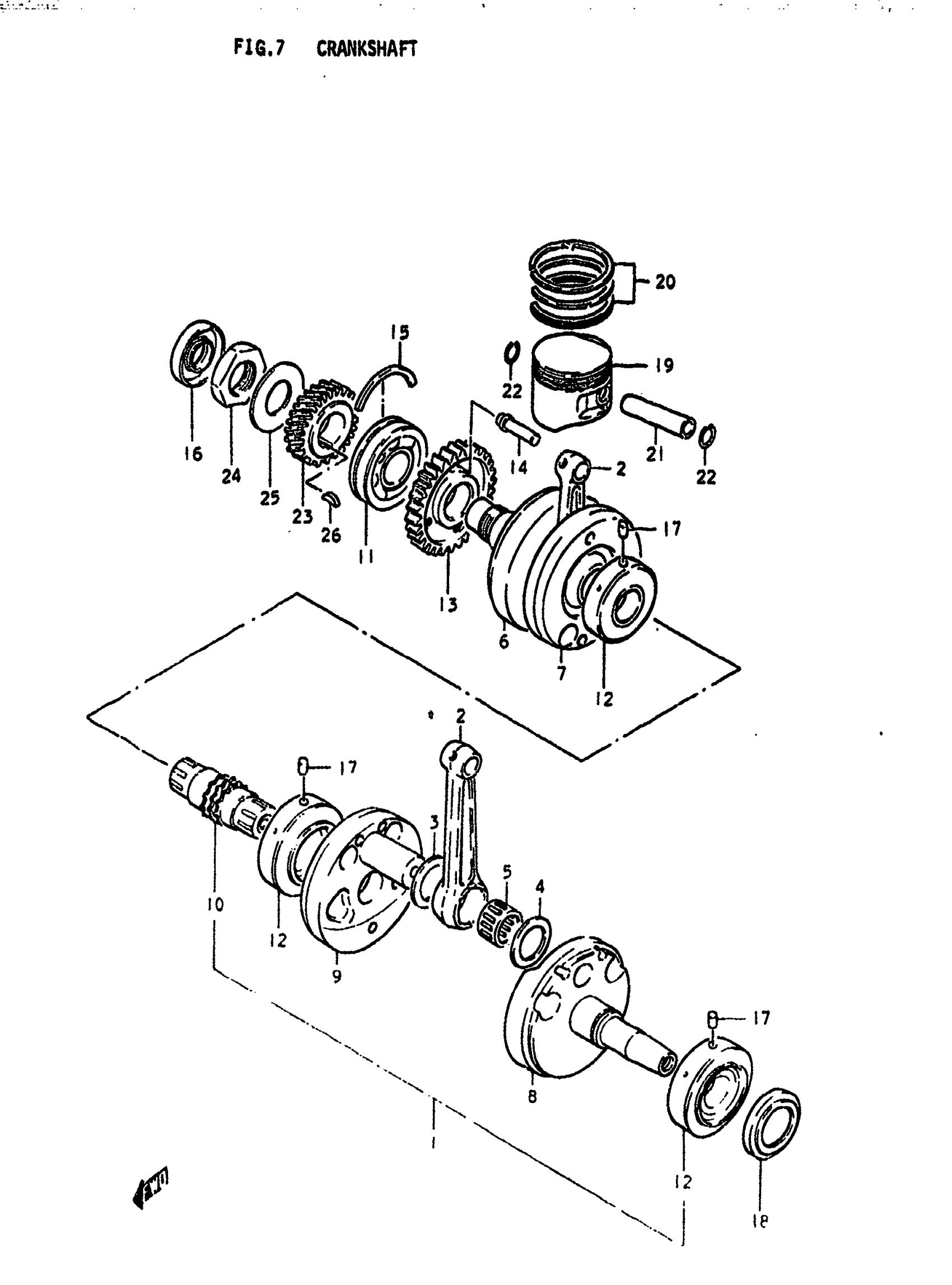

Suzuki GS425E (1979) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET | N,EN; Includes Item(s) 2 - 14

12200-44003

Unavailable

2

ROD, CONNECTING | N,EN

12161-44001

Unavailable

3

WASHER | N,EN; 28x48x2

09160-28009

Unavailable

4

WASHER | N,EN; 28x48x1

09160-28010

Unavailable

5

BEARING | N,EN

09263-28010

Unavailable

6

CRANKSHAFT, RH | N,EN

12220-44001

Unavailable

7

WEB, LH | N,EN

12230-44002

Unavailable

8

CRANKSHAFT, LH | N,EN

12261-44001

Unavailable

9

WEB, LH | N,EN

12230-44002

Unavailable

10

SHAFT, TIMING CHAIN DRIVE | N,EN

12281-44000

Unavailable

11

BEARING | N,EN

09262-30033

Unavailable

12

BEARING | N,EN This part replaces 09264-32002.

09264-32009

$201.55

13

GEAR, CRANK BALANCER DRIVE | N,EN; NT:46

12661-44001

Unavailable

14

PIN | N,EN

09209-10014

Unavailable

15

C RING | N,EN

09390-72004

Unavailable

16

OIL SEAL, RH | N,EN

09283-25062

Unavailable

17

PIN | N,EN

04221-07129

$1.86

18

OIL SEAL, STARTER CLUTCH GEAR | N,EN; 48x60x8 This part replaces 09289-48001.

09289-48002

$10.77

19

PISTON | N,EN

12111-45100

Unavailable

19

PISTON | N,EN; 05:0.5

12111-45100-050

Unavailable

19

PISTON | N,EN; OS:1.0

12111-45100-100

Unavailable

20

PISTON RING SET | N,EN

12140-45100

Unavailable

20

PISTON RING SET | N,EN; OS:0.5

12140-45100-050

Unavailable

20

PISTON RING SET | N,EN; OS:1.0

12140-45100-100

Unavailable

21

PIN, PISTON | N,EN

12151-29001

$13.92

22

SNAP RING | N,EN This part replaces 09381-16002.

09381-16001

$1.67

23

GEAR, PRIMARY DRIVE | N,EN; NT:28

21111-44000

Unavailable

24

NUT | N,EN This part replaces 09140-28001.

09140-28003

$6.15

25

WASHER | N,EN

09164-28001

Unavailable

26

NUT | N,EN

08341-31059

$2.48
