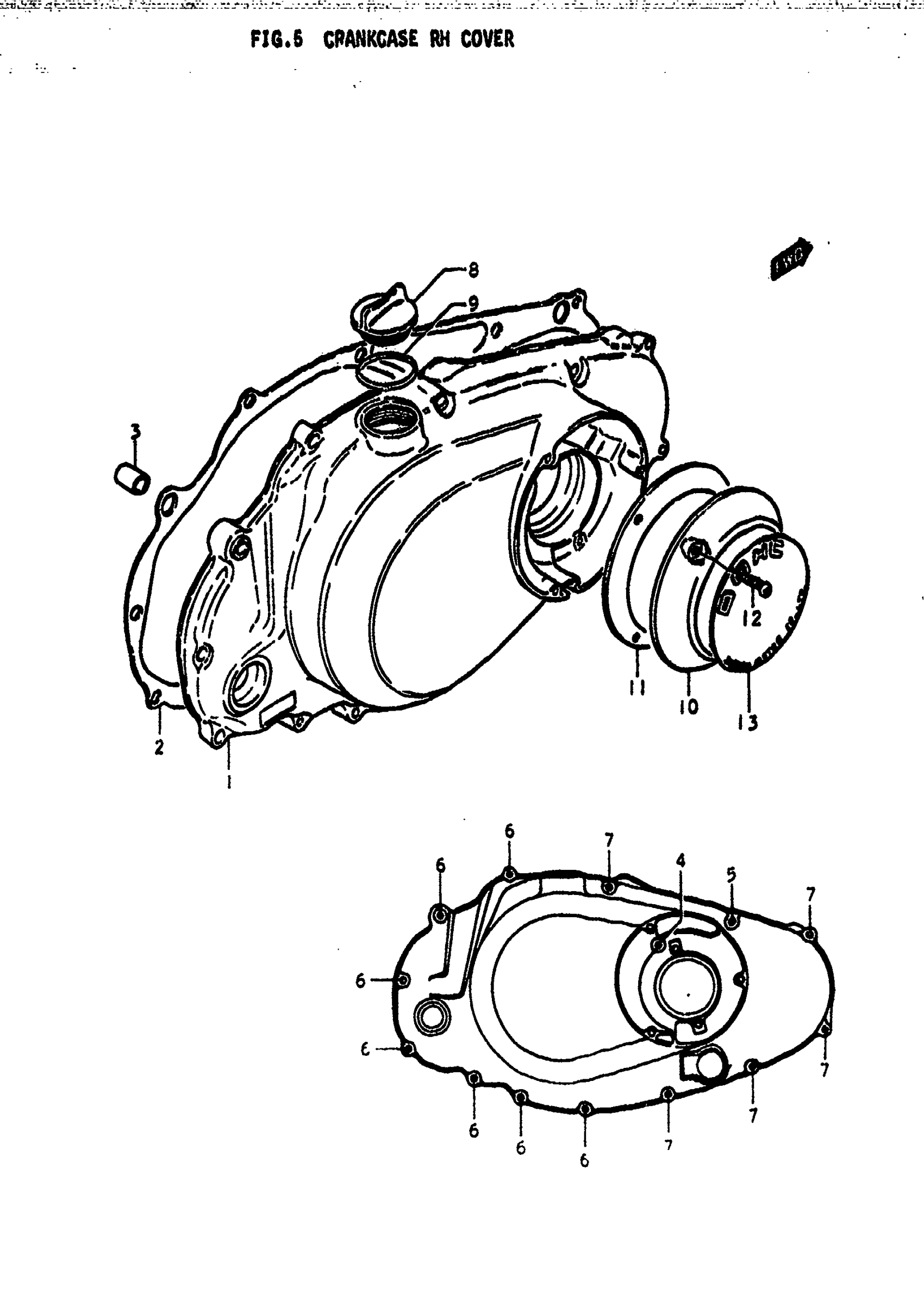

Suzuki GS425E (1979) CRANKCASE RH COVER Diagram

#

Description
Price

1

COVER, CLUTCH | N,EN

11340-44001

Unavailable

2

GASKET,CLUTCH C | N,EN This part replaces 11482-44000.

11482-44001

Unavailable

3

PIN | N,EN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW | N,EN This part replaces 02112-06608.

02112-06607

$2.57

5

SCREW (6X45) | N,EN This part replaces 02112-06458.

02112-06457

$1.78

6

SCREW | N,EN This part replaces 02112-06358.

02112-06357

$1.78

7

SCREW | N,EN This part replaces 02112-06258.

02112-06257

$1.78

8

CAP, OIL FILLER | N,EN This part replaces 09259-30001.

09200-30810

$10.15

9

O RING | N,EN

09280-32005

$1.99

10

COVER, CONTACT BREAKER | N,EN This part replaces 11381-44000.

11381-44003

Unavailable

11

GASKET | N,EN This part replaces 11491-44000.

11491-44001

Unavailable

12

SCREW | N,EN This part replaces 02112-05208.

02112-05207

$1.97

13

EMBLEM | N,EN; "DOHC" This part replaces 68235-45100.

68235-45200

Unavailable
