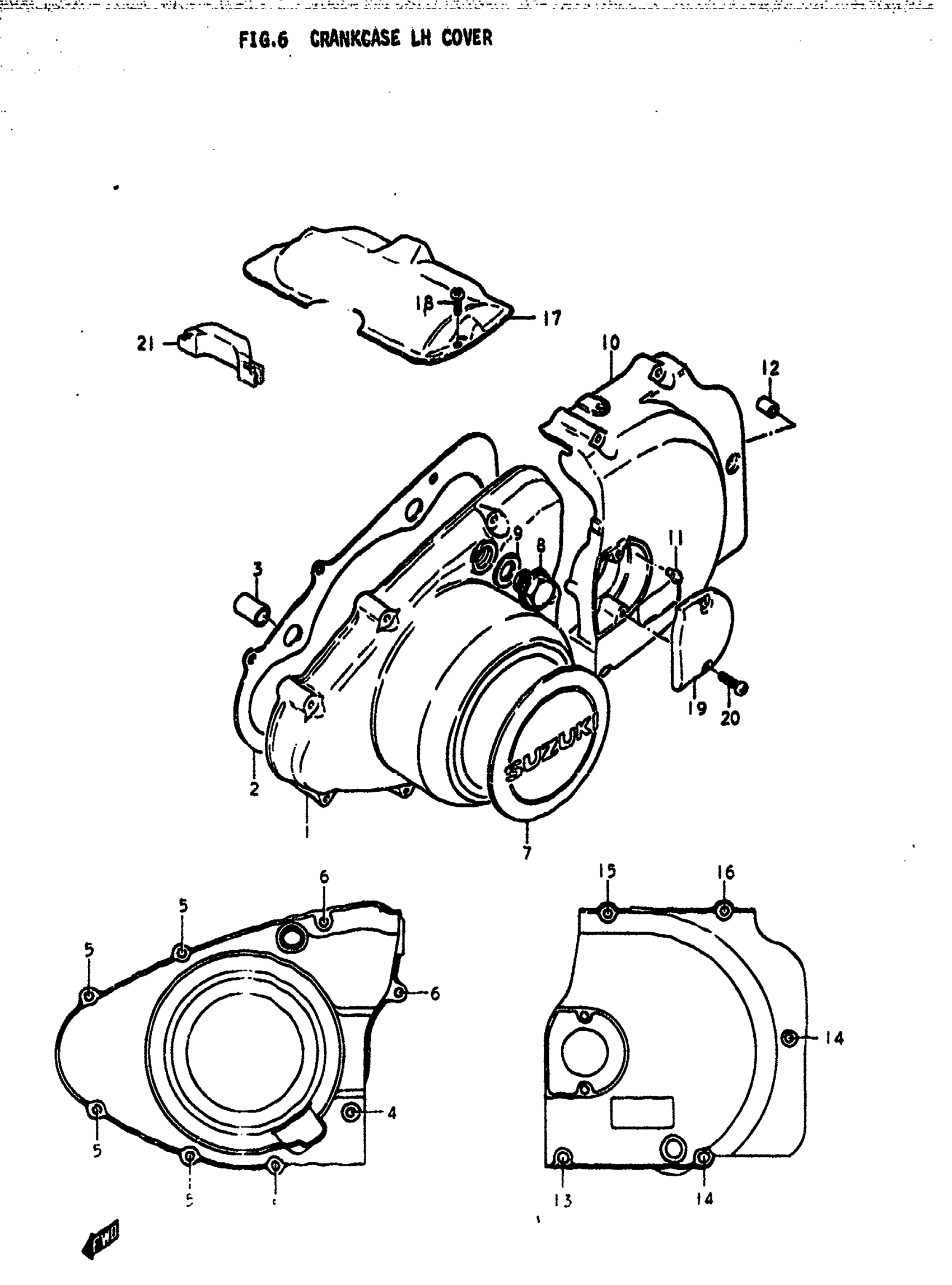

Suzuki GS425E (1979) CRANKCASE LH COVER Diagram

#

Description
Price

1

COVER, GENERATOR | N,EN

11351-44000

Unavailable

2

GASKET,MAGNETO | N,EN This part replaces 11483-44000.

11483-44001

Unavailable

3

PIN | N,EN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW (6X40) | N,EN This part replaces 02112-06408.

02112-06407

$1.78

5

SCREW | N,EN This part replaces 02112-06358.

02112-06357

$1.78

6

SCREW | N,EN

02112-06307

$1.97

7

EMBLEM | N,EN This part replaces 68233-45100.

68233-45200

$18.50

8

PLUG | N,EN This part replaces 09247-14012.

09247-14026

$3.76

9

GASKET | N,EN

09168-14004

$1.83

10

COVER, ENGINE SPROCKET | N,EN; Includes Item(s) 11

11300-44820

Unavailable

11

GREASE NIPPLE | N,EN

08351-11009

$7.51

12

PIN | N,EN

04211-09129

$1.65

13

SCREW | N,EN This part replaces 02112-06658.

02112-06657

$2.62

14

SCREW | N,EN This part replaces 02112-06608.

02112-06607

$2.57

15

6X50 CROSS SCRE | N,EN This part replaces 02112-06508.

02112-06507

$1.99

16

SCREW | N,EN

02112-06307

$1.97

17

NO DESCRIPTION AVAILABLE | N,EN This part replaces 11382-44001.

11382-44002

Unavailable

18

SCREW | N,EN This part replaces 02112-05088.

02112-05087

$1.49

19

CAP, CLUTCH RELEASE | N,EN

11387-44000

Unavailable

20

SCREW | N,EN This part replaces 02112-05168.

02112-05167

$1.97

21

GROMMET | N,EN

11498-44000

Unavailable
