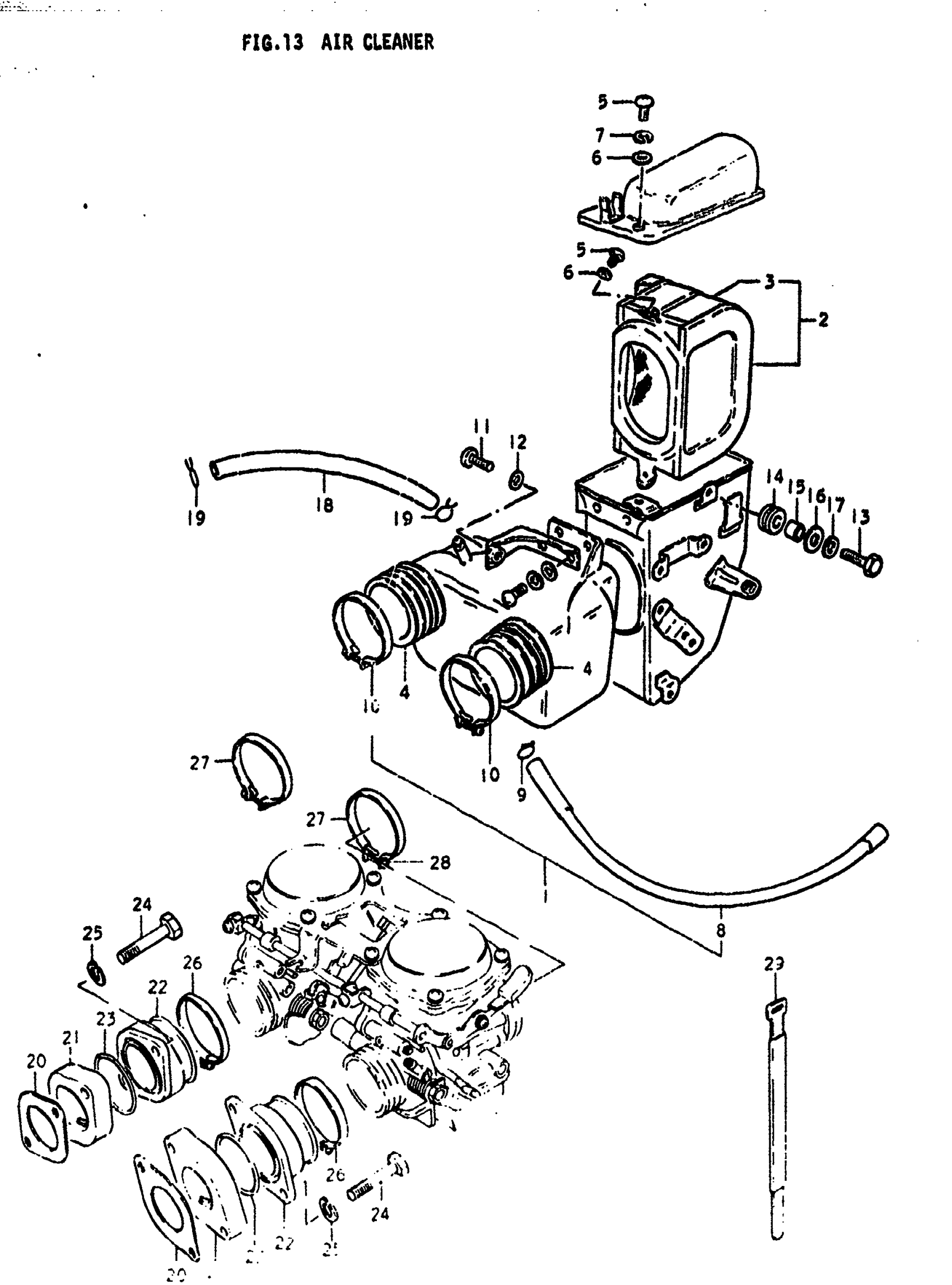

Suzuki GS425E (1979) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | N,EN; Includes Item(s) 2 - 10

13700-44011

Unavailable

2

FILTER | N,EN

13780-44010

Unavailable

3

ELEMENT | N,EN

13781-44010

Unavailable

4

HOSE, INLET | N,EN

13722-44010

Unavailable

5

SCREW | N,EN This part replaces 02112-05108.

02112-05107

$1.49

6

WASHER | N,EN This part replaces 08322-21058.

08322-01057

$2.13

7

LOCK WASHER | N,EN This part replaces 08321-21058.

08321-0105A

$1.84

8

HOSE, DRAIN | N,EN This part replaces 13791-44010.

13871-00020

Unavailable

9

CLIP | N,EN This part replaces 13795-44010.

09401-14301

$2.35

10

..CLAMP | N,EN This part replaces 09402-60306.

09402-60208

$5.11

11

SCREW | N,EN This part replaces 02112-06108.

02112-06107

$1.49

12

.WASHER | N,EN This part replaces 08322-11068.

08322-0106B

$2.26

13

BOLT | N,EN This part replaces 01107-06208.

01500-06207

$2.28

14

CUSHION (8X18X10) | N,EN This part replaces 09320-08001.

09320-08527

$2.06

15

SPACER (6.5X9X9) | N,EN This part replaces 09180-06011.

09180-06263

$2.03

16

WASHER | N,EN This part replaces 09160-06007.

09160-06084

$1.78

17

LOCK WASHER | N,EN This part replaces 08321-21068.

08321-01067

$2.13

18

HOSE,11X15X2000 | N,EN This part replaces 09343-11005.

09352-11154-00B

$48.35

19

CLIP | N,EN

09401-14301

$2.35

20

GASKET, CARBURETOR | N,EN

13125-44001

Unavailable

21

INSULATOR | N,EN

13129-44001

Unavailable

22

PIPE, INTAKE | N,EN

13110-44001

Unavailable

23

O-RING (D:2.4,ID:39.7) | N,EN This part replaces 09280-40003.

09280-40020

$2.91

24

BOLT | N,EN This part replaces 01107-06358.

64455-07L00

$1.59

25

LOCK WASHER | N,EN This part replaces 08321-21068.

08321-01067

$2.13

26

CLAMP | N,EN

09402-54303

$3.91

27

CLAMP | N,EN; Includes Item(s) 28

09402-58306

$4.77

28

NO DESCRIPTION AVAILABLE | N,EN This part replaces 03111-04258.

03112-04259

Unavailable

29

CLAMP | N,EN This part replaces 09407-18301.

09407-18302

$2.28
