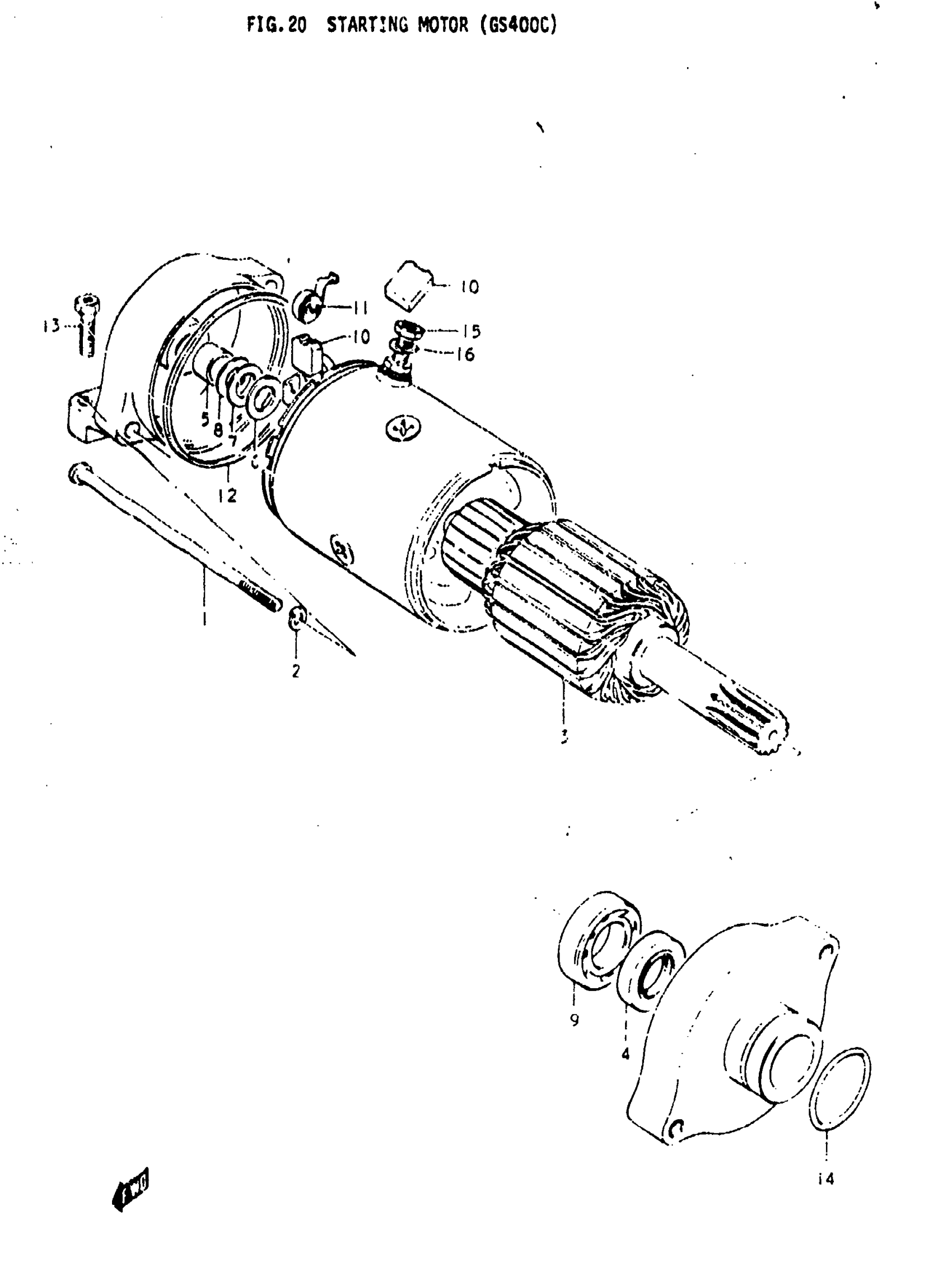

Suzuki GS400X (1978) STARTING MOTOR (GS400C) Diagram

#

Description
Price

0

MOTOR ASSY, STARTING | ND; Includes Item(s) 1 - 12 This part replaces 31100-45010.

31100-49050

Unavailable

1

BOLT This part replaces 31281-31010.

31280-06B00

Unavailable

2

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

3

ARMATURE

31311-45010

Unavailable

4

OIL SEAL This part replaces 31153-45010.

31153-43400

$24.20

5

BUSHING

31152-65010

Unavailable

6

SHIM, (1)

31361-65010

Unavailable

7

SHIM, (2) | AR

31362-51010

Unavailable

8

SHIM, (3) | AR

31363-51010

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 31155-45010.

31155-45C00

Unavailable

10

BRUSH, (+)

31131-65011

Unavailable

11

SPRING

31135-65010

$4.52

12

GASKET

31264-65010

Unavailable

13

BOLT, STARTING MOTOR This part replaces 09128-06012.

09103-06212

$2.47

14

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

$1.55

15

.NUT This part replaces 08310-22068.

08310-00067

$2.13

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
