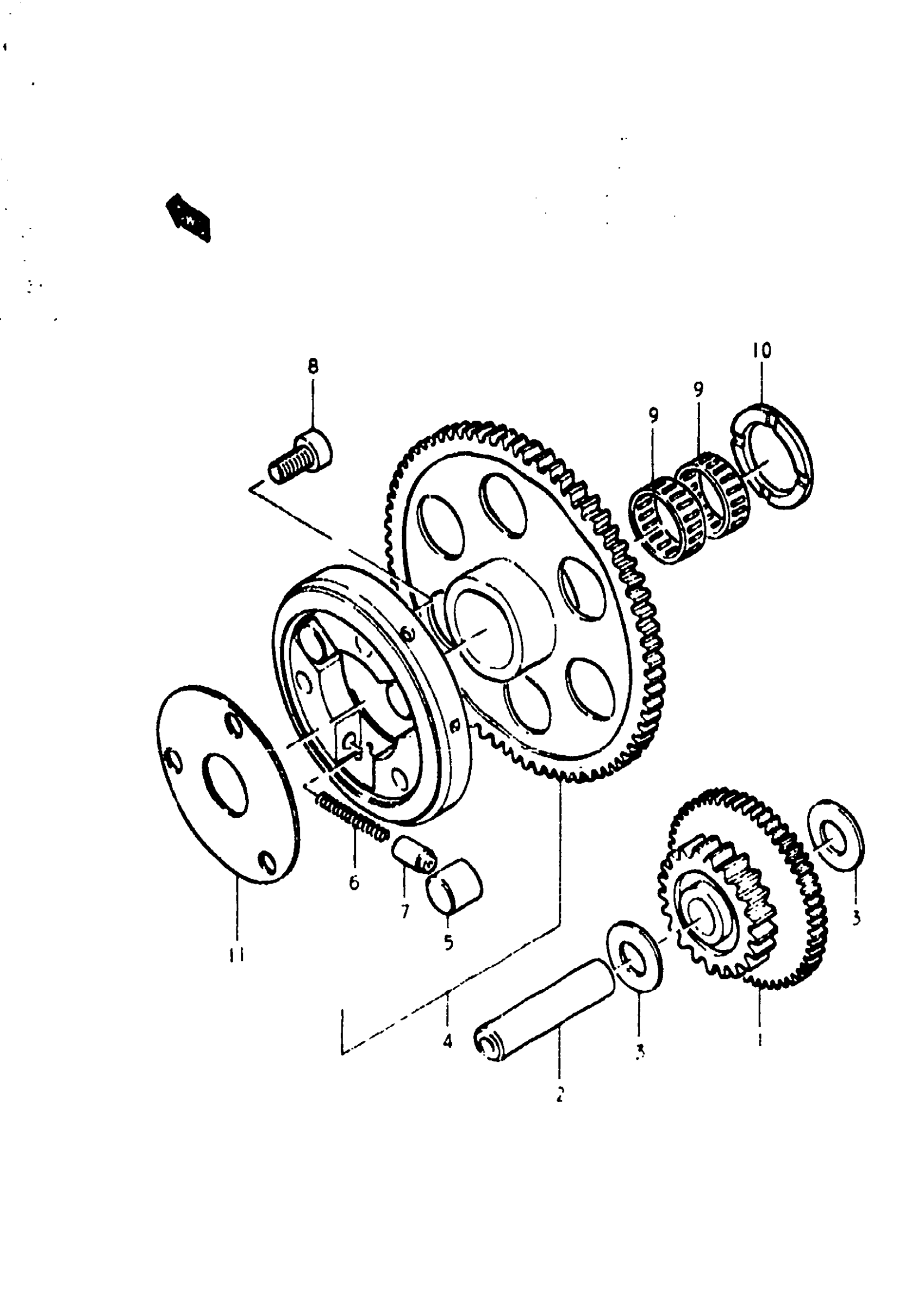

Suzuki GS400X (1978) STARTER CLUTCH Diagram

#

Description

Price

1

GEAR, TACHOMETER IDLE | C; NT:41/23

12611-44000

Unavailable

2

PIN | C,XC

09206-13003

$15.70

3

WASHER | C; 13.3x25x0.85

09160-13003

$1.99

4

STARTER CLUTCH SET | C; Includes Item(s) 5 - 7

12600-44810

Unavailable

5

ROLLER | C

09261-15001

$3.29

6

SPRING | C

09440-04015

$2.22

7

PIECE, PUSH | C

12633-31000

$8.77

8

BOLT | C This part replaces 09106-08006.

07130-0816A

$3.16

9

BEARING | C

09263-25020

$16.65

10

WASHER,25X38X1 | C; 25x38x2.5 This part replaces 09160-25019.

09160-25080

$19.37

11

SHIM | C

12649-45000

$9.17
