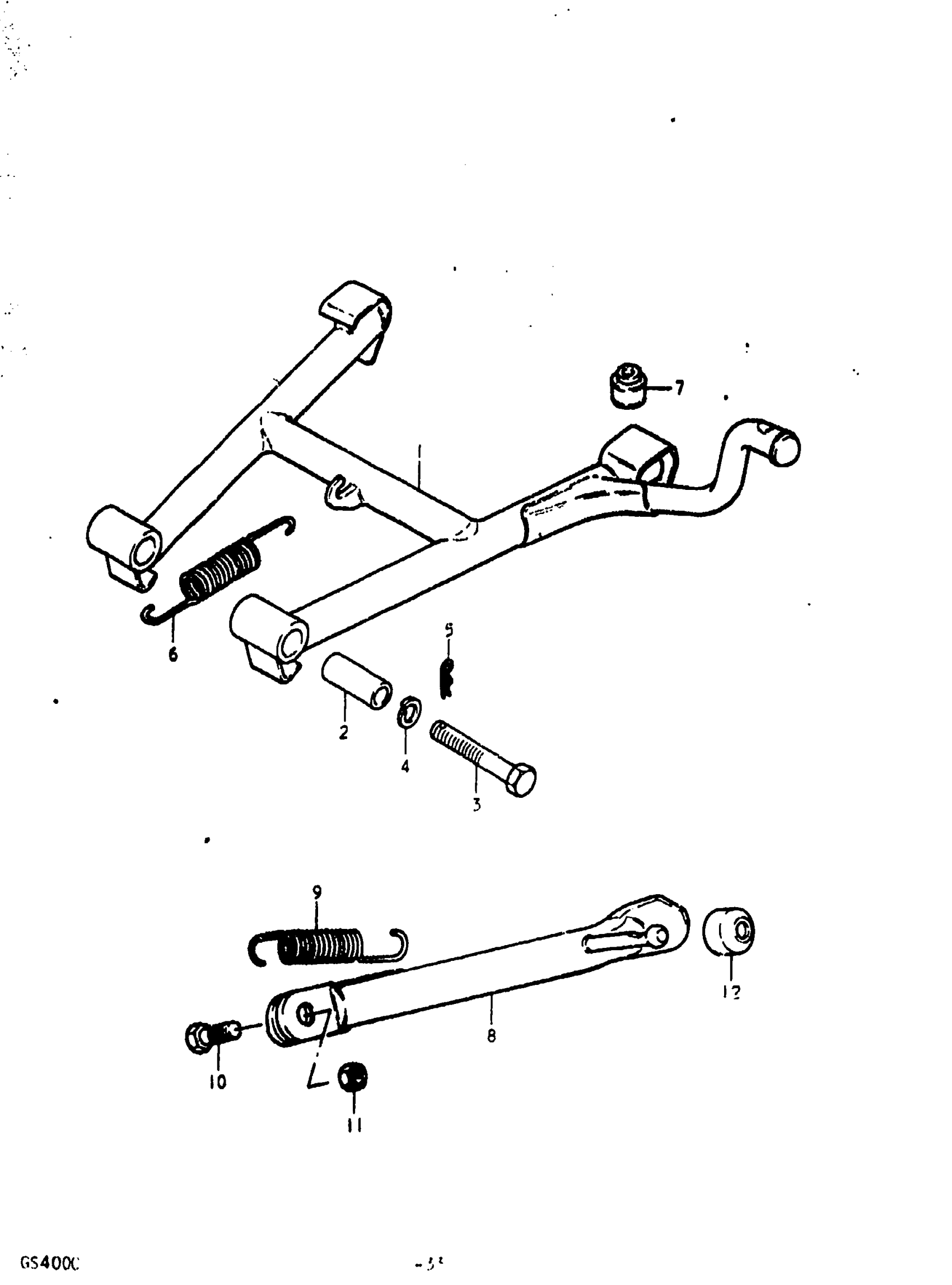

Suzuki GS400X (1978) STAND Diagram

#

Description
Price

1

STAND, CENTER | C,XC

42100-44000

Unavailable

2

SPACER | C,XC; 10.7x15.9x36

09180-10040

$2.56

3

BOLT, 10 X 65 | C,XC This part replaces 09101-10018.

09101-10030

Unavailable

4

LOCK WASHER | C,XC This part replaces 08321-21108.

08321-01107

$1.84

5

CLIP | C,XC This part replaces 09385-10001.

09385-10005

$1.56

6

SPRING, CENTER | C,XC This part replaces 09443-18002.

09443-18006-XC0

$7.82

7

CUSHION | C,XC

09321-10001

$2.61

8

STAND, PROP | C,XC; OPT 10x30XC; OPT 10x30

42310-44000

Unavailable

9

SPRING | C,XC; OPT 10x30XC; OPT 10x30 This part replaces 09443-17005.

09443-17008-XC0

$6.98

10

BOLT | C,XC; OPT 10x30XC; OPT 10x30

09100-10067

$2.61

11

NUT | C,XC; OPT 10x30XC; OPT 10x30 This part replaces 08310-22108.

08310-00107

$2.19

12

CUSHION | C,XC; OPT 10x30XC; OPT 10x30

09320-07001

$2.92
