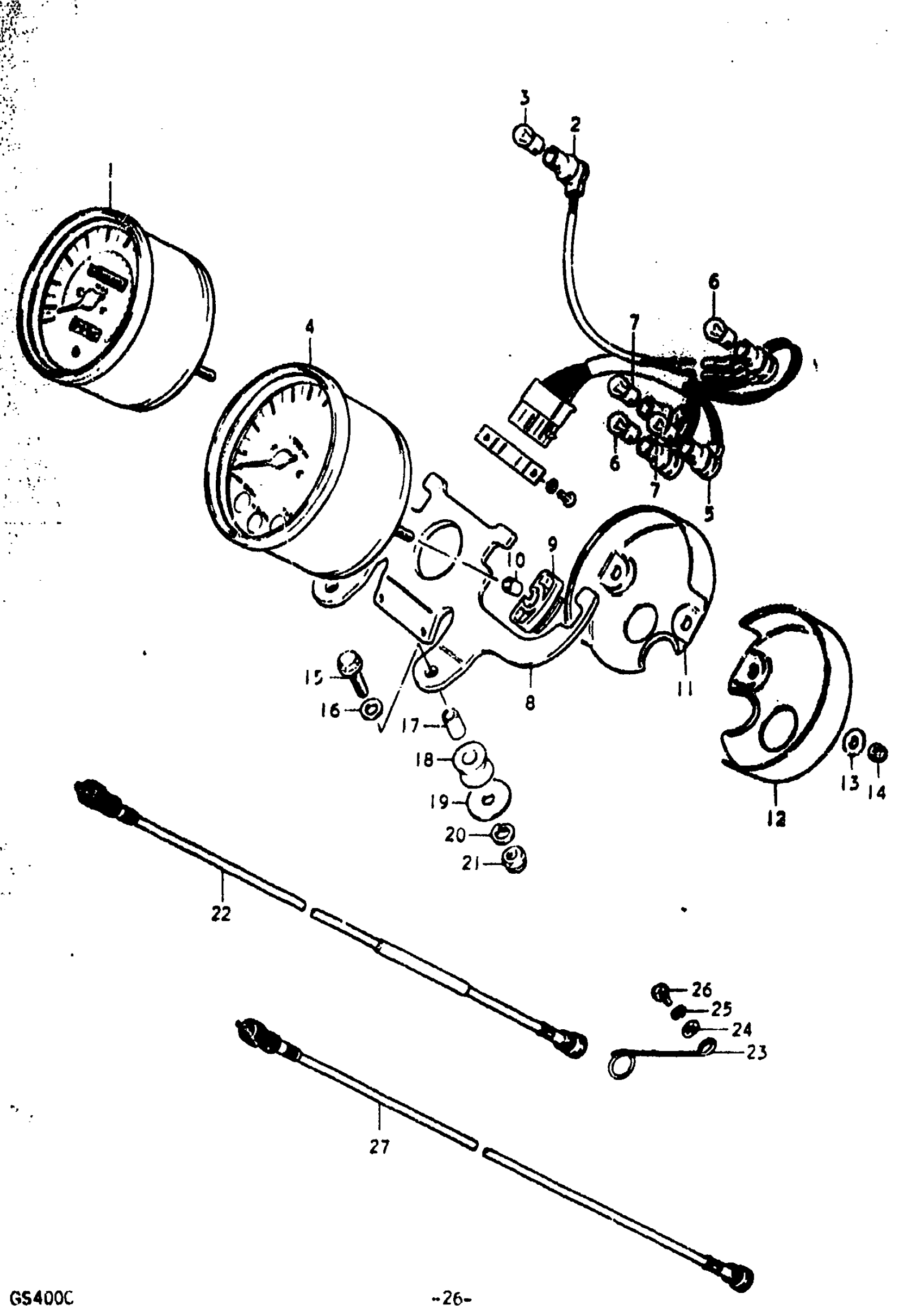

Suzuki GS400X (1978) SPEEDOMETER - TACHOMETER (GS400XC) Diagram

#

Description
Price

0

SPEEDOMETER / TACHOMETER ASSY | Includes Item(s) 1 - 14

34100-44030

Unavailable

1

SPEEDOMETER

34101-44030

Unavailable

2

SOCKET

34170-44620

Unavailable

3

BULB | 12V, 3.4W

09471-12001

$1.65

4

TACHOMETER

34201-44623

Unavailable

5

SOCKET

34270-44620

Unavailable

6

BULB | 12V, 3.4W

09471-12001

$1.65

7

BULB | 12V, 1.7W

09471-12004

$2.69

8

BRACKET

34950-44620

Unavailable

9

CUSHION

34955-44020

Unavailable

10

SPACER This part replaces 34972-44021.

34972-44022

Unavailable

11

UNDER COVER, SPEEDOMETER

34960-44020

Unavailable

12

UNDER COVER, TACHOMETER

34961-44020

Unavailable

13

WASHER (5.5X16X1.2) This part replaces 34181-30520.

09160-05037

$1.49

14

NUT This part replaces 34185-30520.

08313-1005B

$2.70

15

BOLT This part replaces 01517-06308.

01550-06307

$2.69

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13

17

SPACER (6.1X8X15.5) | 6.1x8x15.5 This part replaces 09180-06040.

09180-06251

$2.44

18

CUSHION

34956-15100

$3.71

19

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

21

.NUT This part replaces 08310-11068.

08310-00067

$2.13

22

CABLE,SPEEDOMET This part replaces 34910-44031.

34910-05311

$73.65

23

CLAMP

34938-37000

$3.73

24

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

25

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

26

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

27

CABLE,TACHOMETE This part replaces 34940-44032.

34940-37312

$51.10
