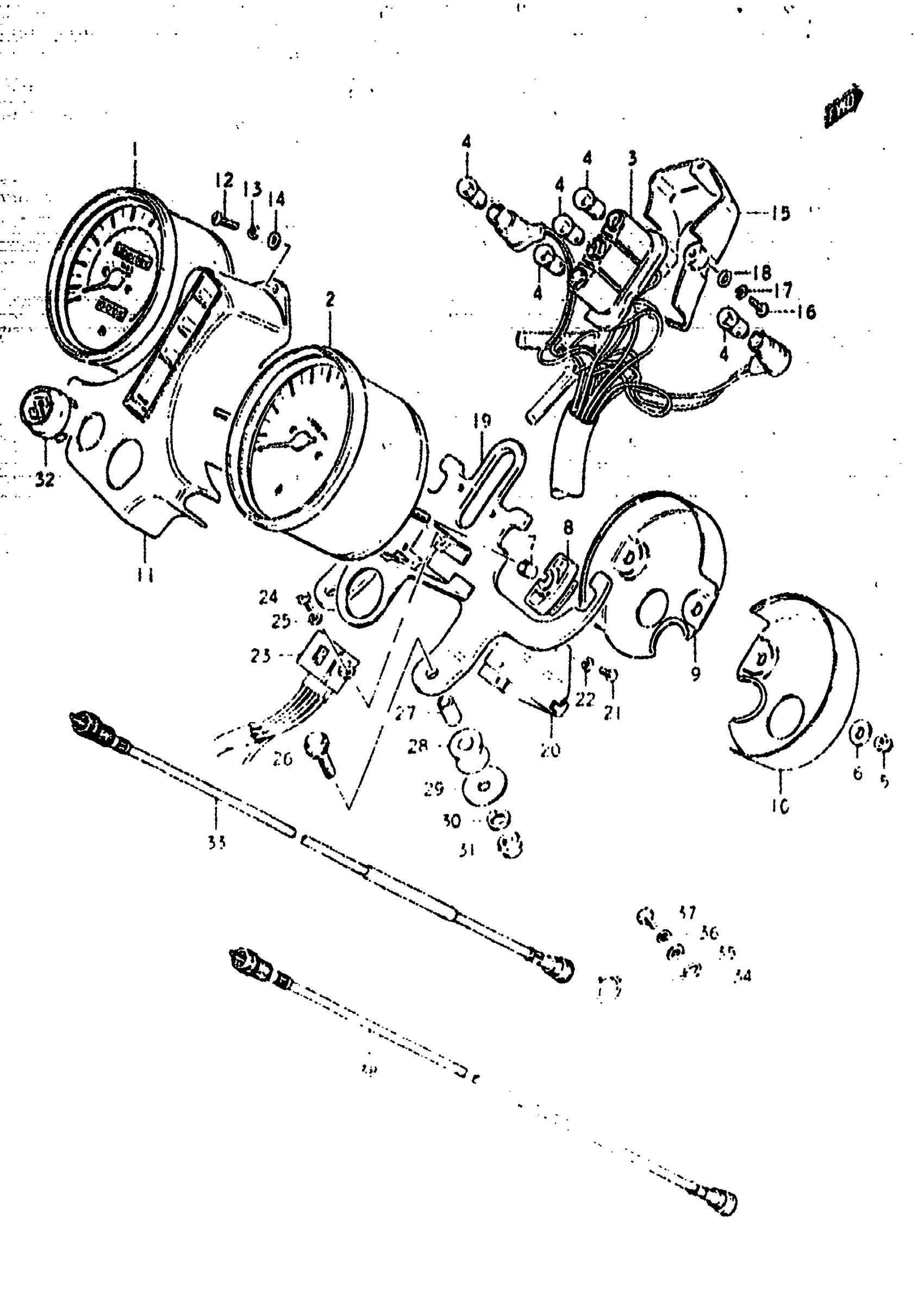

Suzuki GS400X (1978) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 25 This part replaces 34100-44010.

34100-44016

Unavailable

1

SPEEDOMETER

34110-44010

Unavailable

2

SOCKET

34210-44612

Unavailable

3

SOCKET

34173-44601

Unavailable

4

BULB | 12V, 3.4W

09471-12001

$1.65

5

NUT This part replaces 34185-45060.

08313-1005A

$1.93

6

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

7

SPACER This part replaces 34972-44021.

34972-44022

Unavailable

8

CUSHION

34955-44020

Unavailable

9

UNDER COVER, SPEEDOMETER This part replaces 34961-36321.

34961-36322

Unavailable

10

UNDER COVER, TACHOMETER This part replaces 34962-36321.

34962-36322

Unavailable

11

CASE, PILOT BULB

34980-44020

Unavailable

12

SCREW

09125-04011

Unavailable

13

LOCK WASHER

34997-44020

Unavailable

14

WASHER This part replaces 09160-04006.

08322-0104A

$1.91

15

CASE, PILOT CASE UNDER

34981-44020

Unavailable

16

SCREW

09125-04011

Unavailable

17

LOCK WASHER

34997-44020

Unavailable

18

WASHER This part replaces 09160-04006.

08322-0104A

$1.91

19

BRACKET

34950-44021

Unavailable

20

CLAMP, CORD

34954-44021

Unavailable

21

SCREW This part replaces 02111-04067.

02112-0406B

$1.55

22

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

23

INDICATOR, GEAR POSITION

36450-44020

Unavailable

24

SCREW This part replaces 02111-03067.

02112-0306B

$1.59

25

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

26

BOLT This part replaces 01524-06307.

01550-06307

$2.69

27

SPACER (6.1X8X15.5) This part replaces 09180-06040.

09180-06251

$2.44

28

CUSHION

34956-15100

$3.71

29

WASHER This part replaces 09160-06007.

09160-06084

$1.78

30

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

31

.NUT This part replaces 08310-11068.

08310-00067

$2.13

32

CAP

34995-31600

Unavailable

33

CABLE,SPEEDOMET This part replaces 34910-44031.

34910-05311

$73.65

34

CLAMP

34938-37000

$3.73

35

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

36

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

37

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

38

CABLE,TACHOMETE This part replaces 34940-44032.

34940-37312

$51.10
