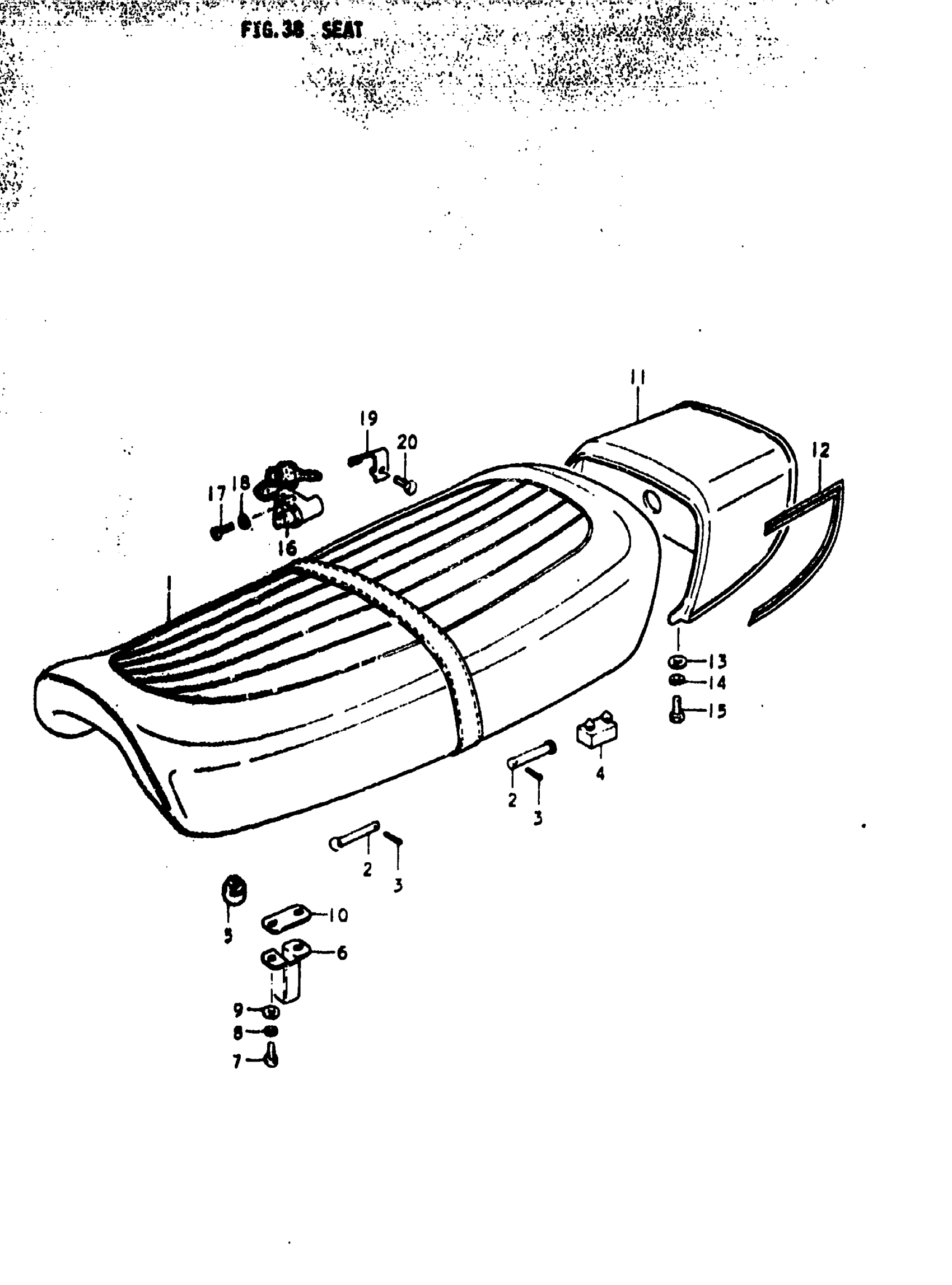

Suzuki GS400X (1978) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | C,XC This part replaces 45100-44001-865.

45100-44010-48H

Unavailable

2

PIN | C,XC

09200-06018

$2.06

3

.COTTER PIN | C,XC This part replaces 04111-20158.

04111-2015A

$1.49

4

CUSHION | C,XC

09321-08006

$2.90

5

CUSHION | C,XC

09321-10002

$2.22

6

STRIKER, SEAT LOCK | C,XC

45213-45000

Unavailable

7

BOLT | C,XC This part replaces 01107-06128.

01500-06127

$1.97

8

LOCK WASHER | C,XC This part replaces 08321-21068.

08321-01067

$2.13

9

WASHER | C,XC This part replaces 08322-21068.

08322-01067

$2.13

10

SHIM | C,XC

45217-45001

Unavailable

11

COVER SEAT TAIL | C This part replaces 45510-44000-03E.

45510-44001

Unavailable

11

COVER SEAT TAIL | C This part replaces 45510-44000-05N.

45510-44001

Unavailable

11

COVER SEAT TAIL | XC This part replaces 45510-44000-05J.

45510-44001

Unavailable

12

TAPE | C

68100-44821-63W

Unavailable

12

TAPE | C

68100-44821-63X

Unavailable

12

TAPE | XC

68100-44821-63Y

Unavailable

13

WASHER | C,XC

09169-06016

$1.65

14

LOCK WASHER | C,XC This part replaces 08321-21068.

08321-01067

$2.13

15

BOLT, CANISTER | C,XC This part replaces 01107-06168.

01500-06167

$1.97

16

LOCK SET, SEAT | C,XC This part replaces 95700-45812.

95700-45813

Unavailable

17

SCREW | C,XC This part replaces 02112-05128.

02112-05127

$1.97

18

LOCK WASHER | C,XC This part replaces 08321-21058.

08321-0105A

$1.84

19

SPRING, HELMET HOLDER | C,XC

95722-45000

Unavailable

20

BOLT | C,XC This part replaces 01104-05088.

01500-05087

$2.13
