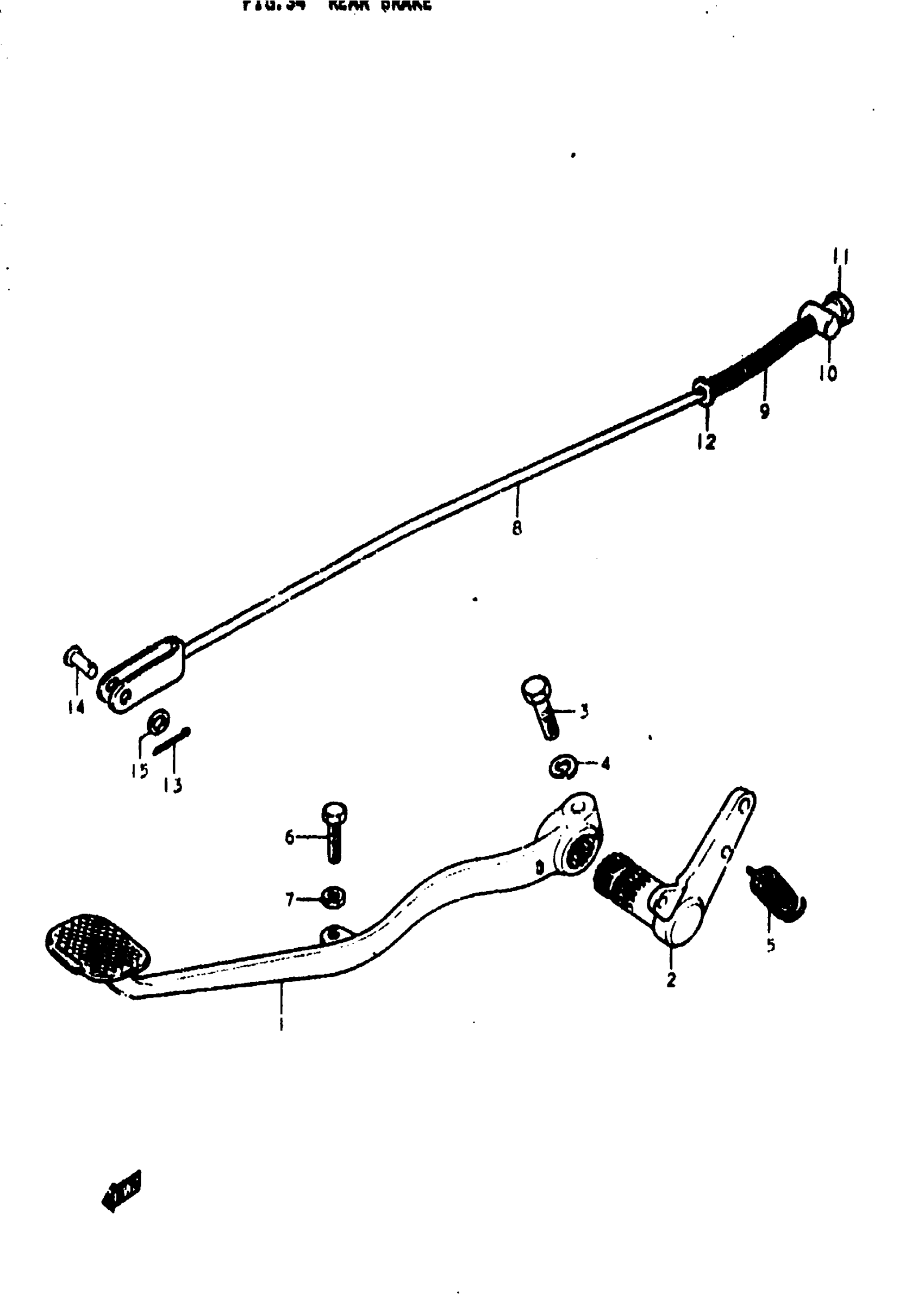

Suzuki GS400X (1978) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE | C,XC

43110-44000

Unavailable

2

ARM, BRAKE PEDAL ROD | C,XC

43120-44000

Unavailable

3

BOLT | C,XC This part replaces 01107-08258.

01500-08257

$2.50

4

.LOCK WASHER | C,XC This part replaces 08321-21088.

08321-01087

$2.13

5

SPRING | C,XC

09443-14013

$2.98

6

BOLT | C,XC This part replaces 01107-06208.

01500-06207

$2.28

7

.NUT | C,XC This part replaces 08310-11068.

08310-00067

$2.13

8

ROD ASSY, REAR BRAKE | C,XC; Includes Item(s) 9 - 15

43300-44000

Unavailable

9

SPRING | C,XC

09440-09004

$2.20

10

.PIN (13X18) | C,XC This part replaces 09209-13003.

09209-13018

$3.42

11

.NUT | C,XC This part replaces 09150-06001.

09150-06010

$3.10

12

WASHER | C,XC This part replaces 08322-21068.

08322-01067

$2.13

13

COTTER PIN | C,XC This part replaces 04111-20208.

04111-2020A

$1.49

14

PIN | C,XC

09200-06013

$2.00

15

WASHER | C,XC This part replaces 08322-21068.

08322-01067

$2.13
