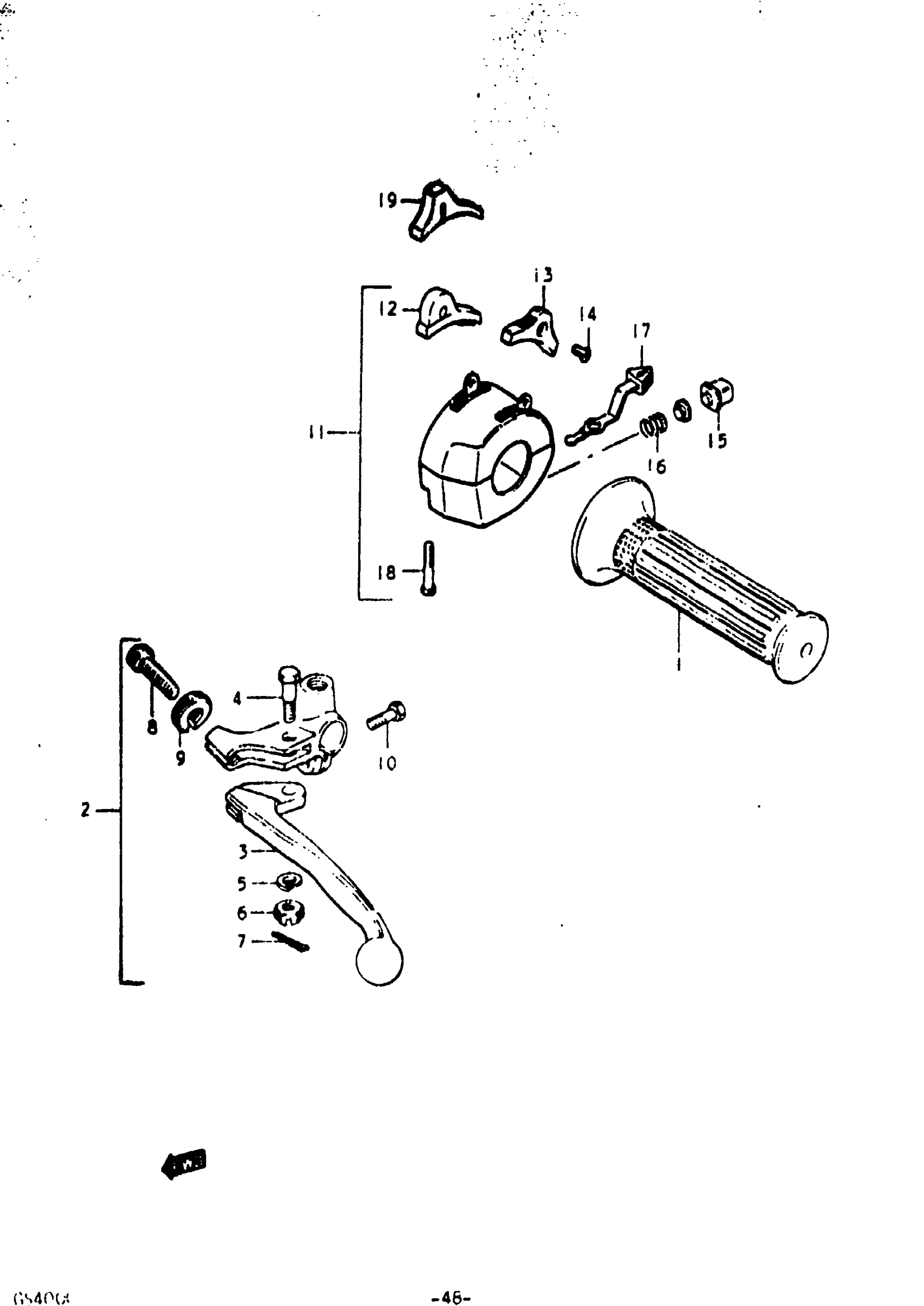

Suzuki GS400X (1978) LH HANDLE SWITCH Diagram

#

Description
Price

1

GRIP,L | C,XC This part replaces 57211-45020.

57211-45021

$11.44

2

LEVER ASSY,CLUT | C This part replaces 57500-45011.

57500-45021

Unavailable

2

LEVER ASSY, CLUTCH | XC; Includes Item(s) 3 - 10 This part replaces 57500-18013.

57500-30501

Unavailable

3

LEVER, CLUTCH | C,XC This part replaces 57620-45011.

57620-45010

Unavailable

4

BOLT | C,XC This part replaces 57431-11010.

57431-11013

$6.31

5

LOCK WASHER | C,XC This part replaces 08321-21068.

08321-01067

$2.13

6

NUT | C,XC

57433-11010

$5.64

7

PIN | C,XC This part replaces 04111-16158.

04111-1620A

$1.49

8

ADJUSTER, CABLE | C,XC

57441-11010

$5.62

9

NUT | C,XC

57442-11010

$2.79

10

BOLT | C,XC This part replaces 01107-06208.

01500-06207

$2.28

11

SWITCH ASSY, HANDLE LH | C,XC; Includes Item(s) 12 - 18 This part replaces 37400-45601.

37400-45603

Unavailable

12

KNOB, STOPPER | C,XC This part replaces 37414-45601.

37414-45602

Unavailable

13

KNOB, DIMMER SWITCH | C,XC This part replaces 37421-45011.

37421-45012

$6.17

14

SCREW | C,XC This part replaces 02122-03068.

02122-03067

$1.80

15

BUTION, HORN | C,XC

57371-45000

$4.52

16

SPRING | C,XC

57382-45000

$3.37

17

KNOB, TURN SIGNAL LAMP SWITCH | C,XC

37513-45011

$7.22

18

SCREW | C,XC This part replaces 02112-05258.

02112-05257

$1.49

19

KNOB, LIGHTING (OPT) | C,XC; OPT This part replaces 37411-45011.

37411-45012

$5.24
