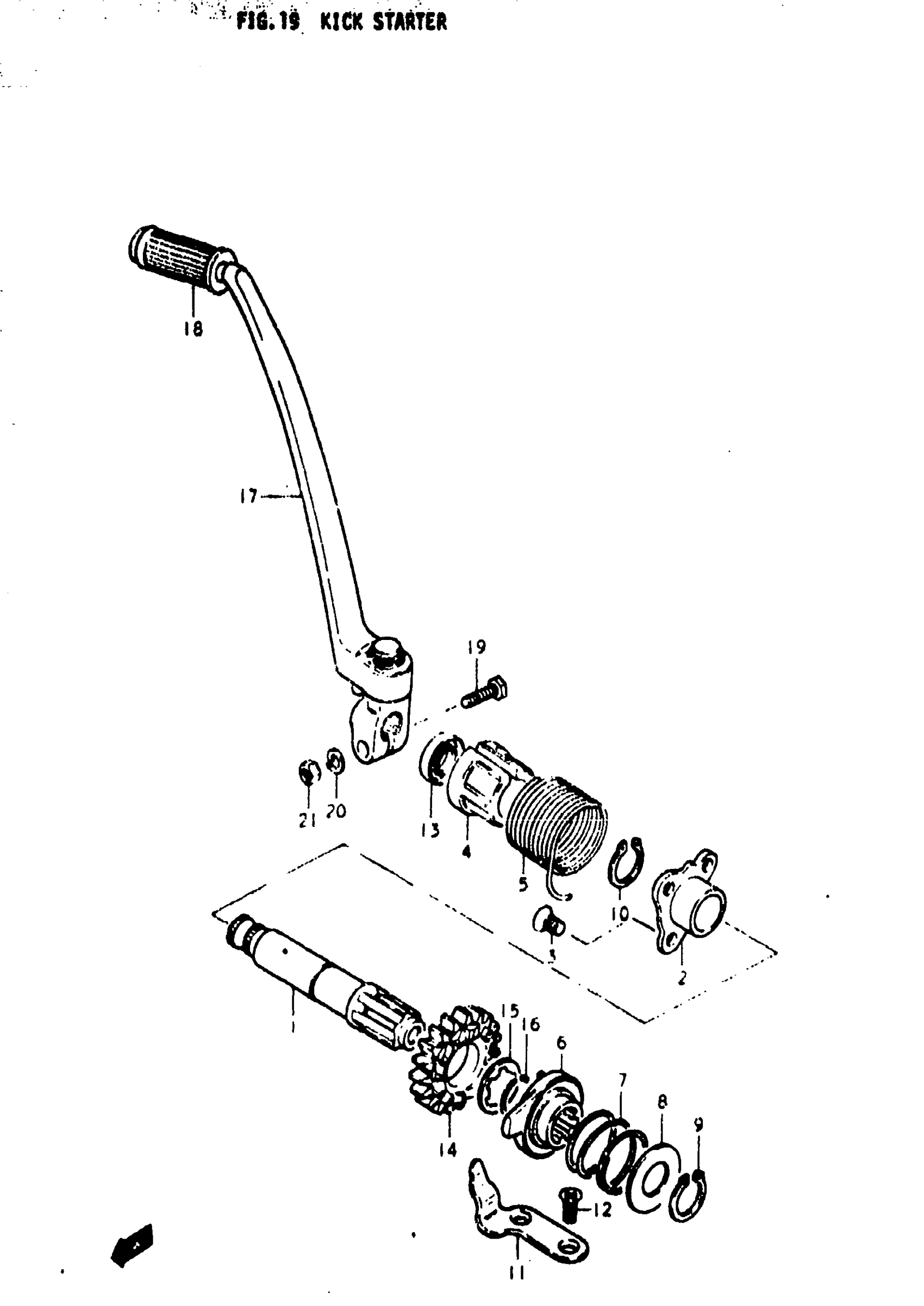

Suzuki GS400X (1978) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER | C,XC

26210-44000

Unavailable

2

HOLDER, SHAFT | C,XC

26215-44000

Unavailable

3

SCREW | C,XC This part replaces 02122-06128.

02122-06127

$1.84

4

GUIDL, SPRING | C,XC

26221-44000

Unavailable

5

SPRING | C,XC

09448-45010

Unavailable

6

STARTER, KICK | C,XC This part replaces 26231-30000.

26231-22A10

$63.88

7

SPRING | C,XC

09440-32002

$2.27

8

PLATE | C,XC; 17x34x1.5

08212-17342

Unavailable

9

CIRCLIP, LH | C,XC

09380-17001

$1.98

10

CIRCLIP, KICK START DRIVE GEAR | C,XC This part replaces 08331-11209.

08331-3120A

$2.03

11

GUIDE, STARTER | C,XC

26232-44000

Unavailable

12

SCREW | C,XC This part replaces 02122-06168.

02122-06167

$1.49

13

OIL SEAL | C,XC

09283-20031

$5.24

14

GEAR, KICK STARTER DRIVE | C,XC; NT:19

26240-45000

Unavailable

15

WASHER | C,XC

09167-22007

Unavailable

16

CIRCLIP | C,XC

09380-22003

$1.92

17

LEVER ASSY, KICK STARTER | C,XC; Includes Item(s) 18

26300-44001

Unavailable

18

RUBBER,KICK STA | C,XC This part replaces 26352-01000.

26352-01020

$3.25

19

BOLT, HANDLE HOLDER | C,XC This part replaces 01107-10358.

01500-1035B

$3.72

20

LOCK WASHER | C,XC This part replaces 08321-21108.

08321-01107

$1.84

21

NUT | C,XC This part replaces 08310-12108.

08310-00107

$2.19
